9-S41

ME8200, ME9000, WSM

ELECTRICAL SYSTEM

[8] TRAILER SOCKET

(1) Checking

Trailer Socket

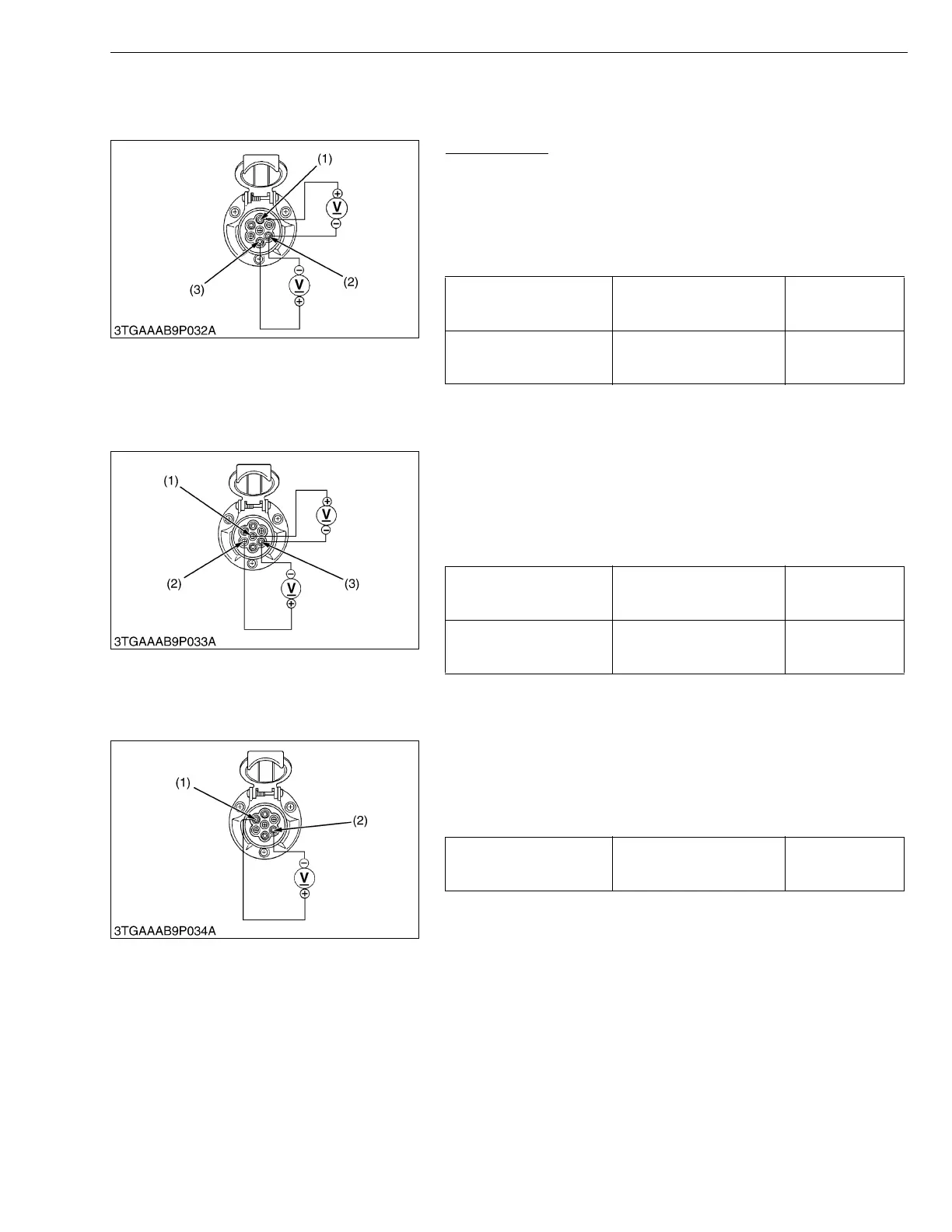

1) Turning Signal Terminals

1. Turn the main switch ON, and measure the voltage with voltmeter

across the 1 terminal (1) and 3 terminal (2), and across the 4

terminal (3) and 3 terminal (2).

2. If the voltage differs from the battery voltage, the wiring harness

or switches for turning signal are faulty.

W1025340

2) Tail Terminals

1. Turn the main switch ON, and measure the voltage with voltmeter

across the 7 terminal (1) and 3 terminal (3), and across the 5

terminal (2) and 3 terminal (3).

2. If the voltage differs from the battery voltage, the wiring harness

or switches for tail lights are faulty.

W1025660

3) Brake Light Terminal

1. Turn the main switch ON, and measure the voltage with voltmeter

across the 6 terminal (1) and 3 terminal (2).

2. If the voltage differs from battery voltage, the wiring harness or

switch for brake lights are faulty.

W1026040

Voltage

(Turning signal switch at L

or hazard switch at ON)

1 Terminal (Green / White) –

3 Terminal (Black)

Approx. battery

voltage

(Intermittently)

Voltage

(Turning signal switch at R

or hazard switch at ON)

4 Terminal (Red / White) –

3 Terminal (Black)

Approx. battery

voltage

(Intermittently)

(1) 1 Terminal

(2) 3 Terminal

(3) 4 Terminal

Voltage

(Head switch at ON, or

position switch at ON)

7 Terminal (Yellow / Blue) –

3 Terminal (Black)

Approx. battery

voltage

Voltage

(Head light switch at ON,

or position switch at ON)

5 Terminal (Blue / White) –

3 Terminal (Black)

Approx. battery

voltage

(1) 7 Terminal

(2) 5 Terminal

(3) 3 Terminal

Voltage

(When stepping the brake

pedal)

6 Terminal (Yellow / Black) –

3 Terminal (Black)

Approx. battery

voltage

(1) 6 Terminal (2) 3 Terminal
