3-M2
ME8200, ME9000, WSM
TRANSMISSION

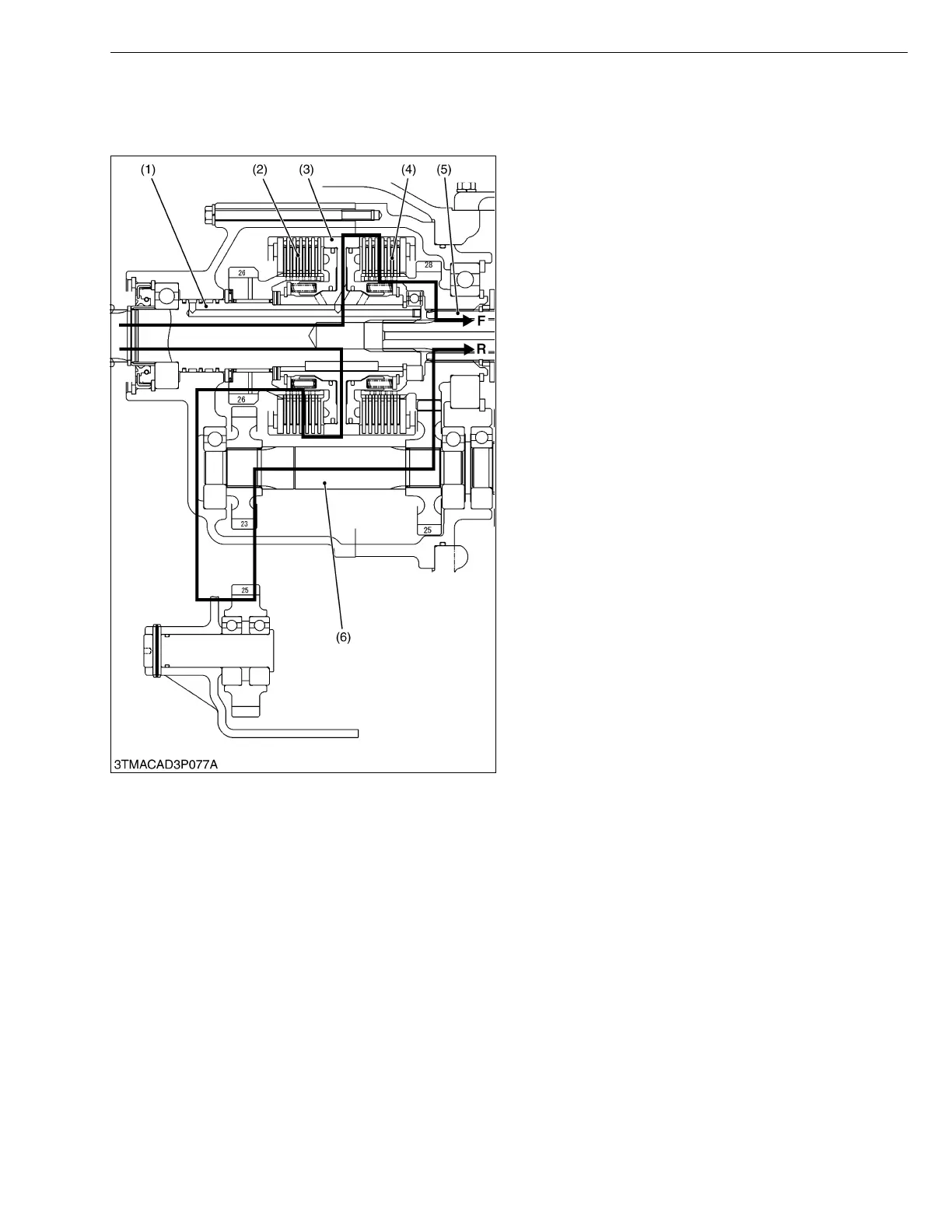

2. POWER TRAIN FOR TRAVELLING GEAR
[1] SHUTTLE SHIFT SECTION
W1012678
(1) Input Shaft
(2) Clutch Disc and Plate
(3) Clutch Body
(4) Clutch Disc and Plate
(5) 1st Shaft
(6) Shuttle Shaft
F : Forward
R : Reverse
