8-M24
ME8200, ME9000, WSM
HYDRAULIC SYSTEM
7. THREE POINT HYDRAULIC SYSTEM

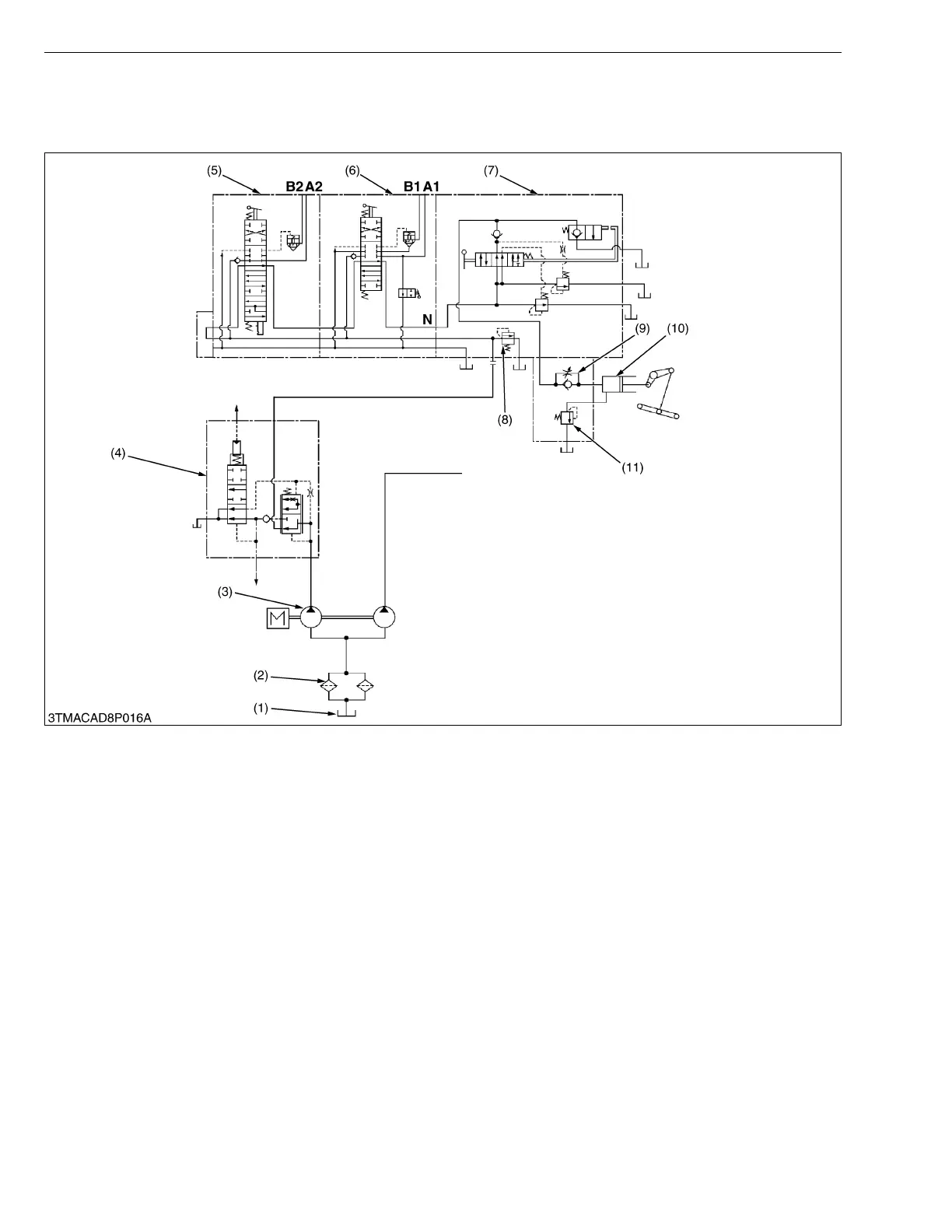

[1] HYDRAULIC CIRCUIT
1. When the engine is started, the hydraulic pump (3) is rotated to suck oil from transmission case (1) through the
suction pipe.
Supplied oil is filtered by the hydraulic oil filter cartridge (2).
2. Filtered oil is forced out by the hydraulic pump to the auxiliary control valve (5), (6) through the trailer brake valve
(4).
3. With the auxiliary control valve (5), (6) in neutral position, oil is channelled from “N” port to the control valve (7).
4. The hydraulic system has a relief valve (8) which restricts the maximum pressure in the circuit.
The hydraulic cylinder (10) has a cylinder safety valve (11) to relieve shock pressure due to heavy implement
bounce.
5. The control valve (7) is actuated by the mechanical linkage for “Position control” or “Draft control” or both “Mix
control” (combining position control with draft control).
6. These tractors have a single / double acting auxiliary control valve (6) and a double acting (floating with detent)
auxiliary control valve (5) as standard equipment.
(1) Oil Tank (Transmission Case)
(2) Hydraulic Oil Filter Cartridge
(3) Hydraulic Pump
(4) Trailer Brake Valve
(5) Auxiliary Control Valve
(6) Auxiliary Control Valve
(7) Control Valve
(8) Relief Valve
(9) Lowering Speed Adjusting
Valve
(10) Hydraulic Cylinder
(11) Cylinder Safety Valve
A1, A2 : To Implement Cylinder
B1, B2 : To Implement Cylinder
N : N Port
To Next Page
