wsm ME8200 - Three Point Hydraulic System

8-S23
ME8200, ME9000, WSM
HYDRAULIC SYSTEM
Hydraulic Flow Test (ME9000) (Continued)
Condition
• Engine speed ............. Approx. 2600 min
-1
(rpm)
• Rated pressure .......... 19.1 MPa (195 kgf/cm
2
, 2773 psi)
• Oil temperature .......... 50 to 60 °C
122 to 140 °F
W1021357
(8) Three Point Hydraulic System

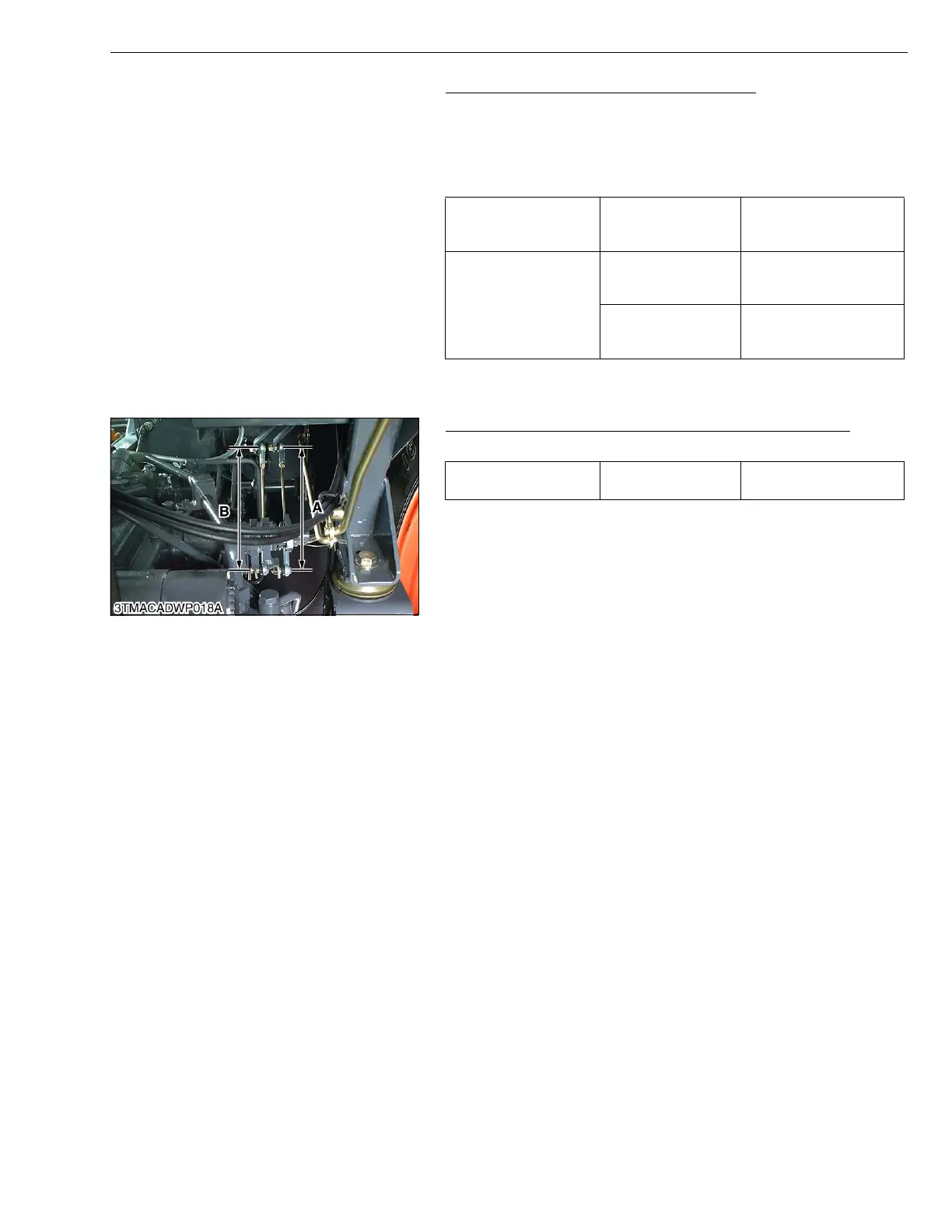

Adjusting the Position Rod and Draft Rod (Cabin Type)
1. Be sure to adjust the position rod length A and draft rod length B.
W1021502
Hydraulic pump delivery
at no pressure
Factory spec.
Above 62.5 L/min
16.5 U.S.gals/min
13.8 Imp.gals/min
Hydraulic pump delivery
at rated pressure
Factory spec.
59.1 L/min
15.6 U.S.gals/min
13.0 Imp.gals/min
Allowable limit
48.2 L/min
12.7 U.S.gals/min
10.6 Imp.gals/min
Position rod length (A)
and draft rod length (B)
Factory spec.
Approx. 264.0 mm
10.39 in.
KiSC issued 03, 2007 A
