4-S8
ME8200, ME9000, WSM
REAR AXLE
(2) Separating Rear Axle Case from Transmission Case (CABIN Type)
Draining Transmission Fluid
1. See page 4-S4.
W1019328
Draining Fuel (When Reassembling Left Side)
1. See page 4-S4.
W1019428

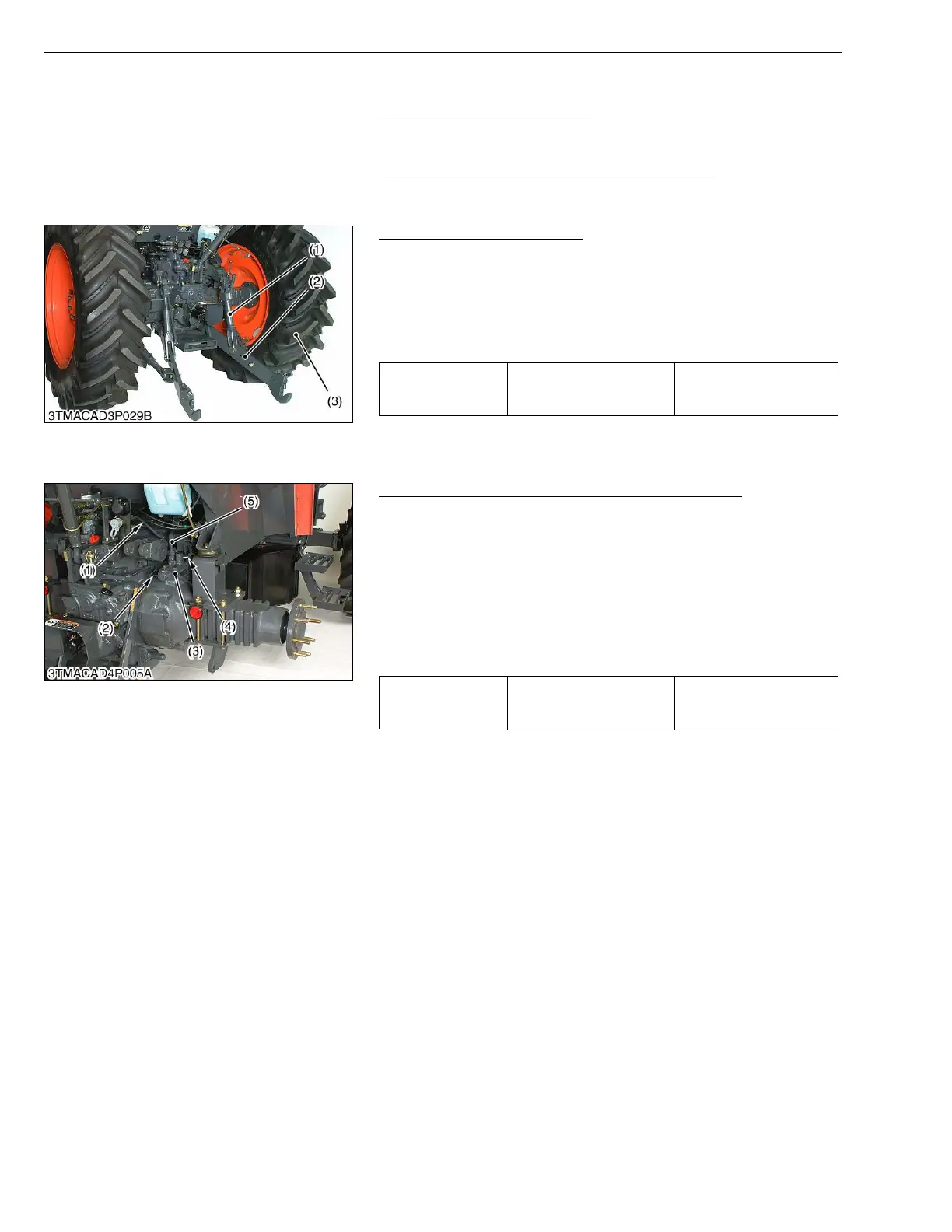

Lower Link and Rear Wheel
1. Remove the lift rod (1).
2. Remove the lower link (2) with stabilizer.
3. Place disassembling stand under the transmission case.
4. Remove the rear wheel (3).
5. Remove the fuel tank (when separating left side).
(When reassembling)
W1019485
Trailer Brake Valve (When Separating Right Side)
1. Disconnect the delivery pipe (5).
2. Disconnect the other delivery pipe coming from the hydraulic
pump.
3. Disconnect the trailer brake pipe (1).
4. Remove the pilot pipe (2) and drain pipe (4).
5. Remove the trailer brake valve (3).
(When reassembling)
• Confirm oil does not leak from the pilot pipe.
• Bleed the air from brake oil line.
W1019797
Tightening torque Rear wheel mounting nut
260 to 304 N·m
26.5 to 31.0 kgf·m
192 to 224 lbf·ft
(1) Lift Rod
(2) Lower Link
(3) Rear Wheel
Tightening torque Pilot pipe nut
16 to 24 N·m
1.63 to 2.45 kgf·m
11.8 to 17.7 lbf·ft
(1) Trailer Brake Pipe
(2) Pilot Pipe
(3) Trailer Brake Valve
(4) Drain Pipe
(5) Delivery Pipe
To Next Page
