wsm ME8200 User Manual

9-S37
ME8200, ME9000, WSM
ELECTRICAL SYSTEM

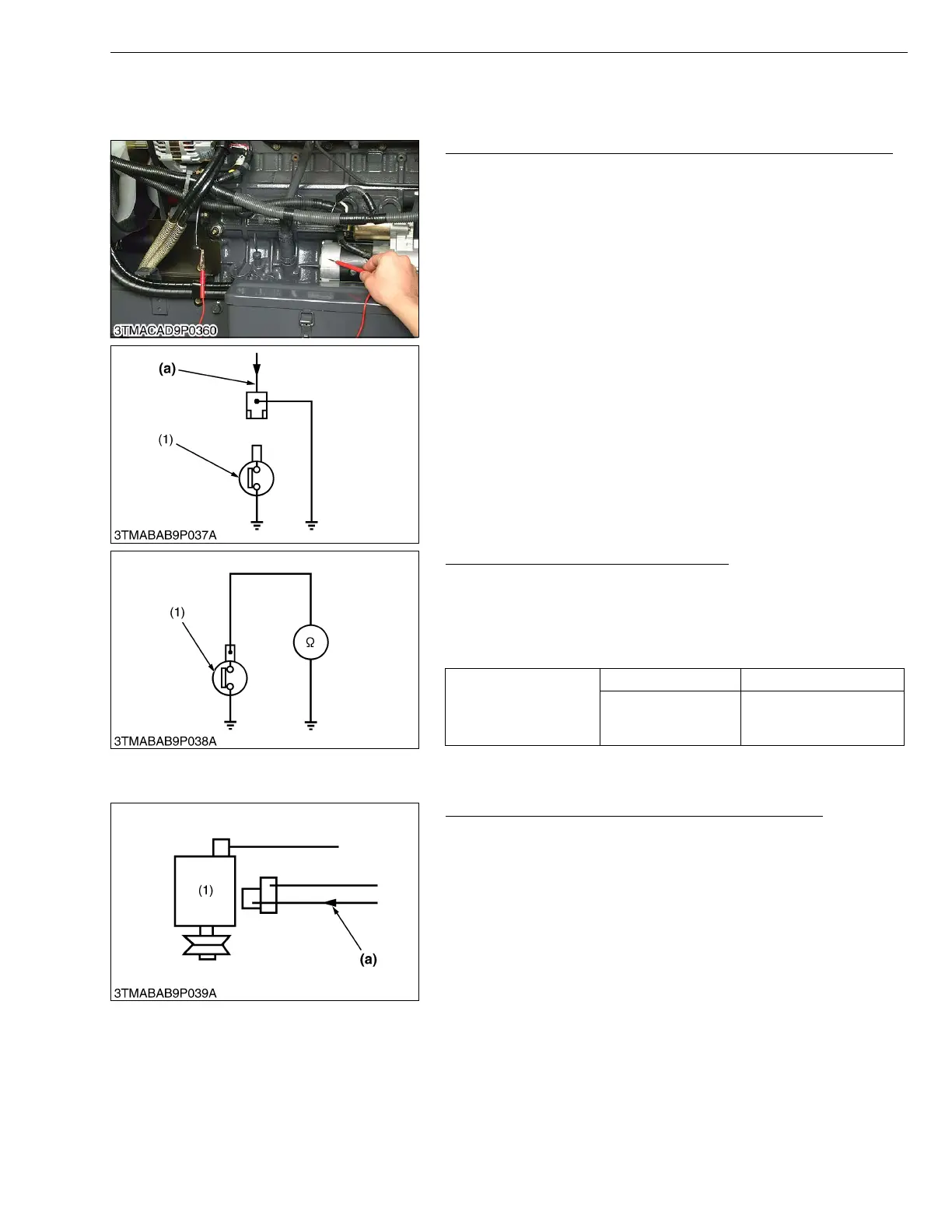

[6] WARNING LAMP
(1) Checking
Engine Oil Pressure Switch Panel Board and Wiring Harness
1. Disconnect the lead from the engine oil pressure switch (1) after
turning the main switch OFF.
2. Turn the main switch ON and connect a jumper lead from the
lead to the chassis.
3. If the engine oil pressure indicator lamp does not light, the panel
board circuit or the wiring harness is faulty.
W1025954
Engine Oil Pressure Switch Continuity
1. Measure the resistance with an ohmmeter across the switch
terminal and the chassis.
2. If 0 ohm is not indicated in the normal state, the switch is faulty.
3. If infinity is not indicated at pressure over 4.9 kPa (0.5 kgf/cm
2
, 7
psi), the switch is faulty.
W1026084
Charging Circuit (Panel Board and Wiring Harness)
1. Disconnect the 2P connector from the alternator after turning the
main switch OFF.
2. Turn the main switch ON and connect a jumper lead from the
wiring harness connector terminal WR to the chassis.
3. If the charge lamp does not light, the panel board circuit,
alternator, wiring harness, or fuse is fault.
W1026253
(1) Engine Oil Pressure Switch (a) From Oil Pressure Lamp
Resistance
(Switch terminal –
Chassis)
In normal state 0 Ω
At pressure over
approx. 4.9 kPa
(0.5 kgf/cm
2
, 7 psi)
Infinity
(1) Engine Oil Pressure Switch
(1) Alternator (a) From Charge Lamp
KiSC issued 03, 2007 A
