10-S29
ME8200, ME9000, WSM
CABIN

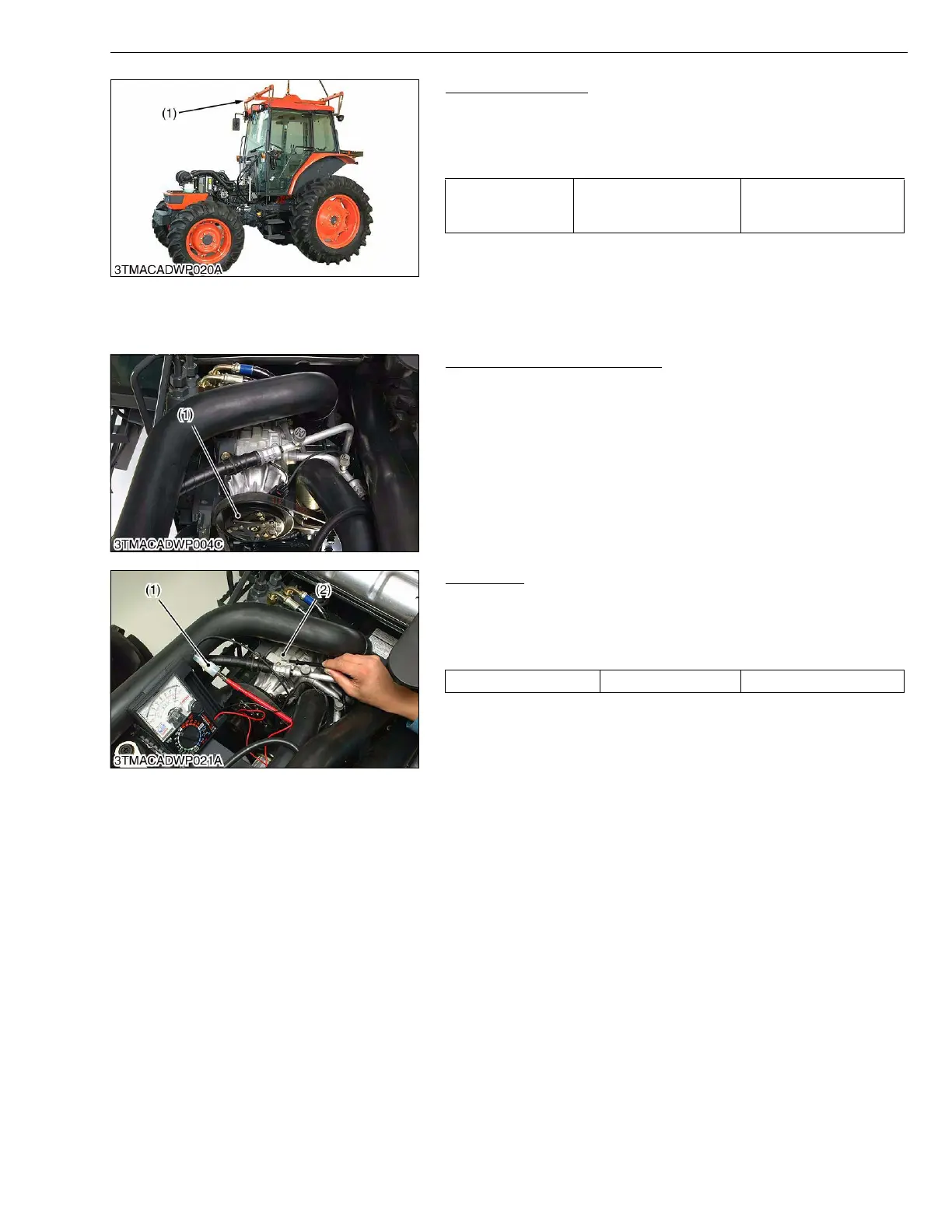

Dismounting Cabin
1. Set the cabin dismounting tool (1).
2. Remove the cabin mounting bolts and nuts.
3. Dismounting the cabin from tractor body.
(When reassembling)
W1021368
[2] COMPRESSOR
(1) Checking
Operation of Magnetic Clutch
1. Start the engine.
2. Check whether abrasion of abnormal noise is heard when only
the magnetic clutch pulley is running while the A/C switch is
turned OFF.
3. Check that the magnetic clutch (1) does not slip when the A/C
switch and blower switch are turned ON (when the air conditioner
is in operation).
4. If anything abnormal is found, repair or replace.
W1021678
Stator Coil
1. Measure the resistance of the stator coil with an ohmmeter
across the 1P connector of magnetic clutch and stator body.
2. If the measurement is not within the factory specifications,
replace the stator coil.
W1021833
Tightening torque
Cabin mounting screws
and nuts
123.6 to 147.1 N·m
12.6 to 15.0 kgf·m
91.1 to 108.5 lbf·ft
(1) Dismounting Tool
(1) Magnetic Clutch
Stator coil resistance Factory spec. 3.0 to 3.4 Ω
(1) 1P Connector (2) Stator Body
