2-S4
ME8200, ME9000, WSM
CLUTCH
4. CHECKING, DISASSEMBLING AND SERVICING
[1] TRAVELLING CLUTCH
(1) Checking and Adjusting

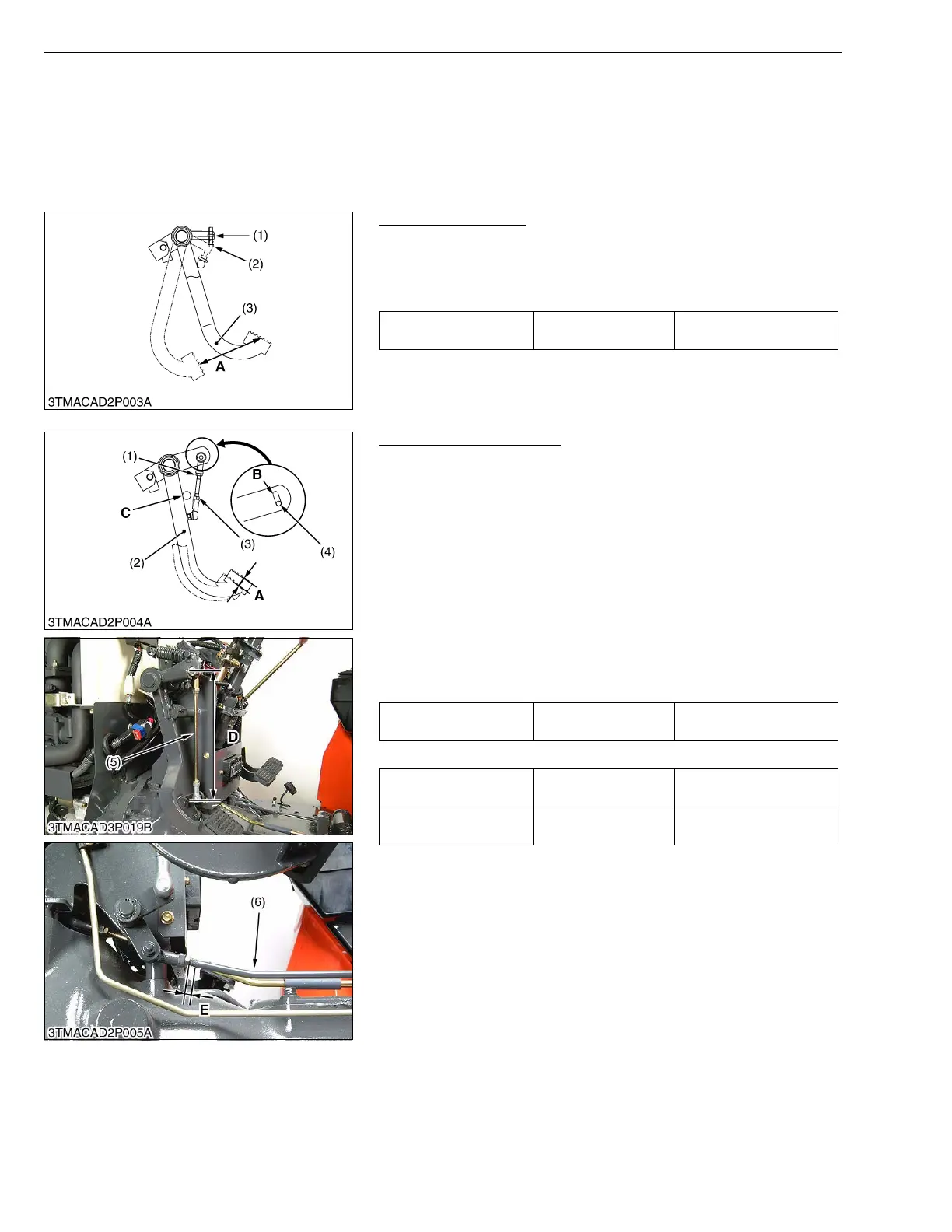

(A) Clutch Pedal (ROPS Type)
Clutch Pedal Stroke
1. Stop the engine and remove the key.
2. Measure the clutch pedal stroke A.
3. If the measurement is not within the factory specifications, adjust
with stopper bolt (2).
W1011682
Clutch Pedal Free Travel
NOTE
■
• Before checking the clutch pedal free travel, be sure to
adjust the pedal stroke.
1. Make sure that clutch pedal is contact with frame C and upper rod
end of turnbuckle (4) is located on the bottom of hole B when the
pedal is released.
2. If the clutch pedal or turnbuckle is out of above condition, adjust
with turnbuckle.
3. Measure the clutch pedal free travel A.
4. If adjustment is needed, change the length of turnbuckle of clutch
rod 1 so that the free travel becomes 15.0 to 25.0 mm (0.59 to
0.98 in.).
5. After adjustment is completed secure the lock nut of turnbuckle.
(Reference)
W1011876
Total stroke A Factory spec.
165 to 170 mm
6.5 to 6.7 in.
(1) Lock Nut 1
(2) Stopper Bolt
(3) Clutch Pedal
A : Pedal Stroke
Clutch pedal free travel Factory spec.
15.0 to 25.0 mm
0.59 to 0.98 in.
Length of clutch rod 1
(D)
Factory spec.
184 mm
7.20 in.
Length of clutch rod 2
(E)
Factory spec.
8.0 mm
0.43 in.
(1) Lock Nut 1
(2) Clutch Pedal
(3) Lock Nut 2
(4) Turnbuckle
(5) Clutch Rod 1
(6) Clutch Rod 2
A : Free Travel
B : Hole
C : Frame
D : Length of Clutch Rod 1
E : Length of Clutch Rod 2
KiSC issued 03, 2007 A
