wsm ME8200 User Manual

7-S5
ME8200, ME9000, WSM
STEERING

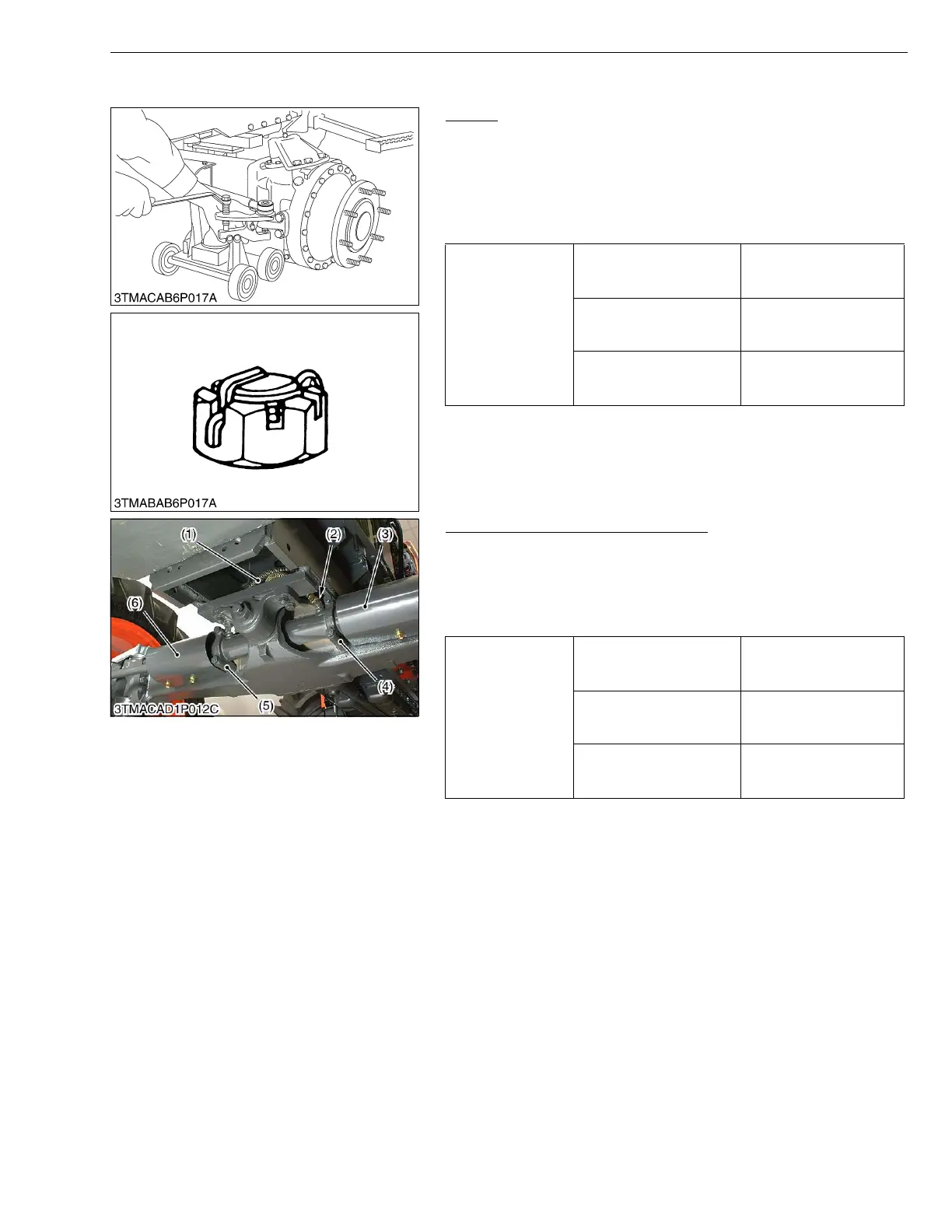

(3) Removing Steering Cylinder
Tie-rod
1. Pull out the cotter pin and remove the tie-rod end slotted nuts.
2. Remove the tie-rod with a tie-rod end lifter (Code No. 07909-
39051).
(When reassembling)
• Replace cotter pin with a new one.
• Bend the cotter pin as shown in the figure.
W1012657
Power Steering Hoses and Cylinder
1. Remove the cylinder cover (3), (6).
2. Disconnect the power steering hoses (1), (2).
3. Remove the cylinder bracket (4), (5).
4. Take out the cylinder.
(When reassembling)
W1012855
[3] SERVICING
• Refer to checking "Steering Cylinder" in "8. HYDRAULIC SYSTEM" section.
Tightening torque
Tie-rod end slotted nut
156.9 to 176.5 N·m
16.0 to 18.0 kgf·m
115.7 to 130.2 lbf·ft
Tie-rod joint lock nut
166.7 to 196.1 N·m
17.0 to 20.0 kgf·m
123.0 to 144.7 lbf·ft
Cylinder cover mounting
screw
48.1 to 55.9 N·m
4.9 to 5.7 kgf·m
35.4 to 41.2 lbf·ft
Tightening torque
Power steering hose
retaining nut
24.5 to 29.4 N·m
2.5 to 3.0 kgf·m
18.1 to 21.7 lbf·ft
Cylinder cover mounting
screw
48.1 to 55.9 N·m
4.9 to 5.7 kgf·m
35.4 to 41.2 lbf·ft
Cylinder bracket mounting
screw
123.6 to 147.1 N·m
12.6 to 15.0 kgf·m
91.1 to 108.5 lbf·ft
(1) Power Steering Hose
(2) Power Steering Hose
(3) Cylinder Cover
(4) Cylinder Bracket
(5) Cylinder Bracket
(6) Cylinder Cover
KiSC issued 03, 2007 A
