4-S4
ME8200, ME9000, WSM
REAR AXLE
4. CHECKING, DISASSEMBLING AND SERVICING
[1] DISASSEMBLING AND ASSEMBLING
(1) Separating Rear Axle Case from Transmission Case (ROPS Type)

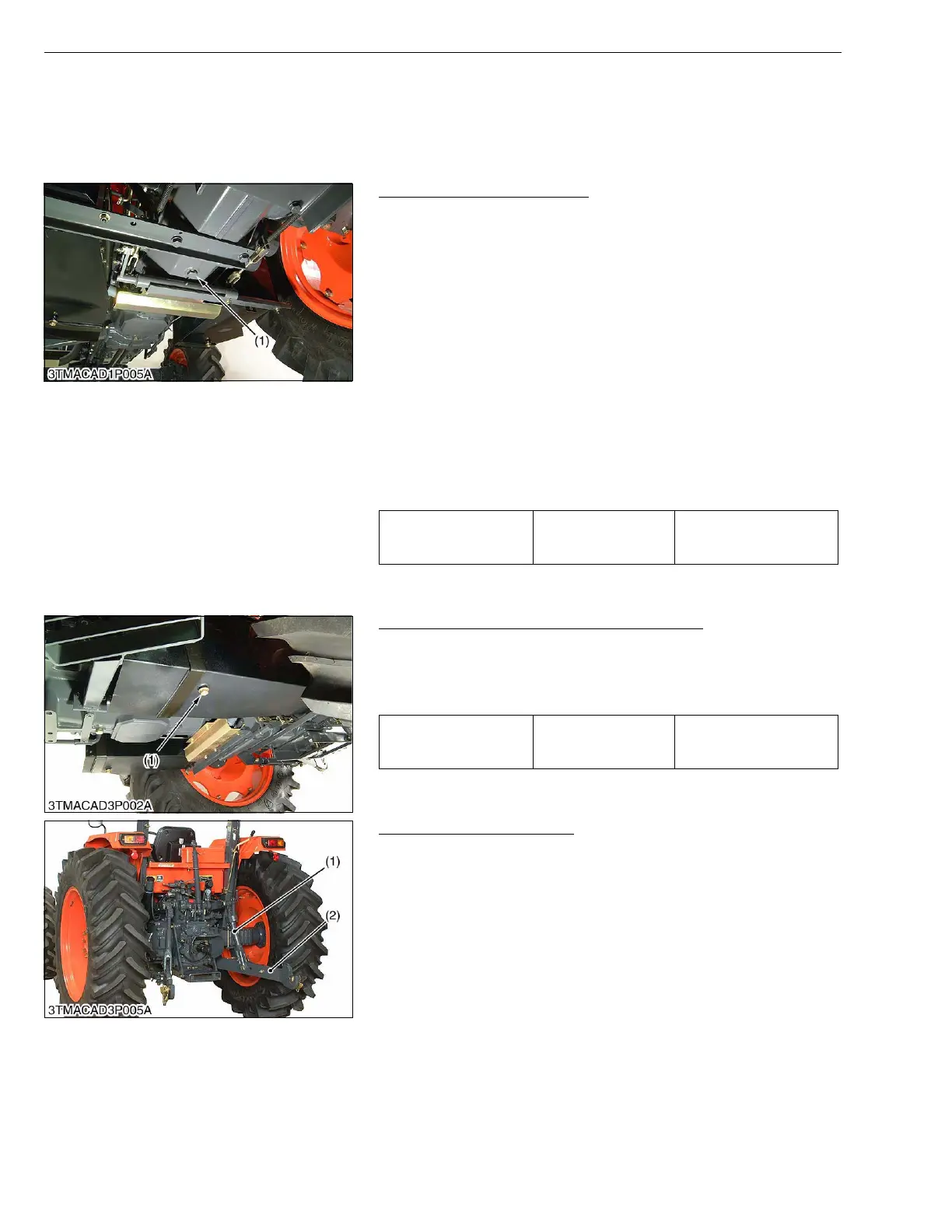

Draining Transmission Fluid
1. Place an oil pan underneath the transmission case.
2. Remove the drain plugs (1).
3. Drain the transmission fluid.
4. Reinstall the drain plugs (1).
(When reassembling)
• Fill up from filling port after removing the filling plug until reaching
the gauge.
• After running the engine for few minutes, stop it and check the
fluid level again, add the fluid to prescribed level if it is not correct
level.
• Use only KUBOTA SUPER UDT fluid. Use of other fluids
may damage the transmission or hydraulic system.
• Refer to “LUBRICANTS, FUEL AND COOLANT” (See page
G-8.).
• Do not mix difference brands oil together.
W1011707
Draining Fuel (When reassembling left side)
1. Place oil pans under the fuel tank.
2. Remove the drain plug (1).
3. Drain the fuel.
4. Reinstall the drain plug (1).
W1012013
Lift Rods and Lower Links
1. Remove the lift rods (1).
2. Remove the lower links (2) with stabilizer.
W1012274
Transmission fluid Capacity
55.0 L
58.1 U.S.qts
48.4 Imp.qts
(1) Drain Plug
Fuel Capacity
90 L
23.8 U.S.gals
19.8 Imp.gals
(1) Drain Plug
(1) Lift Rod (2) Lower Link
To Next Page
