6-S8
ME8200, ME9000, WSM
FRONT AXLE

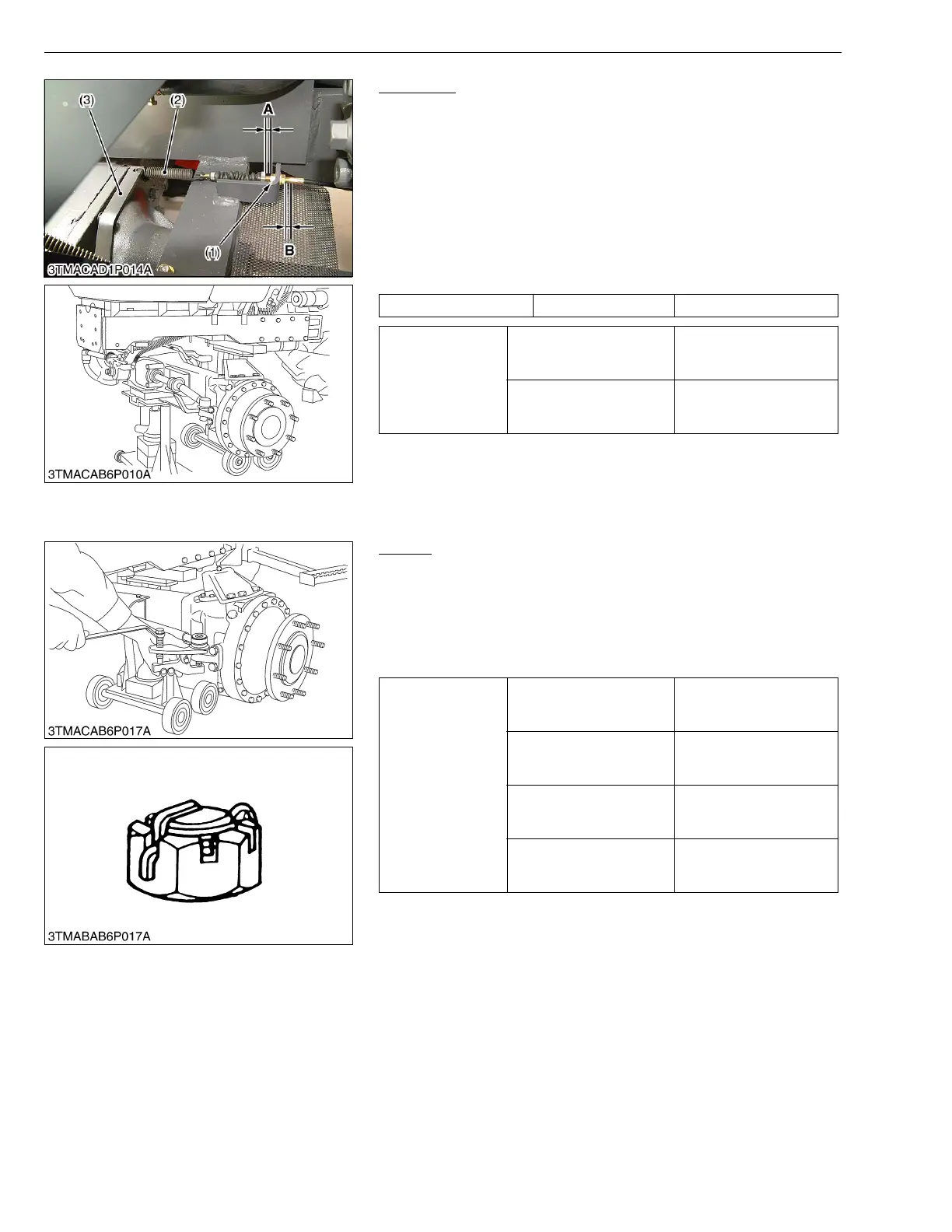

Front Axle
1. Place a disassembling stand under the front axle case and
support it with a jack.
2. Loosen the lock nut (1) and remove the spring (2).
3. Remove the bracket (front) mounting screws and nuts.
4. Remove the bracket (rear) mounting screws and nuts.
5. Separate the front axle from front axle bracket.
(When reassembling)
• Be sure to adjust the thread length of A and B.
IMPORTANT■
• Be sure to adjust the front axle pivot.
W1025394
(2) Disassembling Front Axle
Tie-rod
1. Pull out the cotter pin and remove the tie-rod end slotted nuts.
2. Remove the tie-rod with a tie-rod end lifter (Code No. 07909-
39051).
(When reassembling)
• Replace cotter pin with a new one.
• Bend the cotter pin as shown in the figure.
W1027740
Thread length A and B Factory spec. A = B
Tightening torque
Bracket mounting nut
123.6 to 147.1 N·m
12.6 to 15.0 kgf·m
91.1 to 108.5 lbf·ft
Bracket mounting screw
166.7 to 196.1 N·m
17.0 to 20.0 kgf·m
123.0 to 144.7 lbf·ft
(1) Lock Nut
(2) Spring
(3) Differential Lock Lever
Tightening torque
Tie-rod end slotted nut
156.9 to 176.5 N·m
16.0 to 18.0 kgf·m
115.7 to 130.2 lbf·ft
Tie-rod joint lock nut
166.7 to 196.1 N·m
17.0 to 20.0 kgf·m
123.0 to 144.7 lbf·ft
Knuckle arm mounting
screw (M12)
77.5 to 90.2 N·m
7.9 to 9.2 kgf·m
57.1 to 66.5 lbf·ft
Knuckle arm mounting
screw (M14)
123.6 to 147.1 N·m
12.6 to 15.0 kgf·m
91.1 to 108.5 lbf·ft
KiSC issued 03, 2007 A
