10-M4
ME8200, ME9000, WSM
CABIN
[3] ELECTRICAL SYSTEM

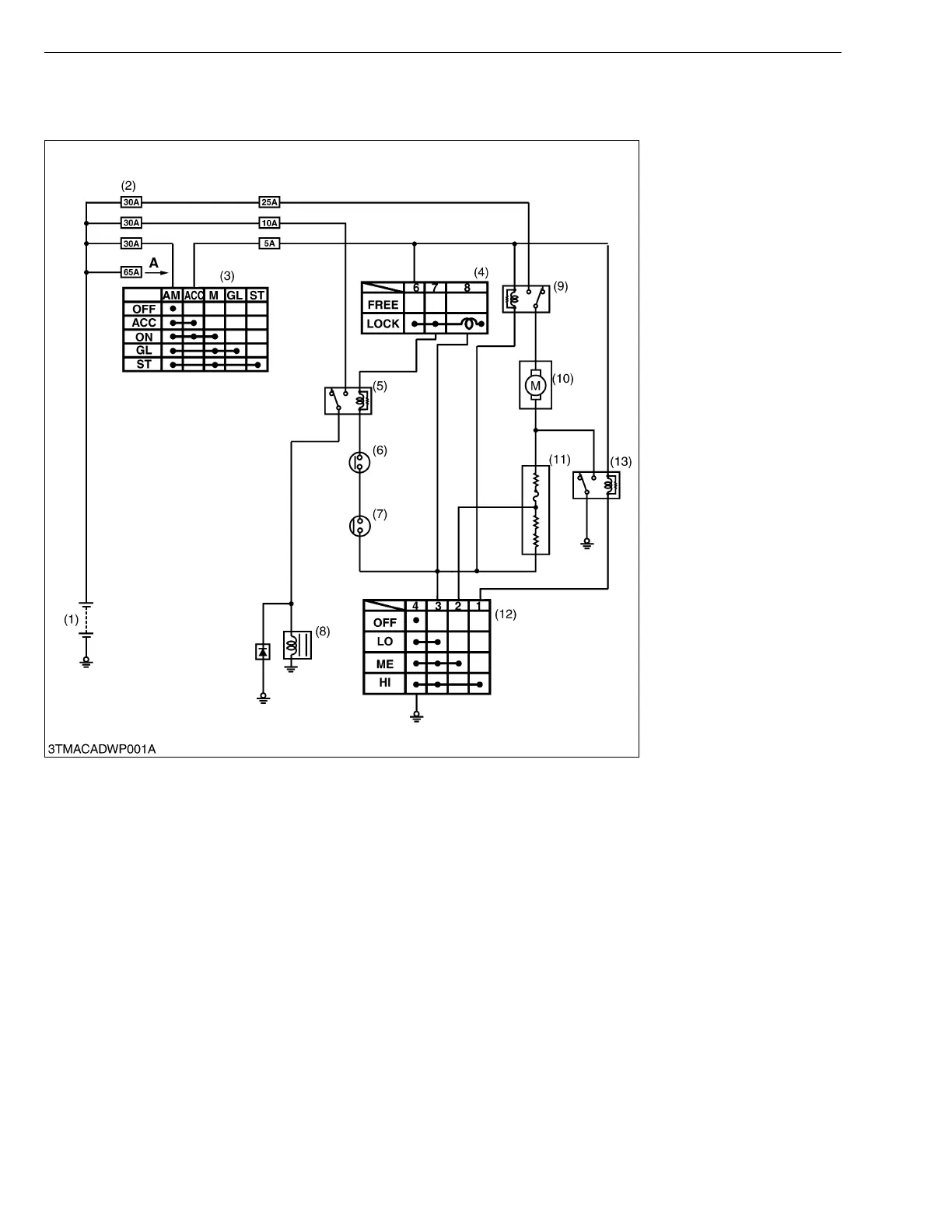

(1) Electrical Circuit
W1013755
The process of magnetic clutch being engaged is shown below.
Main Switch (3) ON → A/C Switch (4) ON → Blower Switch (12) ON (Low, medium or High) → Compressor Relay
(5) ON → Thermo Switch (6) ON (the thermostat temperature is more than 4 °C (39.2 °F)) → A/C Pressure Switch (7)
ON (if refrigerant pressure is between 0.21 MPa (2.1 kgf/cm
2
, 30 psi) and 265 MPa (27 kgf/cm
2
, 384 psi) → Magnetic
Clutch of Compressor Engaged.
(1) Battery
(2) Slow Blow Fuse
(3) Main Switch
(4) A/C Switch (Air Conditioner)
(5) Compressor Relay
(6) Thermo Switch
(7) A/C Pressure Switch
(8) Compressor
(9) A/C Main Relay
(10) Blower Motor
(11) Blower Resistance
(12) Blower Switch
(13) Blower High Relay
A : To Alternator
To Next Page
