HYDRAULIC SYSTEM
(5) Steering Controller and Steering Cylinder
(A) Relief Valve

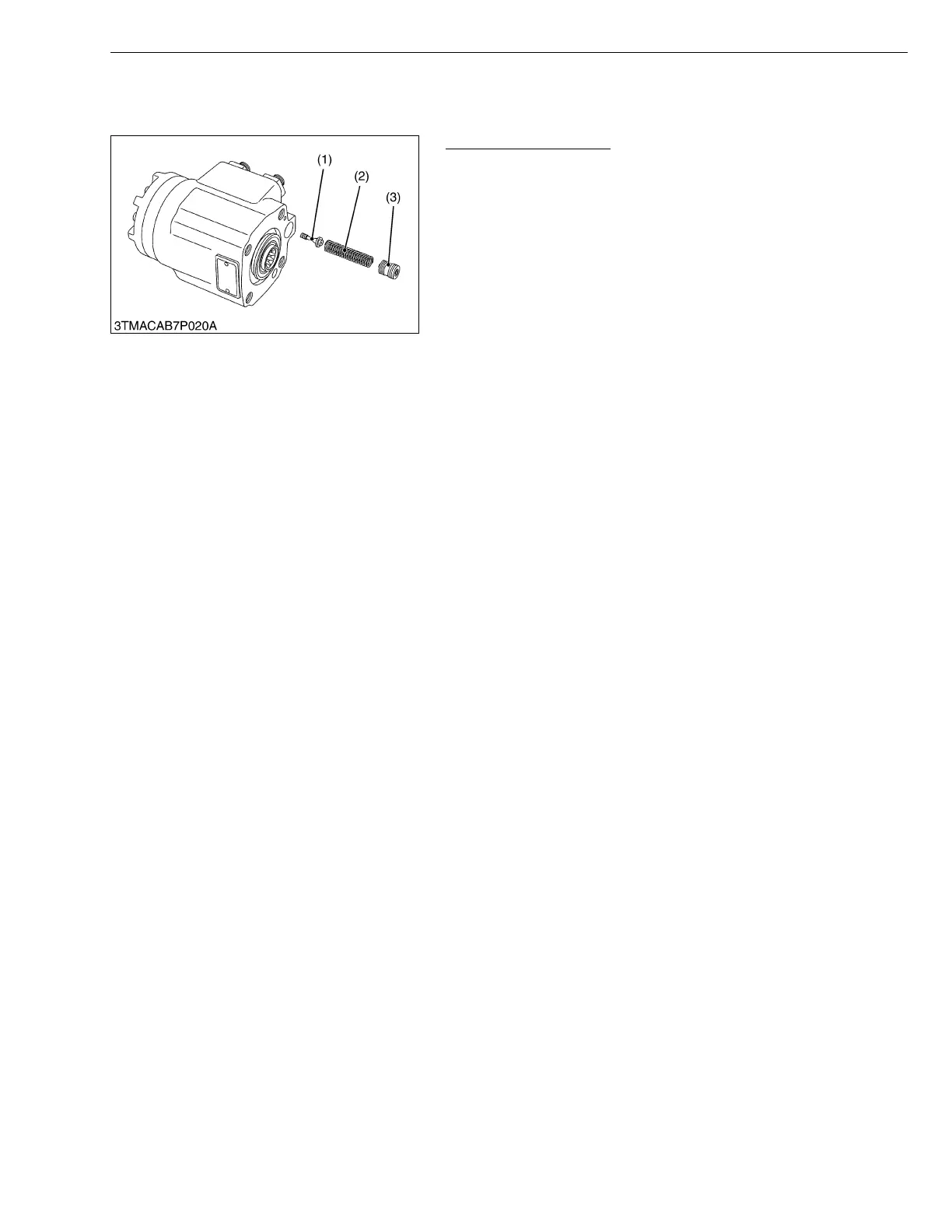

Relief Valve Assembly
1. Remove the adjust plug (3) and draw out the spring (2) and
poppet (1).
(When reassembling)
• Take care not to damage the O-ring.
IMPORTANT■
• After disassembling and assembling the relief valve, be sure
to adjust the relief valve setting pressure. (Refer to page 8-
S19.)
W1030613
(1) Poppet
(2) Spring
(3) Adjust Plug
