FRONT AXLE
[2] DISASSEMBLING AND ASSEMBLING
(1) Separating Front Axle

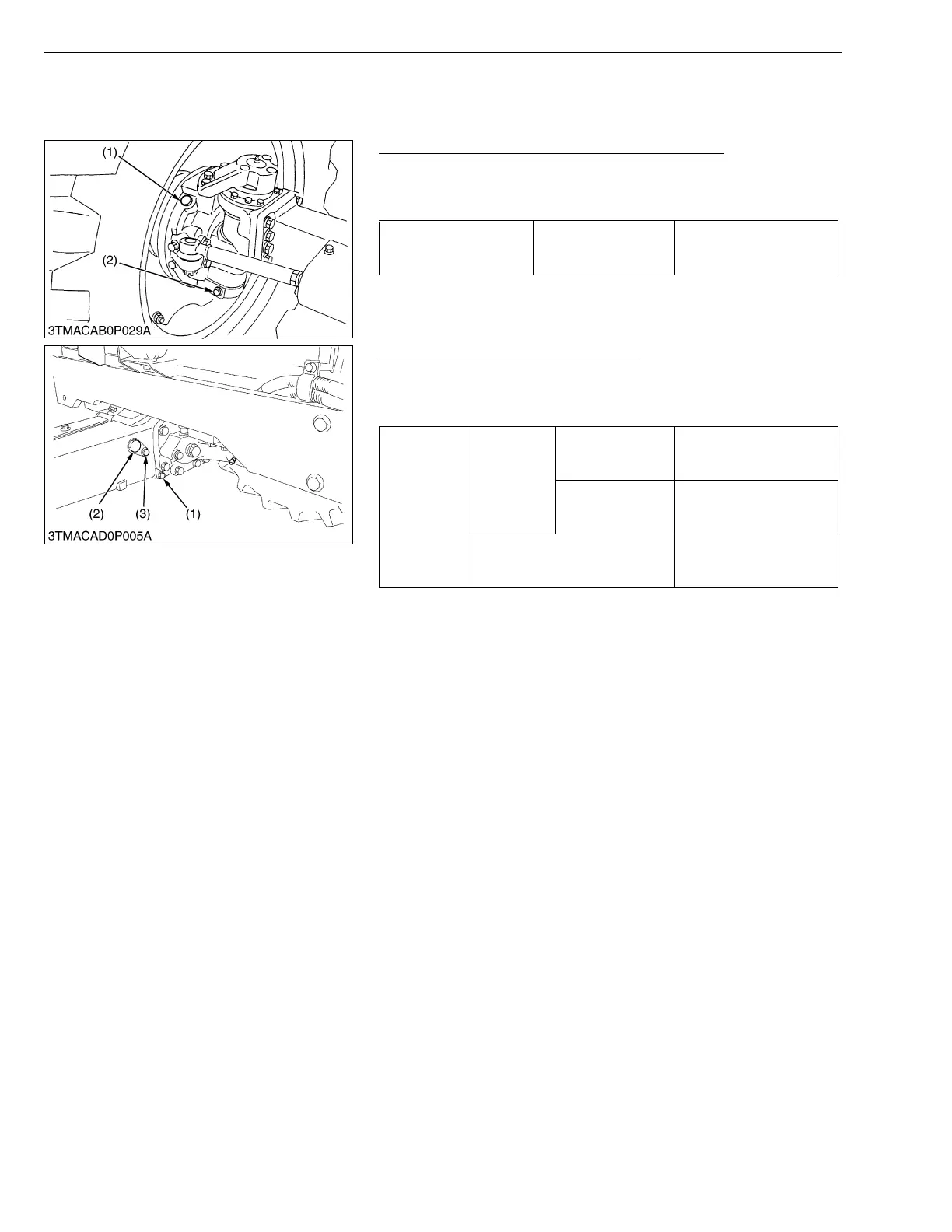

Draining Front Axle Gear Case (Right and Left)
1. Place oil pans underneath the front axle gear case.
2. Remove the drain plug (2) and filling port plug (1) to drain the oil.
3. After draining, reinstall the drain plug (2) and filling port plug (1).
W1015808
Draining Front Differential Case Oil
1. Place oil pan underneath the differential case.
2. Remove the drain plug (1) and filling plug (2) to drain the oil.
3. After draining, reinstall the drain plug (1) and filling plug (2).
W1023995
Front axle gear case oil Capacity
3.5 L
3.7 U.S.qts
3.1 Imp.qts
(1) Filling Plug (2) Drain Plug
Oil capacity
ME8200
Serial No :
up to 54529
5.0 L
5.3 U.S.qts
4.4 Imp.qts
Serial No :
54530 and above
6.0 L
6.3 U.S.qts
5.3 Imp.qts
ME9000
6.0 L
6.3 U.S.qts
5.3 Imp.qts
(1) Drain Plug
(2) Filling Plug
(3) Oil Level Check Plug
