8-S47
ME8200, ME9000, WSM
HYDRAULIC SYSTEM

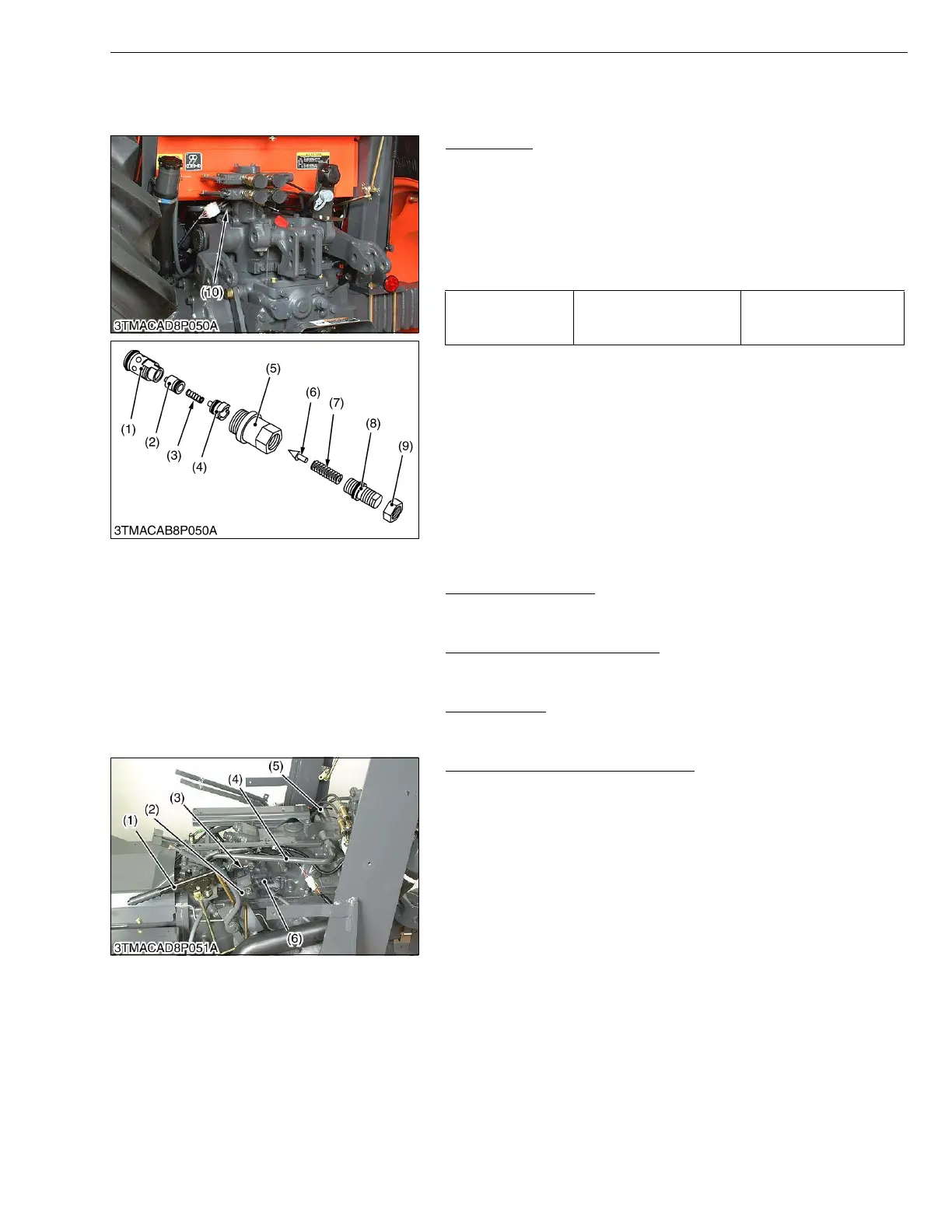

(7) Three Point Hydraulic System
(A) Relief Valve
Relief Valve
1. Remove the lock nut (9).
2. Remove the adjuster (8), and draw out the spring (7) and then
pilot valve (6).
3. Remove the valve seat (1), and draw out the valve seat (4), the
spring (3) and the main valve (2).
(When reassembling)
• Take care not to damage the O-rings.
• After disassembling and assembling the relief valve, be sure
to adjust the relief valve setting pressure.
W1020796
(B) Separating Hydraulic Cylinder Assembly (ROPS Type)
Speed Change Base
1. See page 8-S30.
W1034309
Rear Wheel, Fender and Seat
1. See page 8-S32.
W1034509
Center Frame
1. See page 8-S32.
W1034566
Hydraulic Pipe and Parking Brake
1. Disconnect the delivery pipe (4).
2. Remove the trailer brake coupler with the pipe (5).
3. Remove the parking brake lever (1) with the bracket (2).
4. Remove the spring (6) from the shuttle rod.
5. Disconnect the earth wire (3) and separate the wiring harness
from the hydraulic cylinder assembly.
W1034627
Tightening torque Relief valve
34.3 to 39.2 N·m
3.5 to 4.0 kgf·m
25.3 to 28.9 lbf·ft
(1) Valve Seat
(2) Main Valve
(3) Spring
(4) Valve Seat
(5) Valve Body
(6) Pilot Valve
(7) Spring
(8) Adjuster
(9) Lock Nut
(10) Relief Valve
(1) Parking Brake Lever
(2) Bracket
(3) Earth Wire
(4) Delivery Pipe
(5) Pipe
(6) Spring
To Next Page
