2-S14

ME8200, ME9000, WSM

CLUTCH

(3) Servicing

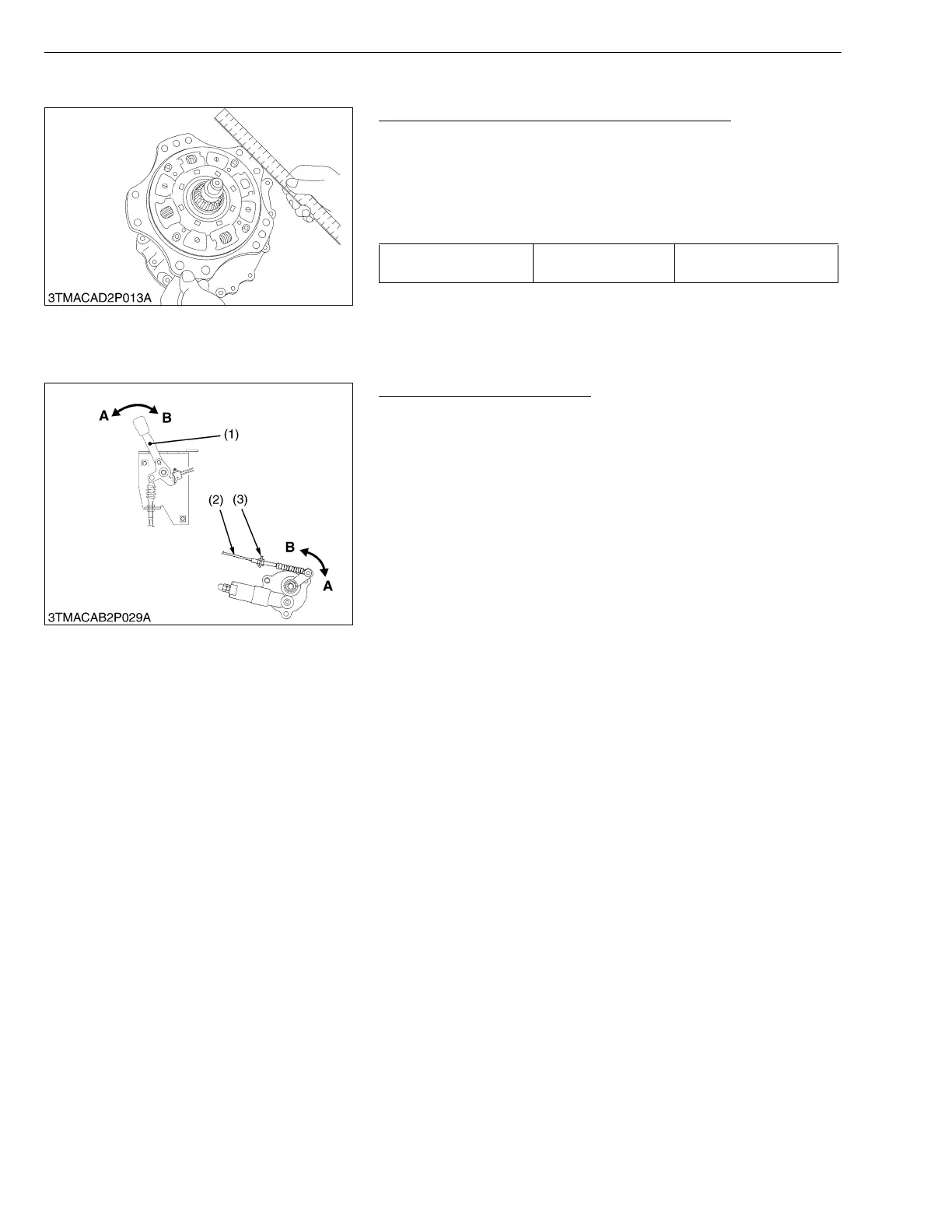

Backlash between Damper Disc Boss and Shaft

1. Mount the damper disc to the gear shaft.

2. Hold the shaft so that it does not turn.

3. Rotate disc lightly and measure the displacement around the disc

edge.

4. If the measurement exceeds the allowable limit, replace the

damper disc

W1017544

[2] HYDRAULIC PTO CLUTCH

(1) Checking and Adjusting

PTO Clutch Lever Movement

1. Stop the engine and remove the key.

2. Check the PTO clutch lever (1) on the “ON” and “OFF” position

of PTO clutch lever guide.

3. If the adjustment is needed, loosen the lock nuts (3) and adjust

the clutch control cable (2) length.

4. Retighten the lock nuts (3) firmly.

IMPORTANT■

• Do not connect the universal joint of the implement to the

tractor PTO shaft while testing.

W1017724

• Refer to checking “PTO Clutch Valve” in “8. HYDRAULIC SYSTEM”.

Displacement around

disc edge

Allowable limit

2.0 mm

0.079 in.

(1) PTO Clutch lever

(2) Clutch Control Cable

(3) Lock Nut

A : OFF

B : ON

KiSC issued 03, 2007 A
