8-M1
ME8200, ME9000, WSM
HYDRAULIC SYSTEM

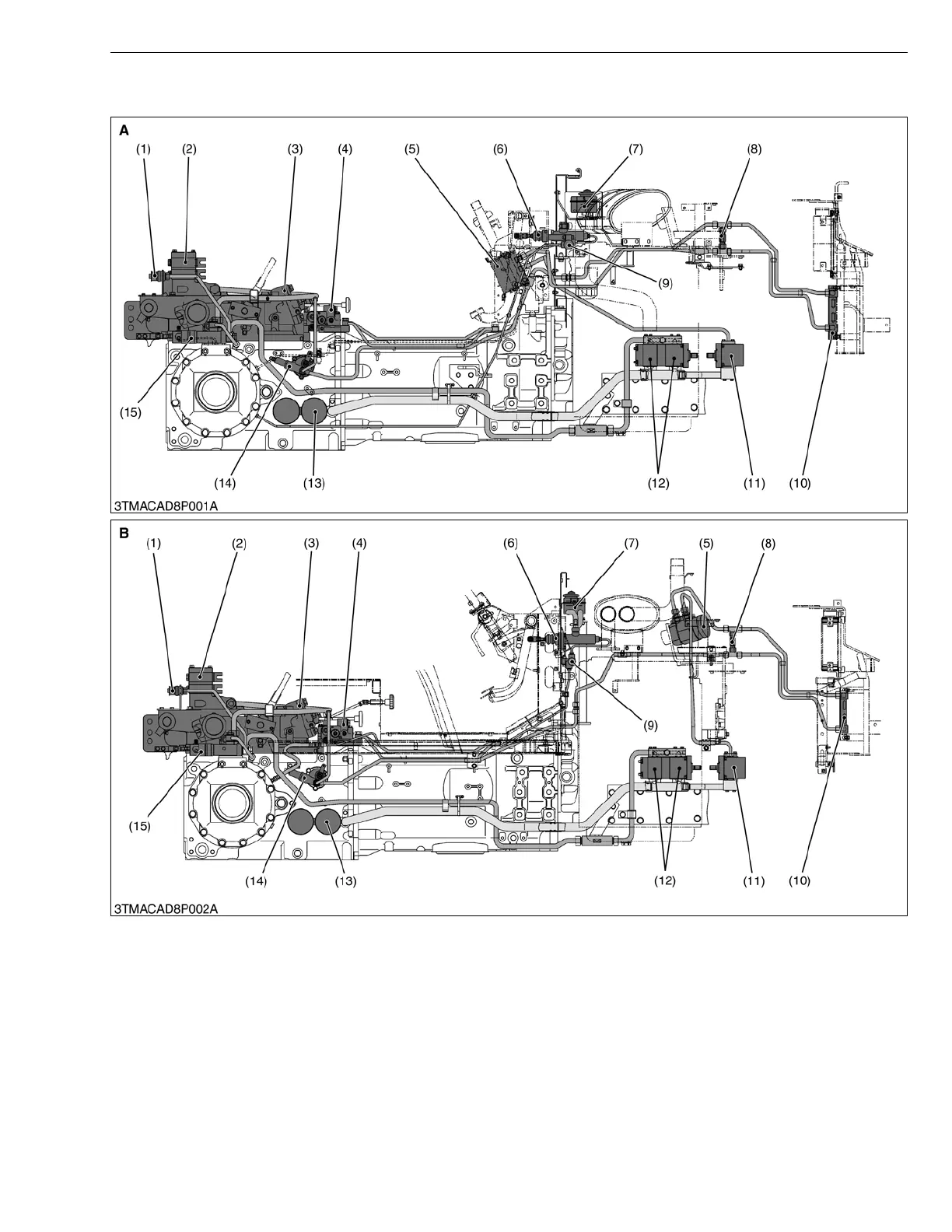

1. STRUCTURE
(1) Trailer Brake Coupler
(2) Auxiliary Control Valve
(3) Hydraulic Cylinder Body
(4) Shuttle Valve (Forward,
Reverse)
(5) Power Steering Controller
(6) Master Cylinder (Hydraulic
Brake)
(7) Brake Oil Reservoir
(8) Oil Cooler Check Valve
(9) Equalizer (Hydraulic Block)
(10) Oil Cooler
(11) Hydraulic Pump for Power
Steering
(12) Hydraulic Pump for Three
Point Hydraulic System
(13) Oil Filter Cartridge
(14) PTO Clutch Valve
(15) Trailer Brake Valve
A : ROPS Type
B : CABIN Type
