wsm ME8200 User Manual

1-S74
ME8200, ME9000, WSM
ENGINE

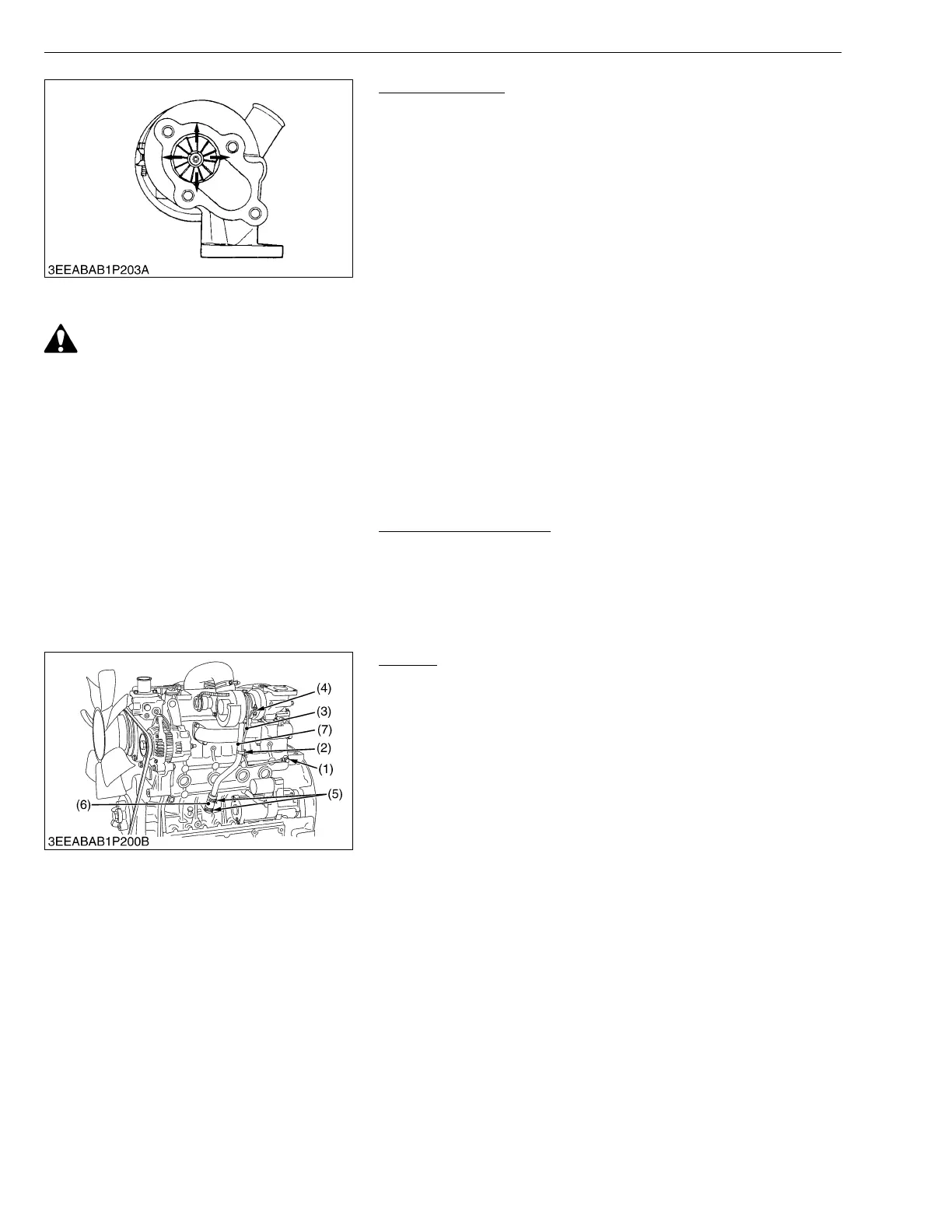

Radial Clearance
1. Move the compressor / turbine wheel (up and down / right and
left).
2. If the wheel contact to the housing, replace the turbocharger
assembly with new one.
W1045595
(2) Disassembling and Assembling
CAUTION
• While the engine is running and or just after it stops, the turbocharger is hot, be careful not to touch the
turbocharger.
NOTE■
• When detaching and attaching the turbocharger assembly, be very careful not to allow dust, dirt and other
foreign matter in the oil pipes.
• When the turbocharger assembly has been replace, pour fresh engine oil through the oil filler port of the
turbocharger.
• Before starting the engine, make sure that air cleaner is position.
Air Cleaner and Muffler
1. Remove the intake pipe.
2. Remove the inlet pipe 1.
3. Remove the muffler.
(When reassembling)
• Replace the gaskets with new one.
W1045848
Oil Pipe
1. Remove the joint screw (1) and clamp (2) and take off the pipe 1
(3).
2. Remove the bolts (4) and release the clamp (5).
3. Disconnect the oil pipe 2 (6) and pipe 4 (7).
(When reassembling)
• Pour fresh engine oil through the oil filler port of the turbocharger.
• Replace the gasket with new one.
• Be careful not to allow dust, dirt and other foreign matters in the
oil pipes.
NOTE■
• Tape or plug all openings to prevent foreign matters from
damaging the oil cavities in the turbocharger.
W1045976
(1) Joint Screw
(2) Clamp
(3) Oil Pipe 1
(4) Bolt
(5) Clamp
(6) Oil Pipe 2
(7) Oil Clamp 4
KiSC issued 03, 2007 A
