10-S32
ME8200, ME9000, WSM
CABIN

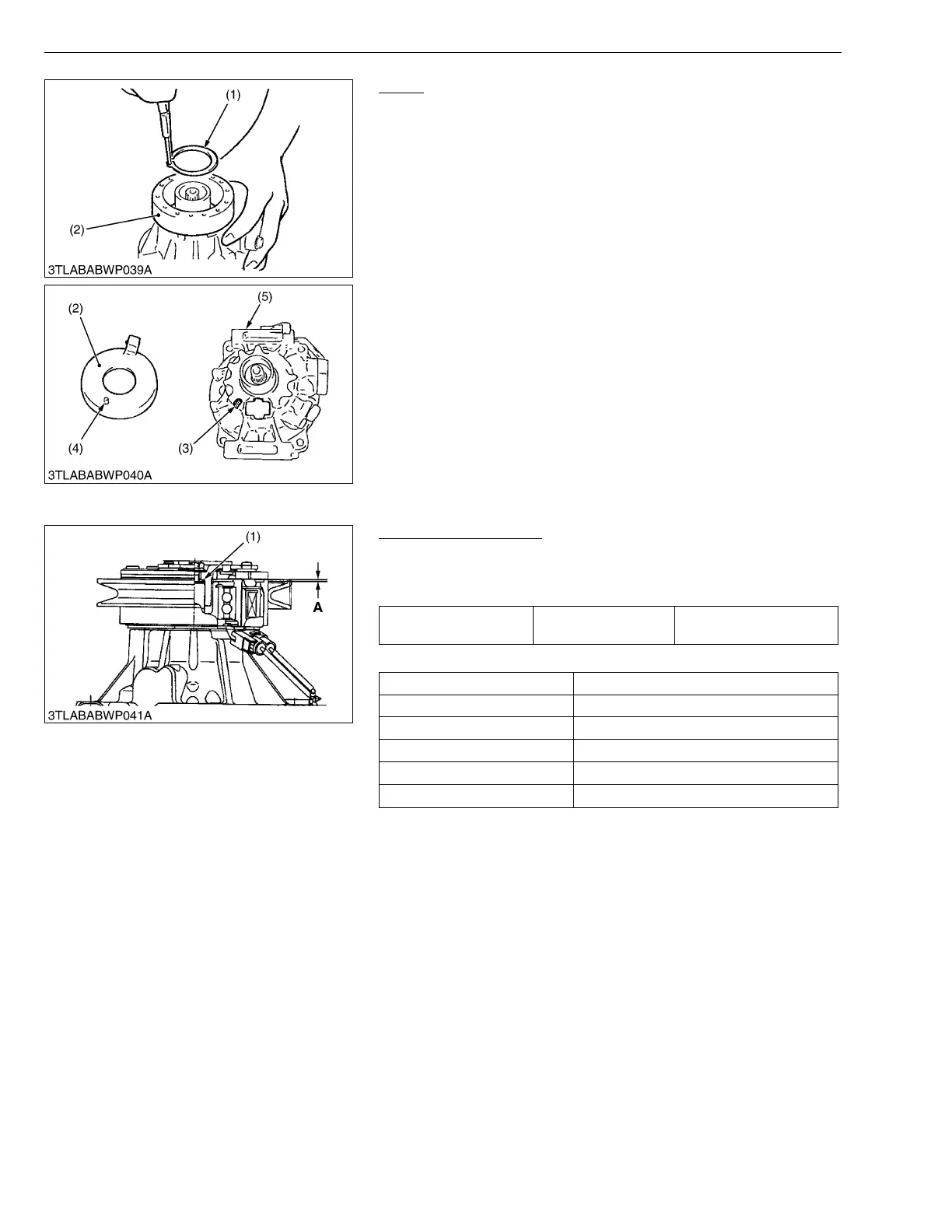

Stator
1. Remove the lead wire from compressor body.
2. Remove the external circlip (1).
3. Remove the stator (2).
(When reassembling)
• Do not use the cir-clip again.
• Assemble the cir-clip for the tapered side to become outside of
front housing.
• The width of expanding of cir-clip is set is boss of shaft as a
minimum.
• Match and assemble the concave part (3) of the front housing (5)
and the pin (4) of stator.
(Reference)
• Code No. for circlip : T1065-87440
W1059953
(3) Servicing
Adjustment of Air-gap
1. Measure the air-gap with a feeler gauge.
2. When the measurement value comes off from factory
specification, adjustment shim is added or deleted.
(Reference)
W1060178
(1) External Circlip
(2) Stator
(3) Concave Part
(4) Pin
(5) Front Housing
Air-gap Factory spec.
0.25 to 0.50 mm
0.01 to 0.02 in.
Adjustment shim
0.10 mm (0.0039 in.) T1065-87340
0.15 mm (0.0059 in.) T1065-87350
0.40 mm (0.016 in.) T1065-87360
0.60 mm (0.024 in.) T1065-87370
1.0 mm (0.0394 in.) T1065-87380
(1) Shim A : Air-Gap
To Next Page
