wsm ME8200 User Manual

G-53
ME8200, ME9000, WSM
G GENERAL

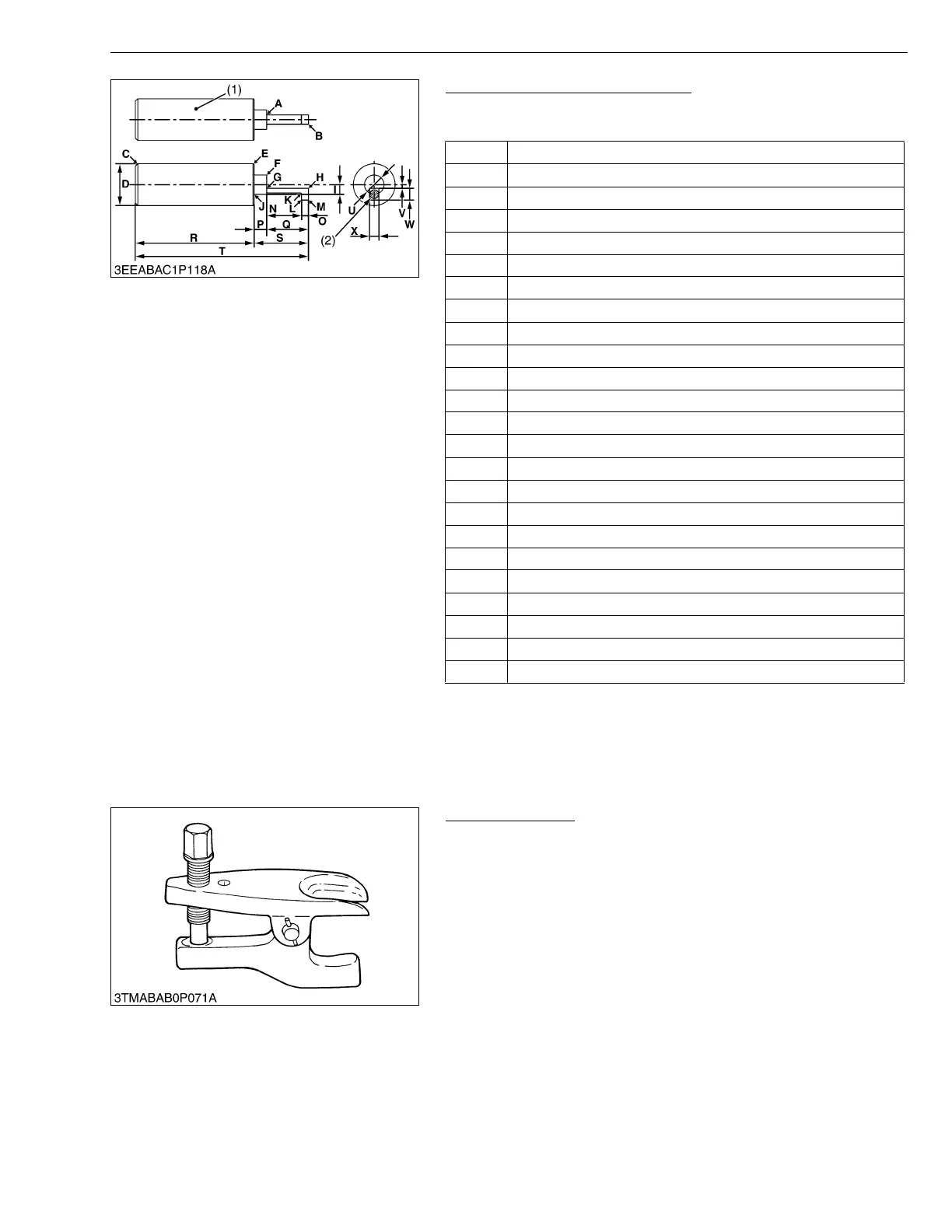

Jig for Governor Connecting Rod
Application: Use for connecting the governor connecting rod to the
rack pin of the fuel injection pump assembly.
W1115114
[2] SPECIAL TOOLS FOR TRACTOR
Tie-rod End Lifter
Code No.: 07909-39051
Application: Use for removing the tie-rod end with ease.
W10264720
A 1 mm (0.0394 in.)
B Chamfer 0.2 mm (0.0079 in.)
C Chamfer 2 mm (0.0787 in.)
D 35 mm dia. (1.3780 in. dia.)
E Chamfer 1 mm (0.0394 in.)
F Chamfer 0.1 mm (0.0039 in.)
G 1 mm (0.0394 in.)
H Chamfer 0.2 mm (0.0079 in.)
I R8 mm (0.3150 in. rad)
J 1 mm (0.0394 in.)
K 1 mm (0.0394 in.)
L Chamfer 0.2 mm (0.0079 in.)
M Chamfer 0.2 mm (0.0079 in.)
N 29 mm (1.1417 in.)
O 6 mm (0.2362 in.)
P 10.7 mm (0.4213 in.)
Q 35 mm (1.3780 in.)
R 99.3 mm (3.9095 in.)
S 45.65 to 45.75 mm (1.7972 to 1.8012 in.)
T 145 mm (5.7087 in.)
U 16.15 to 16.35 mm (0.6358 to 0.6437 in.)
V 3 mm (0.1181 in.)
W 10 mm (0.3937 in.)
X 8 mm (0.3150 in.)
(1) Material: S45C-D (2) Permanent Magnet: 8 mm dia.
(0.3150 in. dia.)
Thickness: 3 mm (0.1181 in.)
KiSC issued 03, 2007 A
