wsm ME8200 User Manual

8-S29
ME8200, ME9000, WSM
HYDRAULIC SYSTEM
[2] DISASSEMBLING AND ASSEMBLING
(1) Hydraulic Shuttle System
(A) Oil Cooler Check Valve
Check Valve
NOTE■
• This is a reference when assemble the oil cooler check valve
(1).
(When reassembling)
• ROPS Type : Arrow mark toward Up.
• CABIN Type : Arrow mark toward Down.
W1023996

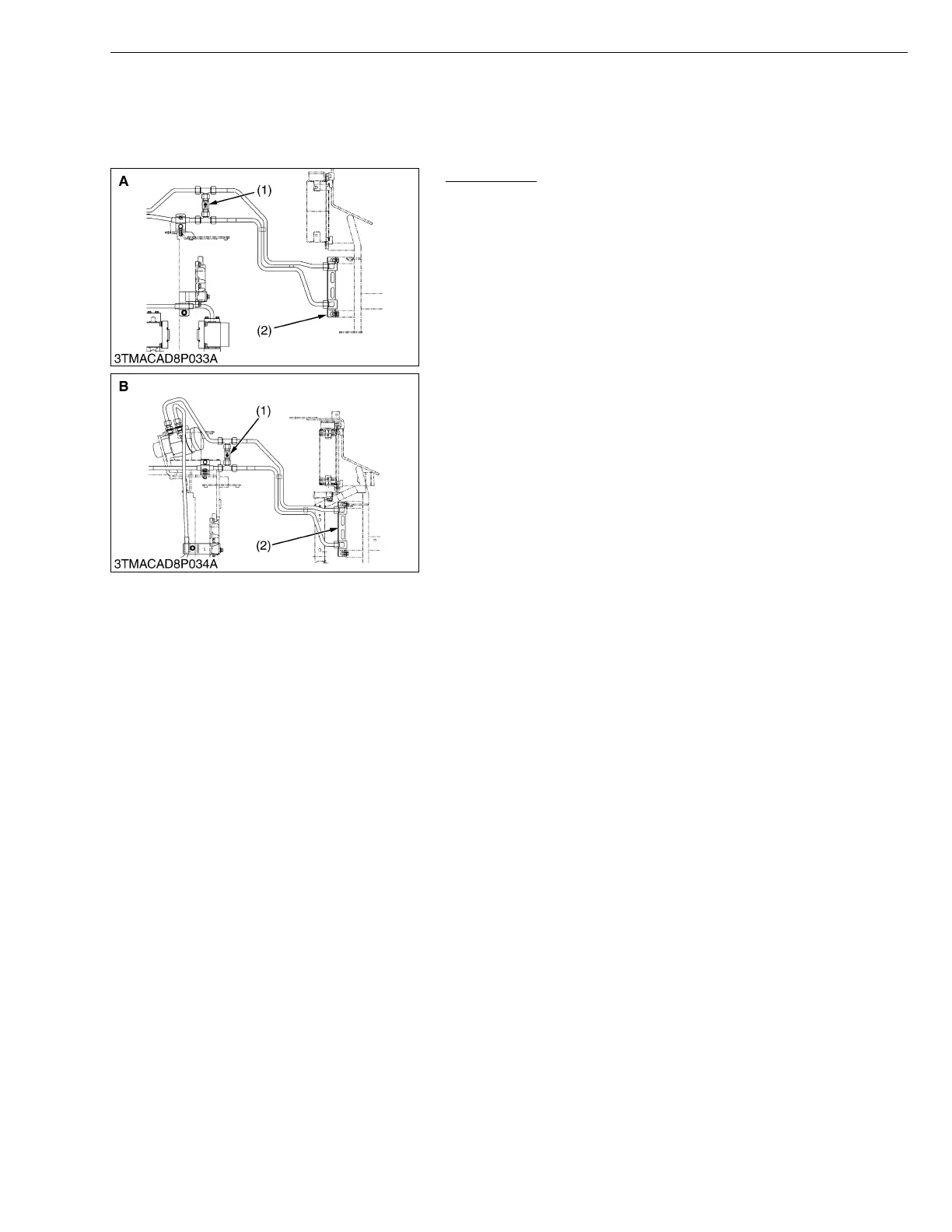

(1) Oil Cooler Check Valve
(2) Oil Cooler
A : ROPS Type
B : CABIN Type
