8-M15
ME8200, ME9000, WSM
HYDRAULIC SYSTEM
4. PTO CLUTCH VALVE

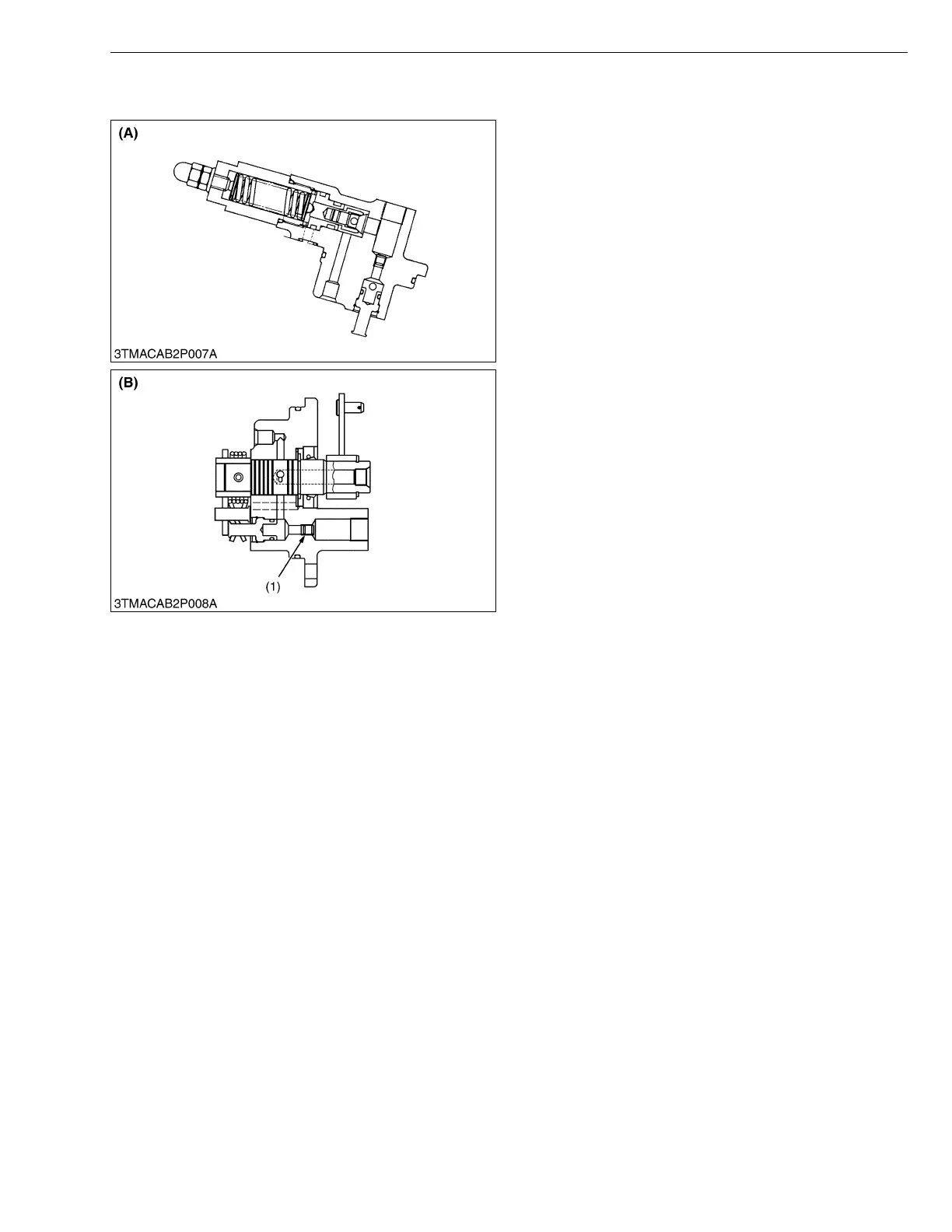

PTO clutch valve is composed of the following parts.
(A) Main Relief Valve
PTO clutch inner pressure is kept in approx. 2451 kPa
(25 kgf/cm
2
, 355 psi) by the main relief valve.
(B) Rotary Valve
This valve change the oil flow to PTO clutch. This is
rotated by the PTO operation lever via to PTO clutch
cable. The oil from steering controller passes through
the orifice (1) and flow to the PTO clutch.
W1015018
(1) Orifice
