[3] ROOM LAMP (CABIN TYPE)
W1013497
â– Room Lamp Switch
This switch is slide type switch.
When switch (3) slide to the ON position, room lamp
(2) lights on without any relation to DOOR position.
When switch (3) slide to the DOOR position, room
lamp (2) lights on, at the door switch comes close
position.
W1013629
â– Door Switch
When the door is closed, the push rod (2) is pushed
by door frame, so that the door switch comes open
position.
Both R.H. and L.H. door should close to lights off the
room lamp.
W1013781

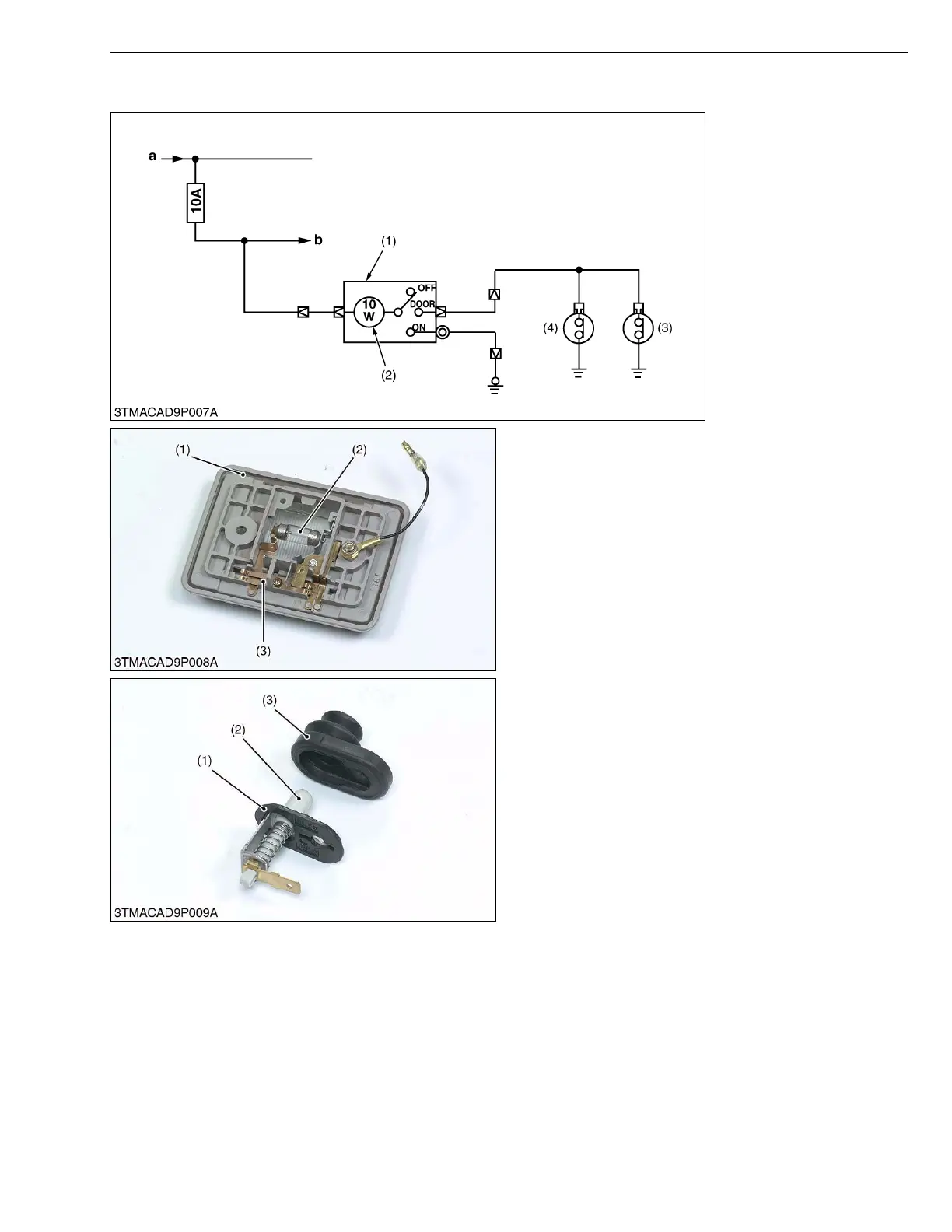

(1) Room Lamp Switch
(2) Room Lamp
(3) Door Switch RH
(4) Door Switch LH
(a) From Battery
(b) To Radio
(1) Room Lamp Switch Assembly
(2) Room Lamp
(3) Switch
(1) Door Switch
(2) Push Rod
(3) Cover
