Zebra ZD620 User Manual

175
Setup
Serial Interface

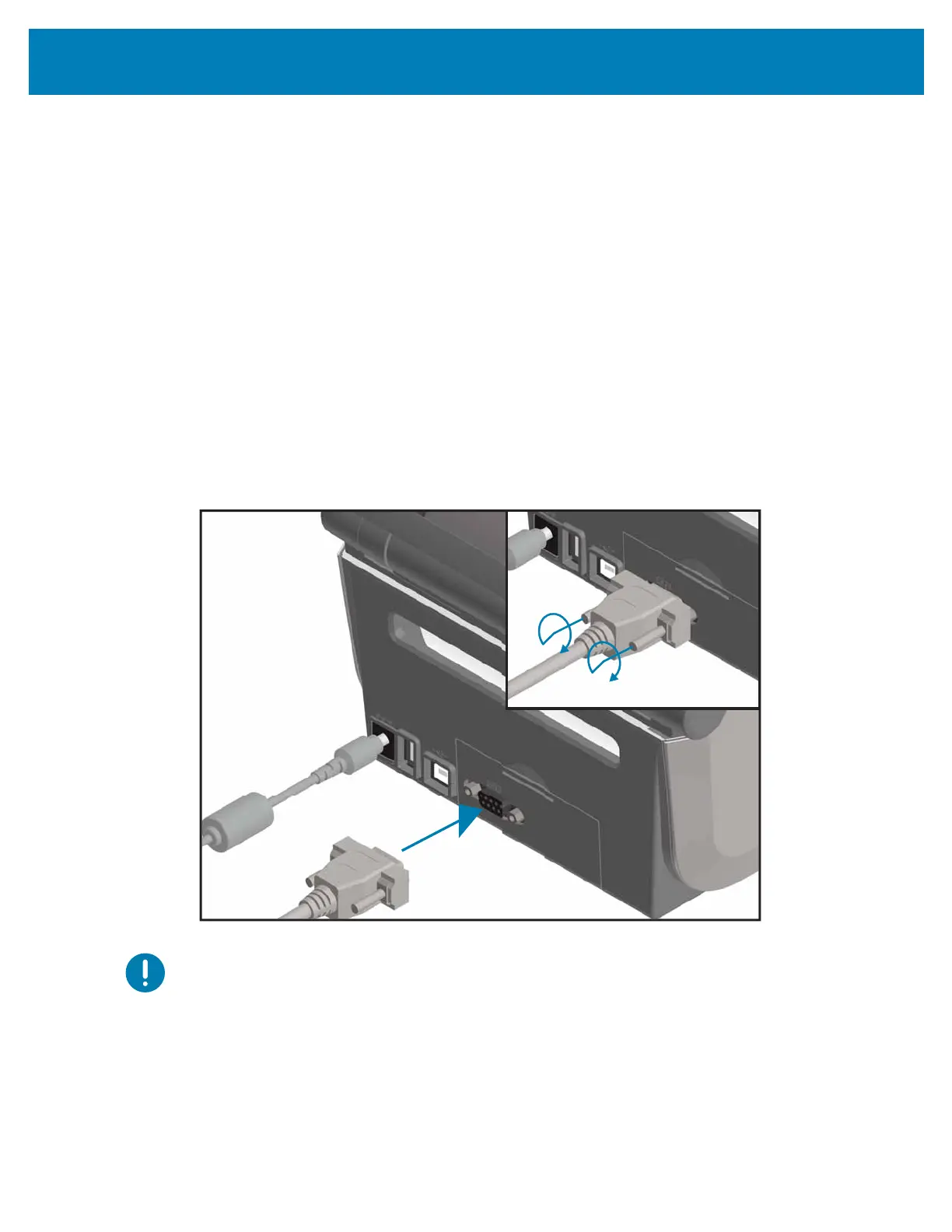

The printer uses a Null Modem (cross-over) cable for DTE communications. The required
cable must have a nine-pin “D” type (DB-9P) male connector on one end which plugs into
the mating (DB-9S) serial port located on the back of the printer. The other end of this
signal interface cable connects to a serial port on the host computer. For pin-out
information, refer to Appendix A.
The serial port communication settings between the printer and host (typically a PC) must
match for reliable communication. The Bits per second (or Baud rate) and Flow control are
the most common settings that get changed.
Serial communications between the printer and the host computer can be set by:
• ZPL programming ^SC command
• Resetting the printer to its default printer configuration.
Factory defaults for serial communication settings are: 9600 baud, 8 bit word length,
NO parity, 1 stop bit, and XON/XOFF (‘Software’ data flow control in the Windows based
host system).
Important • Do not use RS-232 cable adapter dongles (DTE<=>DCE) with this printer.
Some dongles can interfere with the operation of USB Host port devices at printer power
up.

Zebra ZD620 Specifications

General

Color	-
Print technology	Direct thermal
Maximum resolution	203 x 203 DPI
Maximum print height	- mm
Maximum printing width	104 mm
Flash memory	512 MB
Internal memory	256 MB
Number of fonts	16
Built-in barcodes	1D, 2D, AZTECCODE, CODABAR (NW-7), Code 11, Code 128 (A/B/C), Code 39, Code 49, Code 93, Data Matrix, EAN13, Industrial 2/5, Interleaved 2/5, MaxiCode, Micro QR Code, MicroPDF417, PDF417, POSTNET, QR Code, UPC-A, UPC-E
Page description languages	EPL2, XML, ZBI, ZPL II
Display	LCD
Color display	Yes
Product color	Black, Grey
Display resolution	320 x 240 pixels
Wi-Fi standards	Wi-Fi 5 (802.11ac)
Bluetooth version	4.1
USB 2.0 ports quantity	1
Connectivity technology	Wired & Wireless
Mobile operating systems supported	Android, iOS
Storage temperature (T-T)	-40 - 60 °C
Operating temperature (T-T)	4.4 - 41 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	10 - 90 %
Media thickness	0.08 - 0.1905 mm
Maximum label length	0.991 m
Maximum roll diameter	127 mm

Weight and Dimensions

Depth	221 mm
Width	177 mm
Height	151 mm
