Zebra ZD620 User Manual

188
Setup for Windows
®
OS
15. Determine if you will send the script immediately, or save it for use at a later time.
Using a Configuration Script
Complete setup by sending the ZPL script to the printer through the port selected at the
beginning of this procedure
1. Verify that the printer is connected to the computer through the wired cable
connection to port you selected, USB or Serial.
2. If you have not already done so, turn ON the printer.

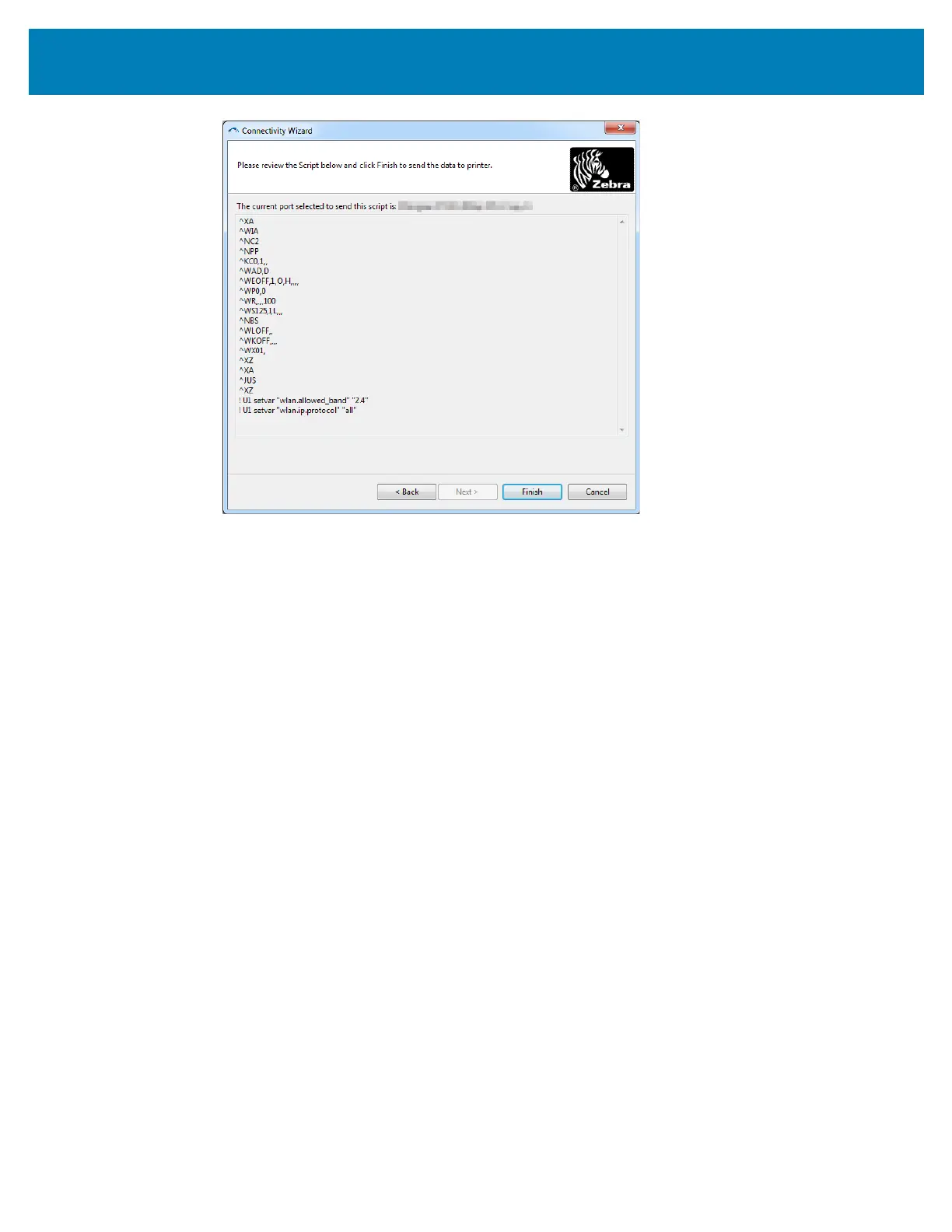

3. On the Review and Send ZPL for Wireless window, click Finish.
4. The printer sends the ZPL script to the printer through the selected port. The Wireless
Setup Wizard screen closes.
5. Turn the printer OFF and then back ON.

Zebra ZD620 Specifications

General

Color	-
Print technology	Direct thermal
Maximum resolution	203 x 203 DPI
Maximum print height	- mm
Maximum printing width	104 mm
Flash memory	512 MB
Internal memory	256 MB
Number of fonts	16
Built-in barcodes	1D, 2D, AZTECCODE, CODABAR (NW-7), Code 11, Code 128 (A/B/C), Code 39, Code 49, Code 93, Data Matrix, EAN13, Industrial 2/5, Interleaved 2/5, MaxiCode, Micro QR Code, MicroPDF417, PDF417, POSTNET, QR Code, UPC-A, UPC-E
Page description languages	EPL2, XML, ZBI, ZPL II
Display	LCD
Color display	Yes
Product color	Black, Grey
Display resolution	320 x 240 pixels
Wi-Fi standards	Wi-Fi 5 (802.11ac)
Bluetooth version	4.1
USB 2.0 ports quantity	1
Connectivity technology	Wired & Wireless
Mobile operating systems supported	Android, iOS
Storage temperature (T-T)	-40 - 60 °C
Operating temperature (T-T)	4.4 - 41 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	10 - 90 %
Media thickness	0.08 - 0.1905 mm
Maximum label length	0.991 m
Maximum roll diameter	127 mm

Weight and Dimensions

Depth	221 mm
Width	177 mm
Height	151 mm
