Zebra ZD620 User Manual

245
Maintenance
ZD420 Ribbon Cartridge Printers
1. Pull the two (2) Release Arms out to release the Ribbon Drive Transport. See
Accessing the Printhead of the Ribbon Cartridge Printer for more details.

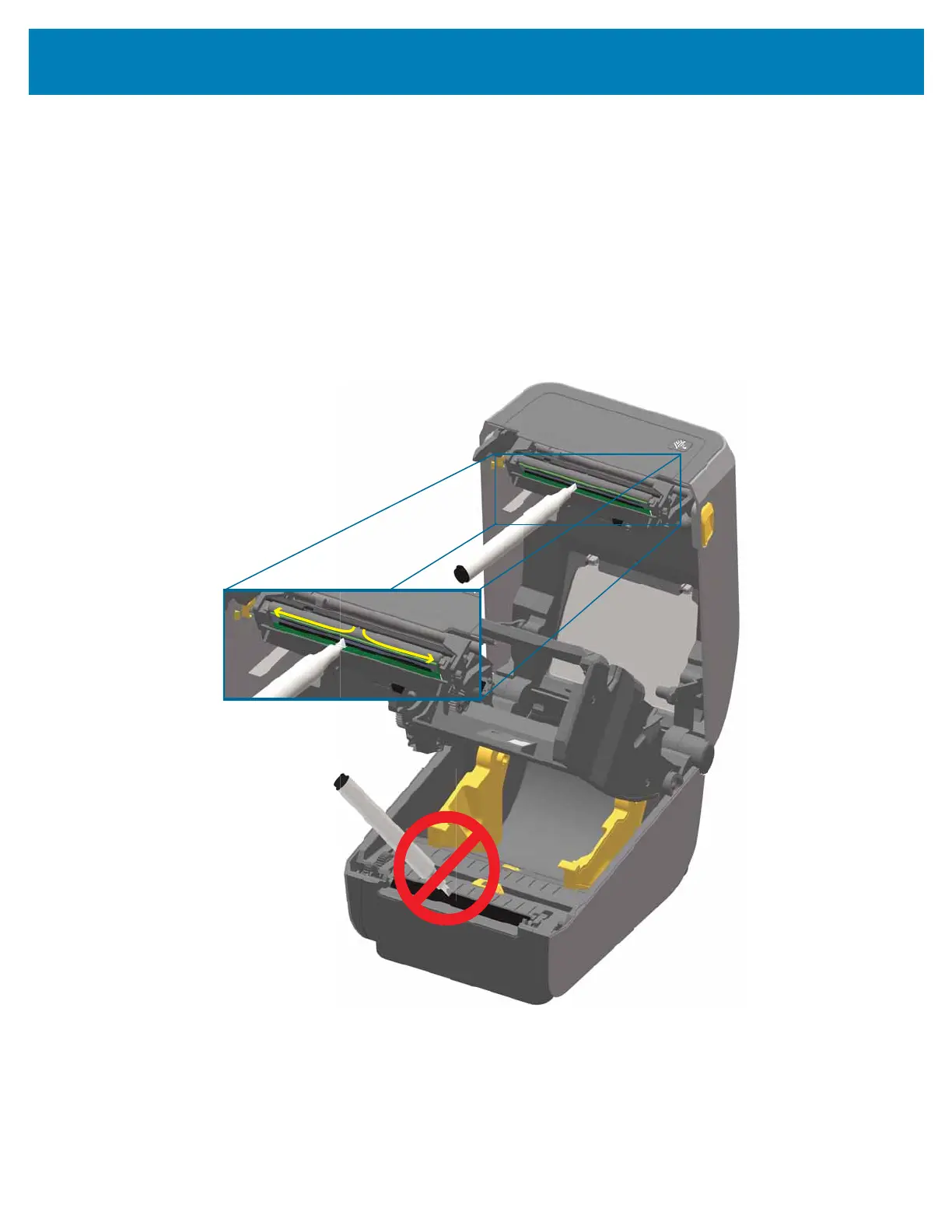

2. Lift the Printhead Actuator Arm up to gain access to the printhead. Rub the cleaning
pen across the dark area of the printhead. Clean from the middle to the outside. This
will move adhesive transferred from the outer edges of media to the area outside of
media path.
3. Wait one minute before closing the printer.
4. Release the Printhead Actuator Arm and then push the Ribbon Drive Transport into
the Printhead Actuator Arm. The Release Arms will snap into place relinking the
Ribbon Drive Transport to the top cover and the Printhead Actuator Arm.

Zebra ZD620 Specifications

General

Color	-
Print technology	Direct thermal
Maximum resolution	203 x 203 DPI
Maximum print height	- mm
Maximum printing width	104 mm
Flash memory	512 MB
Internal memory	256 MB
Number of fonts	16
Built-in barcodes	1D, 2D, AZTECCODE, CODABAR (NW-7), Code 11, Code 128 (A/B/C), Code 39, Code 49, Code 93, Data Matrix, EAN13, Industrial 2/5, Interleaved 2/5, MaxiCode, Micro QR Code, MicroPDF417, PDF417, POSTNET, QR Code, UPC-A, UPC-E
Page description languages	EPL2, XML, ZBI, ZPL II
Display	LCD
Color display	Yes
Product color	Black, Grey
Display resolution	320 x 240 pixels
Wi-Fi standards	Wi-Fi 5 (802.11ac)
Bluetooth version	4.1
USB 2.0 ports quantity	1
Connectivity technology	Wired & Wireless
Mobile operating systems supported	Android, iOS
Storage temperature (T-T)	-40 - 60 °C
Operating temperature (T-T)	4.4 - 41 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	10 - 90 %
Media thickness	0.08 - 0.1905 mm
Maximum label length	0.991 m
Maximum roll diameter	127 mm

Weight and Dimensions

Depth	221 mm
Width	177 mm
Height	151 mm
