Zebra ZD620 User Manual

220
Print Operations
Zebra
®

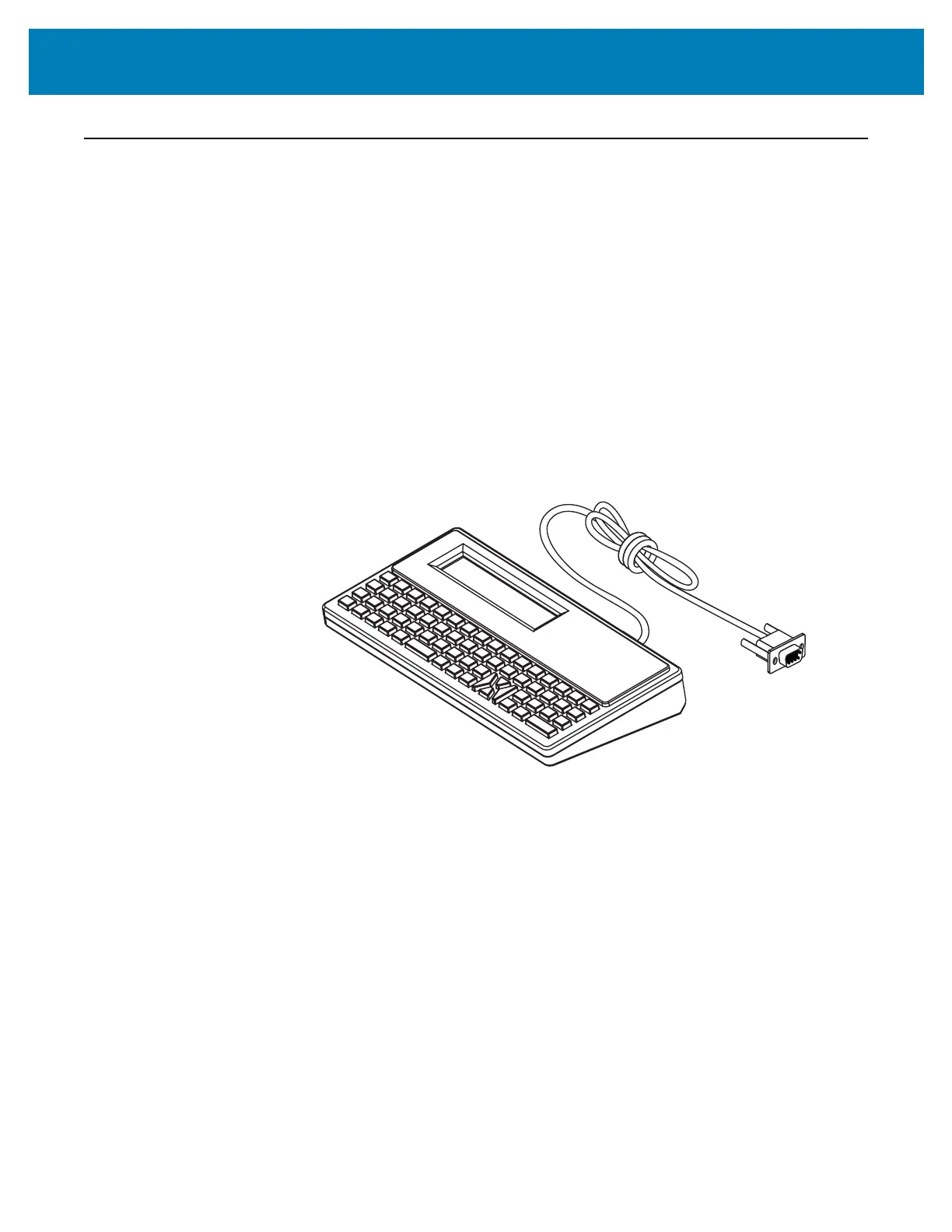

ZKDU — Printer Accessory
The Zebra® ZKDU (keyboard display unit) is a small terminal unit that interfaces with the
printer for accessing EPL or ZPL label forms stored in the printer.
The ZKDU is strictly a terminal and does not have the capability to store data or set up
parameters.
The ZKDU is used for the following functions:
• List label forms stored in printer
• Retrieve label forms stored in printer
• Input variable data
• Printing labels
• Switching between EPL and ZPL to dual support both printer language
format/form types that can be stored and printed in many later model Zebra
label printers.

Zebra ZD620 Specifications

General

Color	-
Print technology	Direct thermal
Maximum resolution	203 x 203 DPI
Maximum print height	- mm
Maximum printing width	104 mm
Flash memory	512 MB
Internal memory	256 MB
Number of fonts	16
Built-in barcodes	1D, 2D, AZTECCODE, CODABAR (NW-7), Code 11, Code 128 (A/B/C), Code 39, Code 49, Code 93, Data Matrix, EAN13, Industrial 2/5, Interleaved 2/5, MaxiCode, Micro QR Code, MicroPDF417, PDF417, POSTNET, QR Code, UPC-A, UPC-E
Page description languages	EPL2, XML, ZBI, ZPL II
Display	LCD
Color display	Yes
Product color	Black, Grey
Display resolution	320 x 240 pixels
Wi-Fi standards	Wi-Fi 5 (802.11ac)
Bluetooth version	4.1
USB 2.0 ports quantity	1
Connectivity technology	Wired & Wireless
Mobile operating systems supported	Android, iOS
Storage temperature (T-T)	-40 - 60 °C
Operating temperature (T-T)	4.4 - 41 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	10 - 90 %
Media thickness	0.08 - 0.1905 mm
Maximum label length	0.991 m
Maximum roll diameter	127 mm

Weight and Dimensions

Depth	221 mm
Width	177 mm
Height	151 mm
