11.35
11 11 045 Removing and installing alterna-
tor mount cover with engine installed
e Attention:
Disconnect earth (ground) lead from battery.
Insulate earth (ground) lead.
•
Drain oil from engine.
•
Remove the seat.
•
Remove side panels (a 46.8).
e Attention:
Fuel is flammable and a hazard to health. Observe all
applicable safety regulations.
•
Remove fuel tank (a 16.5).
•
Remove bracket for trim panels from alternator
mount cover.
•
Remove exhaust.
•
Remove manifold.
•
Disconnect oil cooler line from engine.
•
Disconnect the Hall transmitter.
•
Remove starter motor.
•
Remove the horn, if necessary.
•
Disengage spring strut.
•
Remove the alternator.
•
Remove poly-V belt.
•
Install locking device, BMW No. 11 5 640, to
lock clutch housing.
•

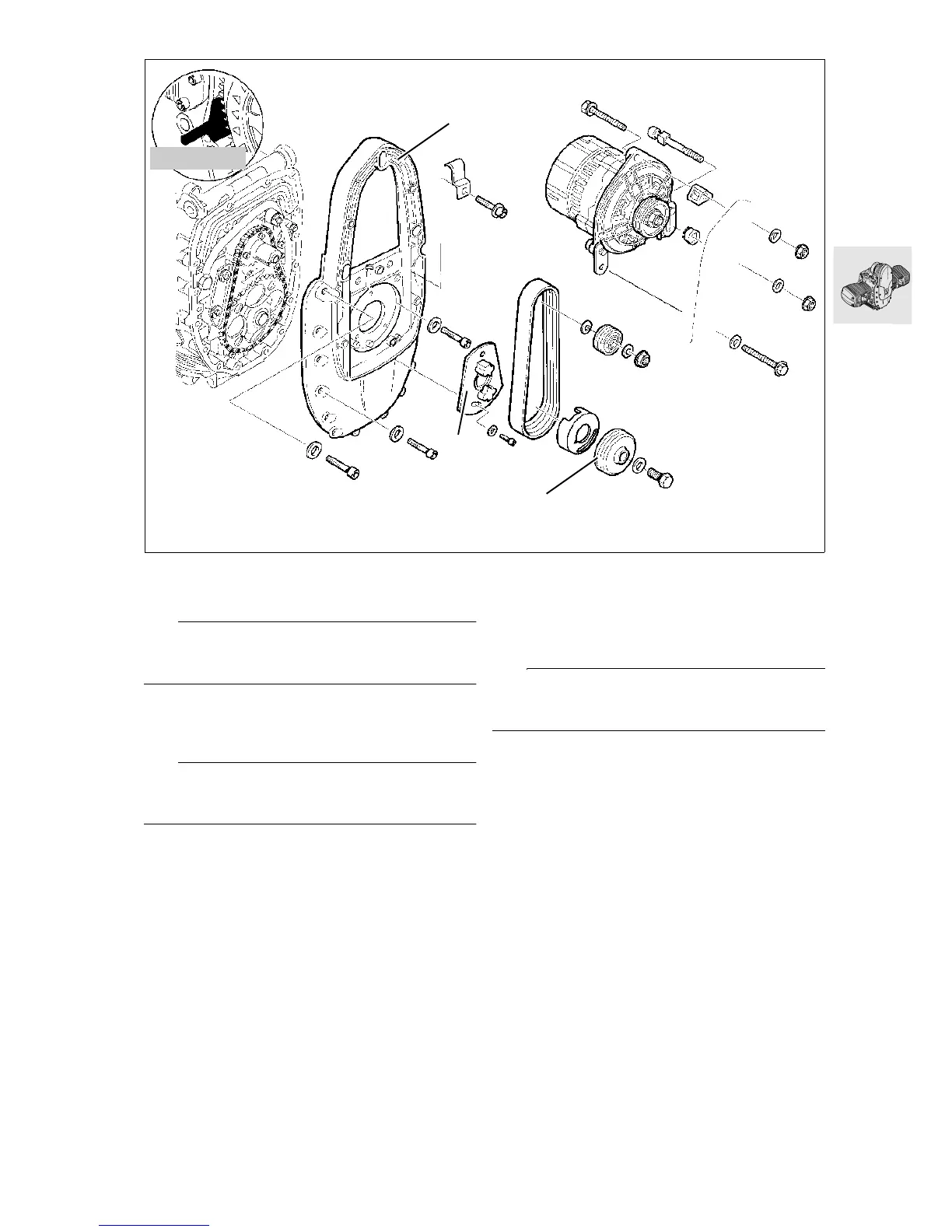

Remove pulley (1).
L Note:
It is not necessary to remove magnetic gate (2) when
removing the alternator mount cover as a unit.
•
Remove magnetic gate (2).
•
Swivel the leading link up.
•
Remove alternator mount cover (3).
•
Assembly is the reverse of the disassembly pro-
cedure.
•
Place assembly sleeve, BMWNo.115680, on
crankshaft.
•
Clean and degrease sealing face (arrow) and ap-
ply 3-Bond 1209.
•
Install alternator mount cover.
X Tightening torque:
M 8 screw .................................................... 20 Nm
M 6 screw ...................................................... 9 Nm
R22110050
3
2
1
11 5 640
