34.9

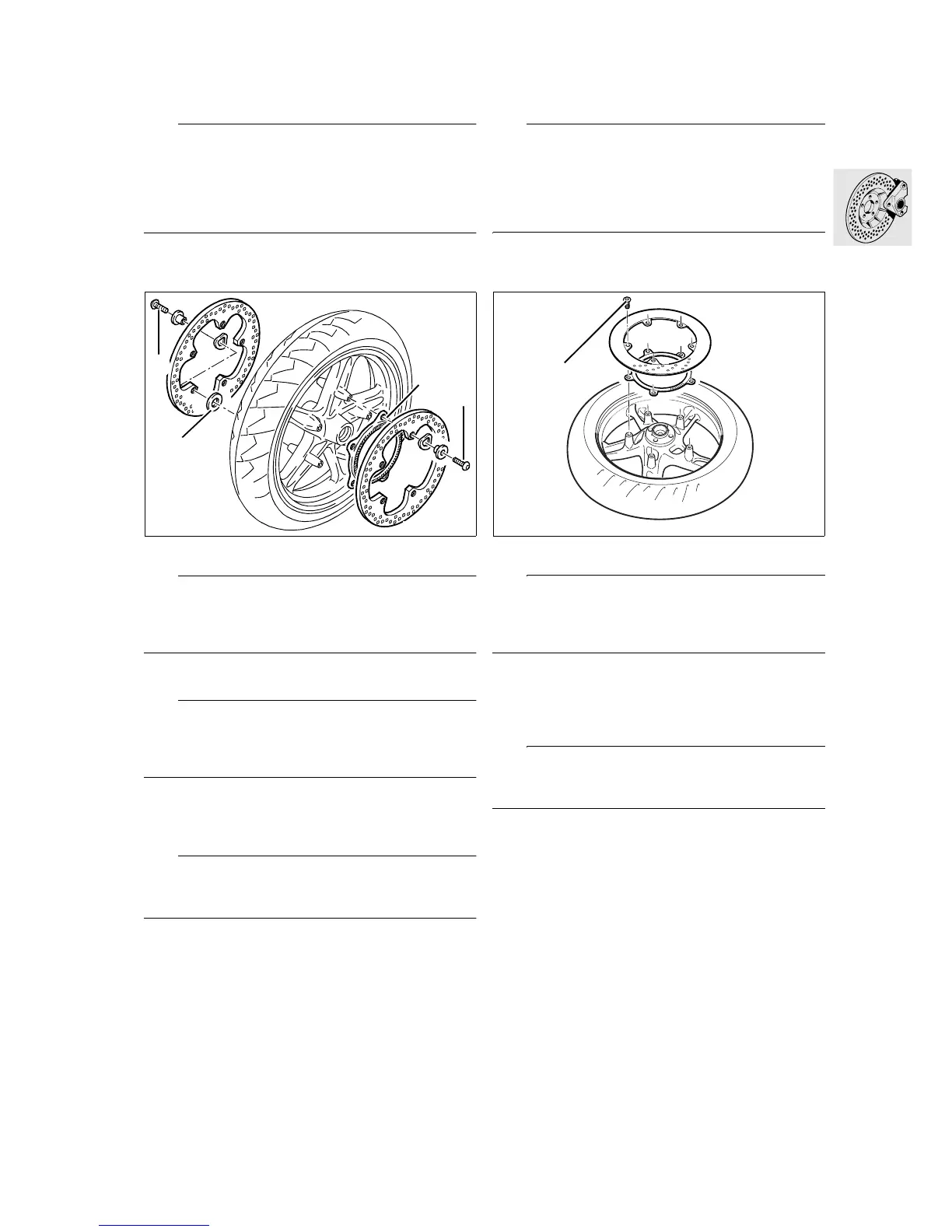

34 11 Removing and installing front
brake discs
d Warning:
When removing and installing the brake calipers,
force back the pistons carefully to ensure that the
wheel-circuit reservoir does not overflow.
If fluid escapes, proceed in accordance with “In-
structions for filling reservoir” (a 34.26).
•
Remove the brake calipers.
•
Remove front wheel.
L Note:
Retaining screws (1) are secured with thread-lock-
ing compound and should be heated if necessary
before removal.
•
Remove brake discs.
e Attention:
Note thrust washers between right brake disc and
front wheel, and note ABS sensor ring between left
brake disc and front wheel.
•
Install ABS sensor ring (2) on left and thrust
washers (3) on right beneath brake disc.
•
Degrease brake discs before installing.
e Attention:
Install brake discs right way round (inscriptions on
brake discs facing toward the outside).
X Tightening torque:
Brake disc to front wheel
(clean thread + Loctite 2701)....................... 21 Nm
34 21
Removing and installing rear
brake disc
d Warning:
When removing and installing the brake caliper,
force back the pistons carefully to ensure that the
wheel-circuit reservoir does not overflow.
If fluid escapes, proceed in accordance with “In-
structions for filling reservoir” (a 34.29).
•
Remove the brake caliper.
•
Remove rear wheel.
L Note:
Retaining screws (1) are secured with thread-lock-
ing compound and should be heated if necessary
before removal.
•
Remove brake disc.
•
Installation is the reverse of the removal proce-
dure.
•
Degrease the brake disc before installing.
e Attention:
Make sure the spacer is fitted when the rear wheel
is installed.
X Tightening torque:
Brake disc to rear wheel drive
(clean thread + Loctite 2701)....................... 21 Nm
R28340150
1
1
2
3
R28340130
1
