31 42 025 Removing and installing tel-
escopic fork
31 42 Removing and installing tele-
scopic fork without fork bridge
•
Place motorcycle on its centre stand.
•
Take the load off the front forks and secure the
motorcycle so that it cannot topple forward.
d Warning:
Integral ABS When removing and installing the
brake calipers, force back the pistons carefully to
ensure that the wheel-circuit reservoir does not
overflow.
If fluid escapes, proceed in accordance with “In-
structions for filling reservoir” (a 00.44).
•
Remove brake calipers.
e Attention:
Integral ABS Do not apply handbrake lever or foot-
brake lever with brake calipers removed/front wheel
removed.
•
Remove front wheel.
•
Remove rear mudguard.
•
Integral ABS Remove sensor and cable from
slider tube.
•
Remove brake line from slider tube.
•
Place a support beneath the telescopic fork.
•
Heat leading link mount at front to
max. 120 °C (248 °F) and remove.
•
Remove both handlebars from fork bridge.
•
Remove fastener securing fixed tube in upper
fork bridge while holding the hexagon of the fixed
tube and then pull the telescopic fork down to
remove.

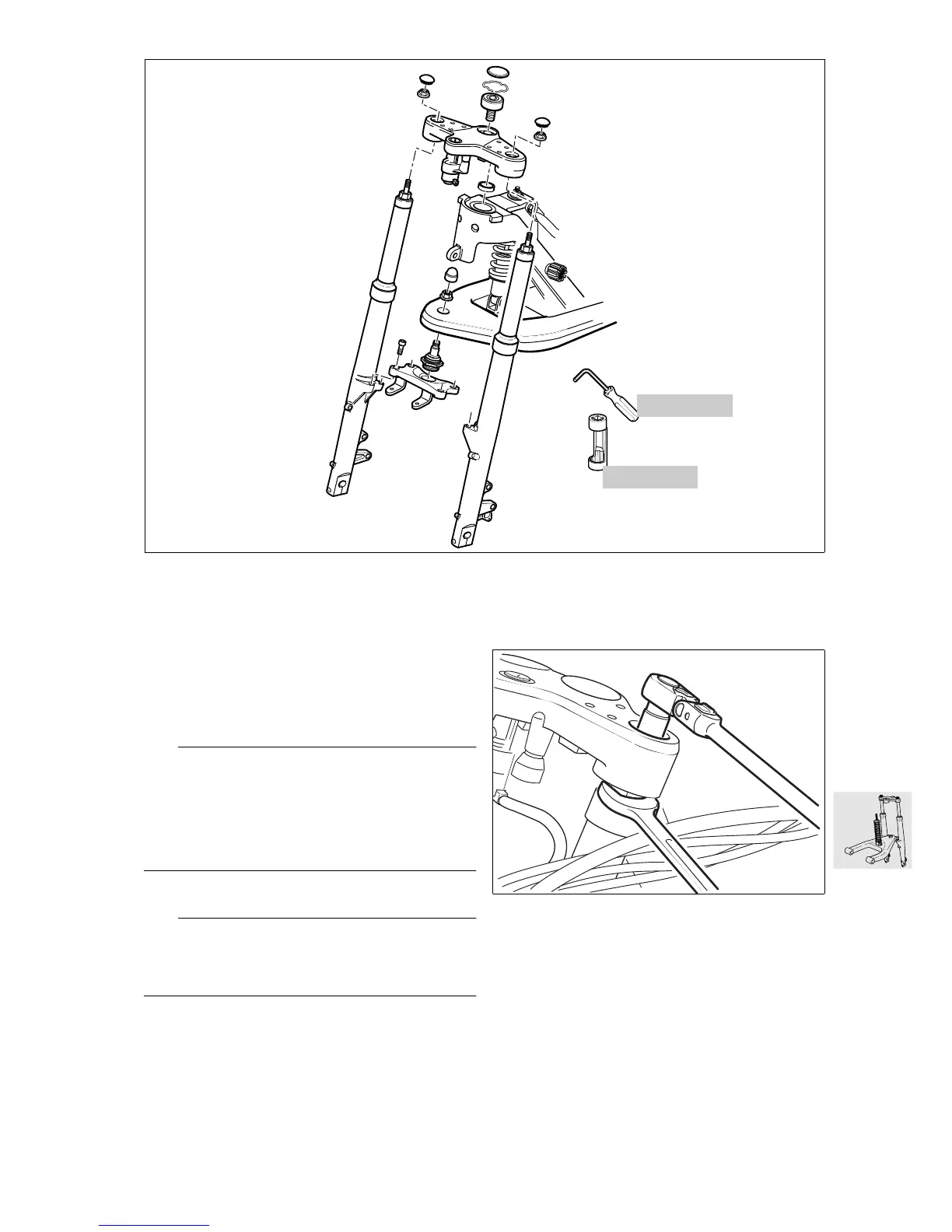

R22310010
31 5 603
31 5 601
R22310020
