21.9
•
Remove brake line (1) from the rear frame.
•
Remove rear brake fluid reservoir from its holder.
•
Loosen the fasteners securing the right and left
footrest plates.
•
Remove top screws of footrest plates on left and
right.
•
Remove rear screws of footrest plates on left and
right.
•
Remove rear-frame fasteners on left and right at
front, but only loosen strut fasteners.
•
Carefully lift rear frame approx. 15 mm
(approx. 0.5906 in).
•
Disconnect line from master cylinder.
•
Disconnect the lines from the clutch slave cylin-
der.
•
Remove clutch line.
•
Installation is the reverse of the removal proce-
dure.
L Note:
When installing, fit new sealing rings.
•
Fill the clutch operating system (a 00.54).
X Tightening torque:
Clutch line to handlebar fitting...................... 14 Nm
Clutch line to slave cylinder............................ 9 Nm
21 52 012
Removing and installing
clutch slave cylinder
•
Remove the seat.
•
Remove side panels (a 46.8).
e Attention:
Fuel is flammable and a hazard to health. Observe all
applicable safety regulations.
•
Remove fuel tank (a 16.5).
•
Remove screw from intake air pipe.
•
Remove rear silencer.
d Warning:
Integral ABS When removing and installing the
brake calipers, force back the pistons carefully to
ensure that the wheel-circuit reservoir does not
overflow.
If fluid escapes, proceed in accordance with “In-
structions for filling reservoir” (a 00.44).
•
Remove rear brake caliper.
•
Remove rear wheel.
•
Place support under rear wheel drive.
•
Remove spring strut.
e Attention:
Do not allow brake fluid to come into contact with
painted parts of the motorcycle - brake fluid de-
stroys paint.
•
Drain the clutch operating system.
•

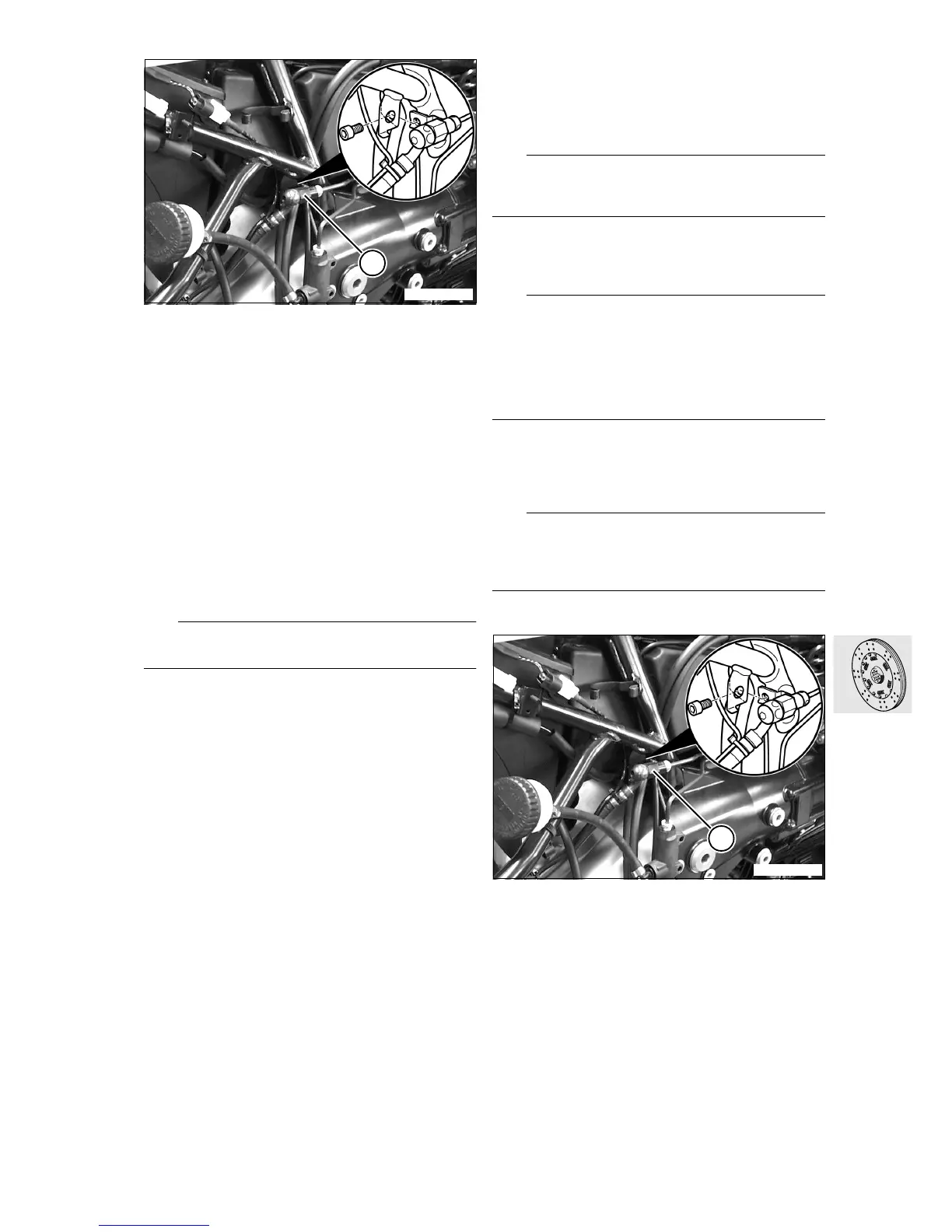

Remove brake line (1) from the rear frame.
R22210030
1
R22210030
1
