BMW R 1150 RT Repair Manual

11.25

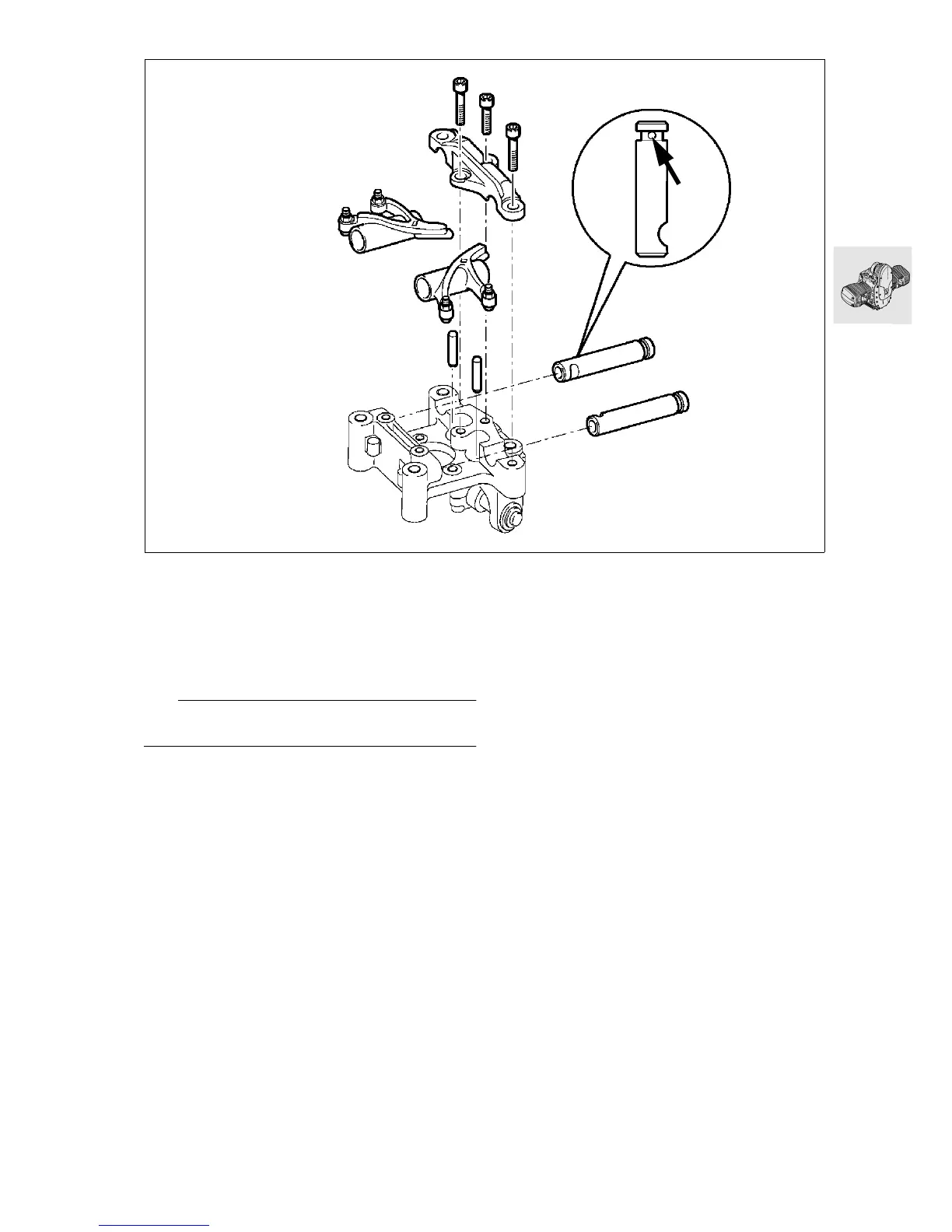

11 33 280 Disassembling and assem-
bling valve gear carrier
•
Remove bearing cap.
•
Insert a suitable pin into the bore (arrow) of the
rocker shaft, and turn the shaft back and forth to
remove it from its bearing.
e Attention:
Do not mix up the rocker shafts and pushrods.
•
Remove pushrods.
RS110080
M8 x 40
M8 x 40
M8 x 30

BMW R 1150 RT Specifications

General

Displacement	1130 cc
Transmission	5-speed
Final Drive	Shaft
Bore x Stroke	101 mm x 70.5 mm
Compression Ratio	10.3:1
ABS	Optional
Engine Type	Air/oil-cooled, four-stroke, Boxer twin
Power	95 hp at 7, 250 rpm
Torque	100 Nm at 5, 500 rpm
Dry Weight	259 kg
Front Suspension	Telelever
Rear Suspension	Paralever
Front Brakes	Dual disc
Rear Brakes	Single disc
Wheelbase	1485 mm (58.5 in)
