BMW R 1150 RT Repair Manual

34.31
34 51 Integral ABS

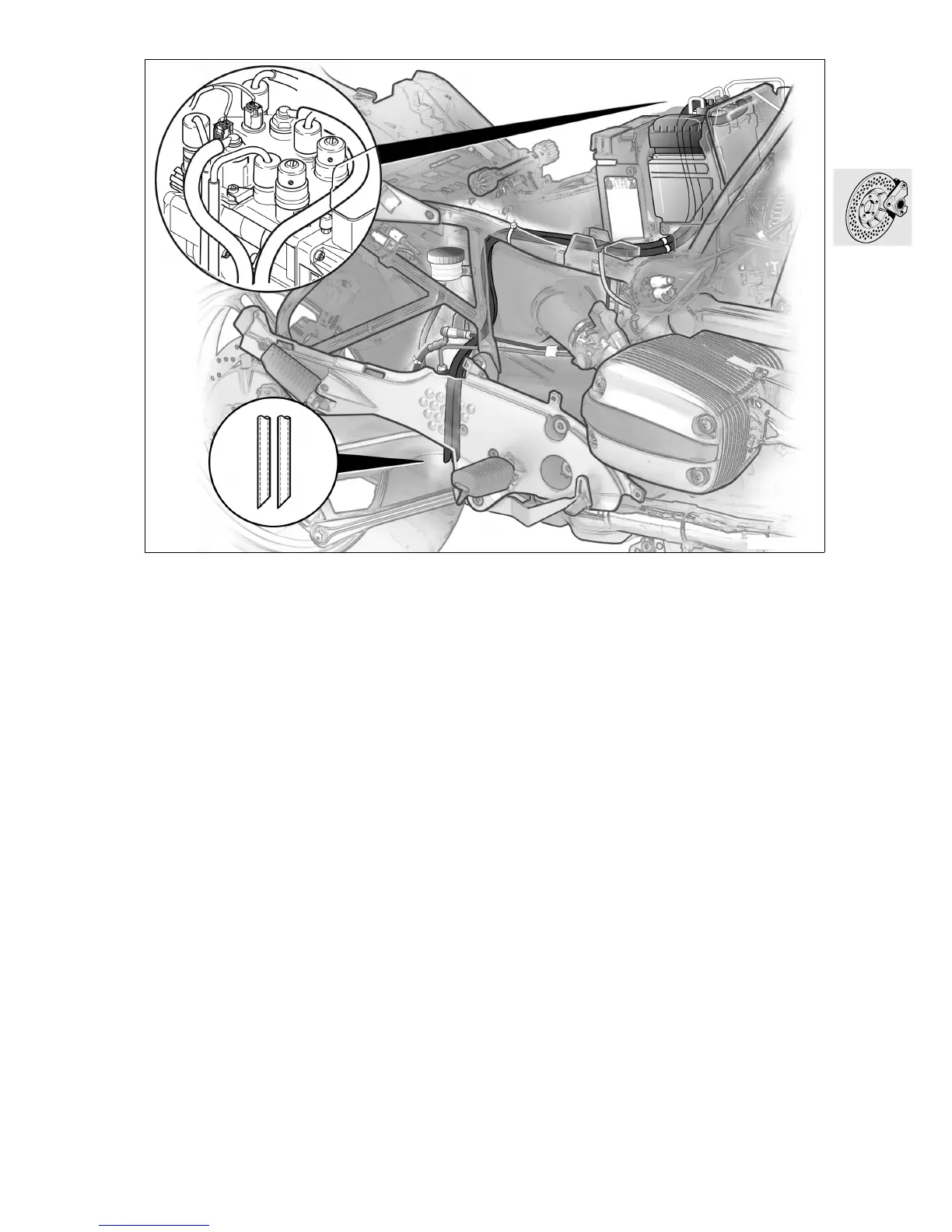

Removing and installing bleed lines,
wheel circuit reservoirs
•
Remove caps of wheel circuit reservoirs com-
plete with bleed lines.
•
Installation is the reverse of the removal proce-
dure. Pay particular attention to the following:
•
Make sure the bleed lines are free of kinks.
•
Cut the bleed lines to length if necessary, and cut
the ends at an angle.
R22340080

BMW R 1150 RT Specifications

General

Displacement	1130 cc
Transmission	5-speed
Final Drive	Shaft
Bore x Stroke	101 mm x 70.5 mm
Compression Ratio	10.3:1
ABS	Optional
Engine Type	Air/oil-cooled, four-stroke, Boxer twin
Power	95 hp at 7, 250 rpm
Torque	100 Nm at 5, 500 rpm
Dry Weight	259 kg
Front Suspension	Telelever
Rear Suspension	Paralever
Front Brakes	Dual disc
Rear Brakes	Single disc
Wheelbase	1485 mm (58.5 in)
