00.59
11 34 004 Checking/adjusting valve
clearances
(Inspections I, II and III)
•

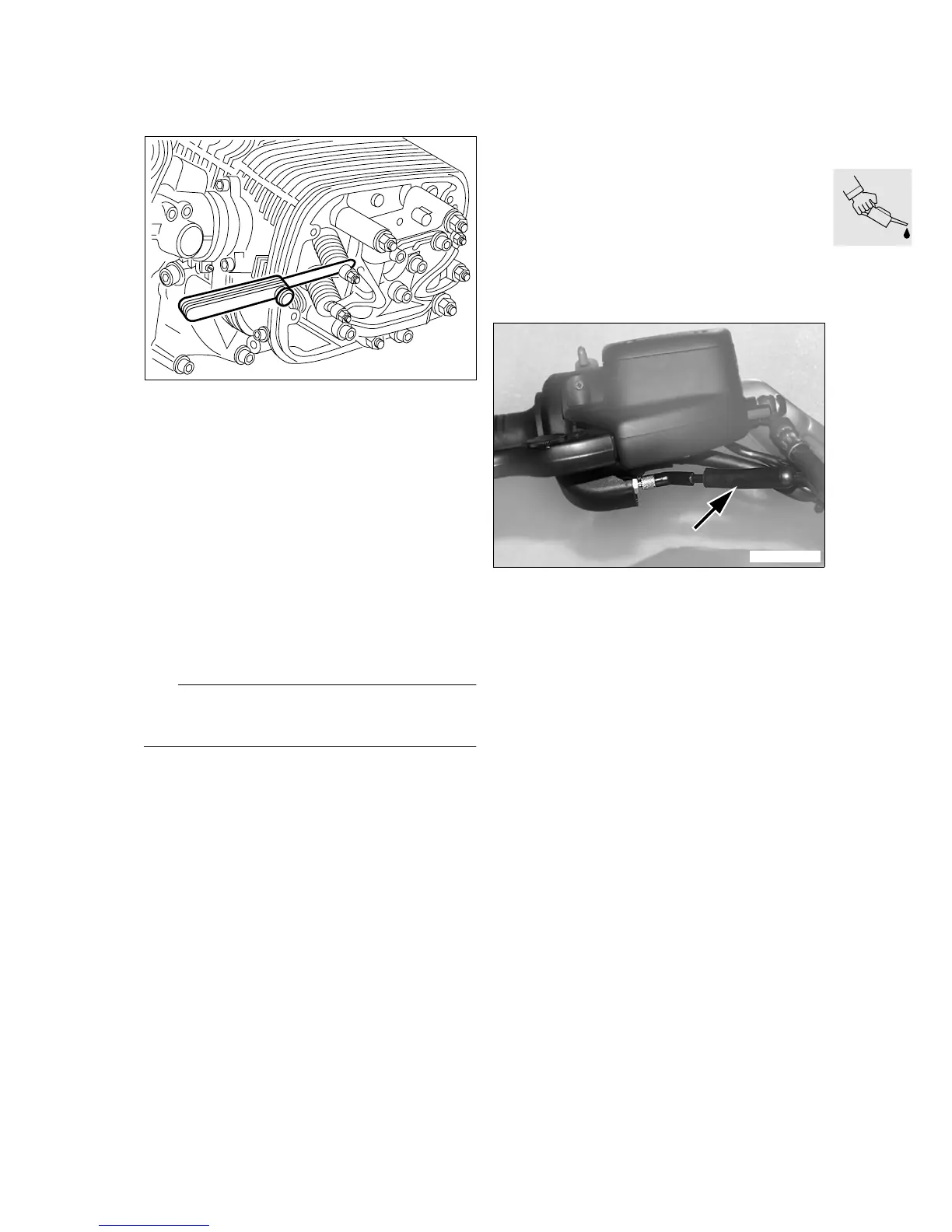

Check valve clearance with feeler gauge and, if
necessary, correct with adjusting screw.
Valve clearances with engine cold(max. 35 C/
95°F):
Inlet ......................................... 0.15 mm (0.0059 in)
Exhaust ................................... 0.30 mm (0.0118 in)
X Tightening torque:
Locknut.......................................................... 8 Nm
•
Recheck valve clearances after adjusting. Feeler
gauge must pull through between valve stem and
adjusting screw with slight resistance.
•
Assembly is the reverse of the disassembly
procedure.
e Attention:
Make sure that all seals are correctly seated. Seals
and sealing faces must be free from oil and grease.
X Tightening torque:
Cylinder head cover ....................................... 8 Nm
13 60 110
Checking freedom of throttle
cable, checking for chafing and
kinks, replacing if necessary Check-
ing throttle-cable play, checking
and adjusting idle speed and throt-
tle-valve synchronisation
(Inspections I, II and III)
•
Test-drive the motorcycle until the engine is
warm.
•
Remove the left side panel.
•
Remove the flap in the right side panel.
Oil temperature: ..................at least 90 C (194 F)
•
Push back rubber cap (arrow) on throttle and
choke cables.
•
Use the adjusting screws to adjust play of throttle
and choke cables.
Choke cable free travel:
........................................approx. 1 mm (0.0393 in)
Throttle cable free travel:
........................................approx. 1 mm (0.0393 in)
R21000340
R22000320
