BMW R 1150 RT Repair Manual

33.16
33 12 Checking and adjusting backlash
•

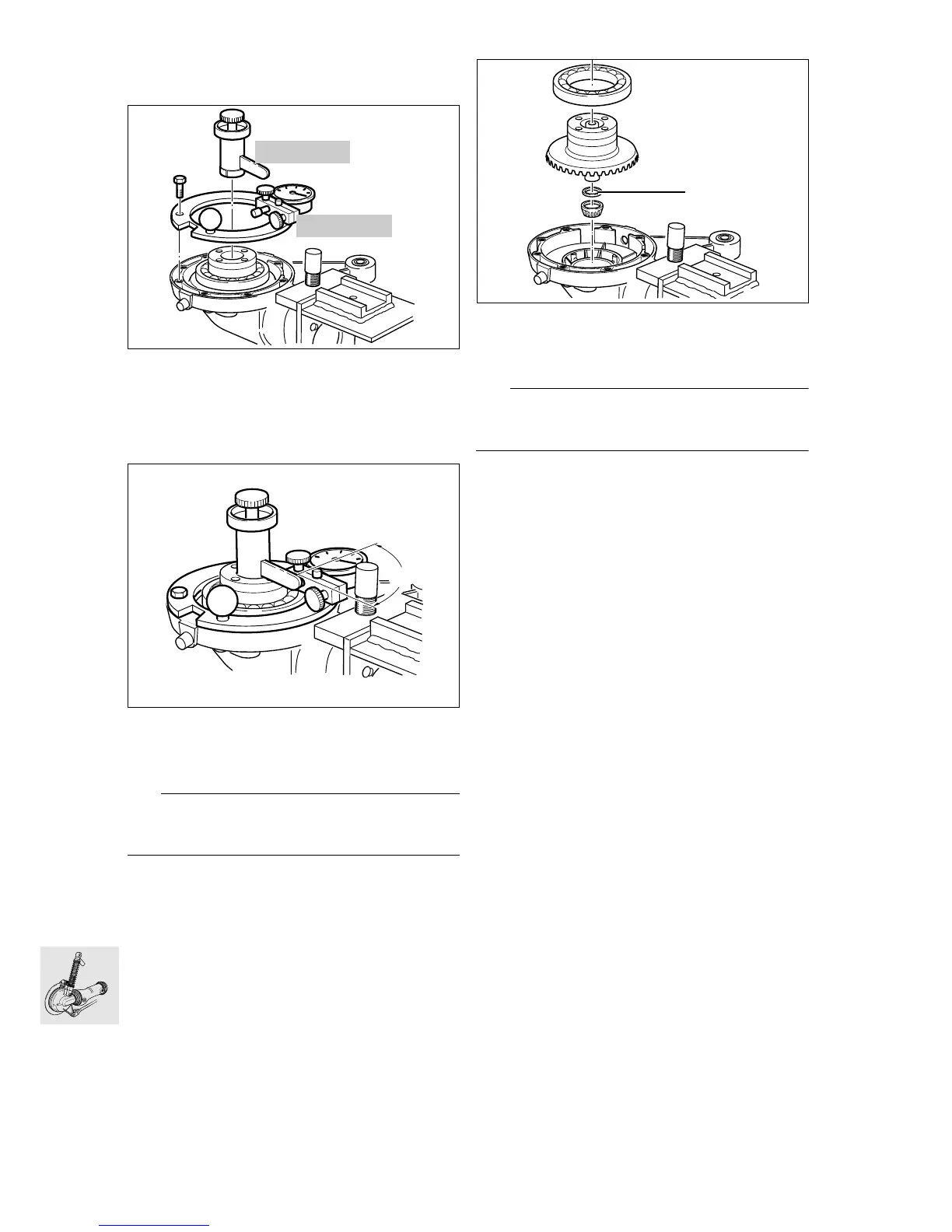

Secure measuring device, BMW No. 33 2 600,
with dial gauge to crown wheel and secure to
housing with the knurled screw.
•
Secure measuring arm, BMWNo.332603,
centrally to crown wheel.
•
Using the balls of your hands, press the crown
wheel into the housing and turn it to and fro to
check tooth backlash.
L Note:
Check tooth backlash at three points 120 degrees
apart; turn the bevel pinion with the crown wheel.
•
Compensate for excessive backlash by inserting
a thinner shim washer, and for insufficient back-
lash by inserting a thicker shim washer (1).
L Note:
Install spacer with bevel on inside diameter toward
crown wheel.
Backlash:
(Oil-free adjustment)
....................... 0.07...0.16 mm (0.0028...0.0063 in)
Preliminary tooth backlash
........................... 0.1...0.5 mm (0.0039...0.0197 in)
33 2 603
R21330130
33 2 600
90°
S3300120
S3300100
1
