BMW R 1150 RT Repair Manual

23.17
23 12
Disassembling and assembling
output shaft
Disassembling output shaft
e Attention:
To avoid damaging the needle roller bearing on the
splines of the shaft, spread it carefully at the end
face when removing.
•
Using universal puller, BMWNo.007500, pull
off grooved ball bearing (22) together with 1st
gear wheel (20).
•
Remove spacing washer (21), shift gearwheel for
1st gear (20), needle roller bearing (19) and
spacing washer (18).
•
Remove the sliding gearwheel for 5th gear (7).
•
Remove circlip (8), backup washer (9), shift gear-
wheel for 3rd gear (10) and needle roller
bearing (11).
•
Remove backup washer (12), 4th gear shift
wheel (13), needle roller bearing (14) and backup
washer (15).
•
Remove circlip (16) and sliding gearwheel for
6th gear (17).
•
Turn output shaft (6) other way round and clamp
into the vise with soft jaws.
•
Using universal puller, BMW No. 00 7 500, pull
off deep-groove ball bearing (1) together with
shift gearwheel for 2nd gear (4).
•
Remove shim washer (2), needle roller bearing
(3), shift gearwheel for 2nd gear (4) and thrust
washer (5).

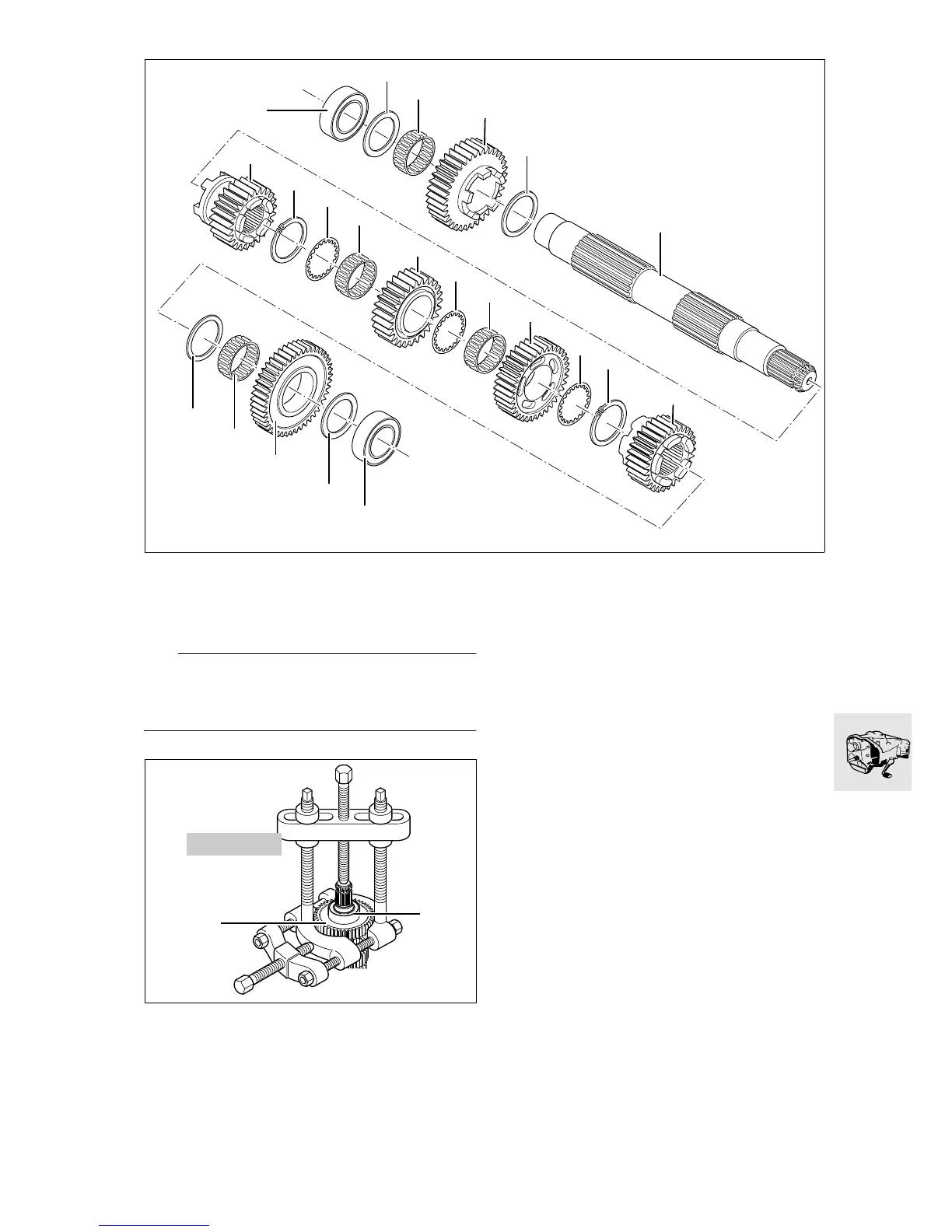

KR230100
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
2
1
00 7 500
KR230110
22
20
