BMW R 1150 RT Repair Manual

23.26

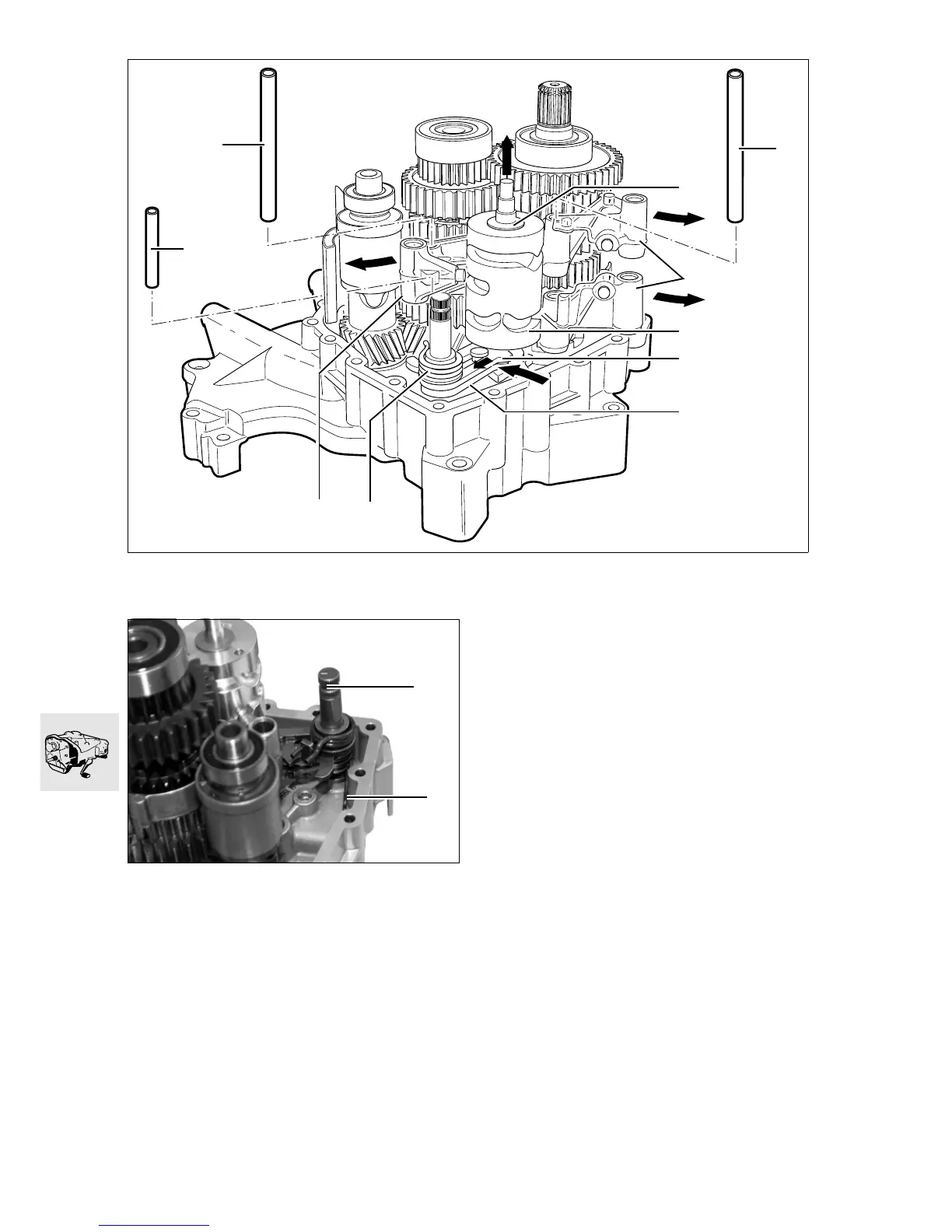

23 31 Installing selector shaft
•
Place a spacer of correct thickness on the hous-
ing.
•
Install selector shaft (1), making sure that
spring (2) is correctly positioned.
23 31
Installing selector drum
•
Place a spacing washer of the correct thickness
and the input-side thrust washer on selector
drum (6) and secure with a small amount of
grease.
•
Swing locking lever (8) toward the input shaft and
install the selector drum.
•
Swing locking lever (8) towards selector drum (6),
pull back guide plate (7) and engage it in the se-
lector drum.
•
Place shift forks (5, 10) in the guide tracks.
•
Install selector shafts (3).
•
Install torsion spring (9).
•
Install locking pin (11).
•
Place thrust washer (4) on the selector drum.
R21230130
2
1
R21230040
3
5
3
4
10
7
8
6
11
9
