00.24
Checking tyre pressures
•
Check/correct tyre pressures.
Tyre pressures:
one-up ................................. front 2.2 bar (31.9 psi)
........................................... rear 2.5 bar (36.26 psi)
two-up................................ front 2.5 bar (36.26 psi)
........................................... rear 2.9 bar (42.06 psi)
two-up + luggage............... front 2.5 bar (36.26 psi)
........................................... rear 2.9 bar (42.06 psi)
Checking tightness of rear wheel
studs
X Tightening torque:
Securing screws for rear wheel .................. 105 Nm

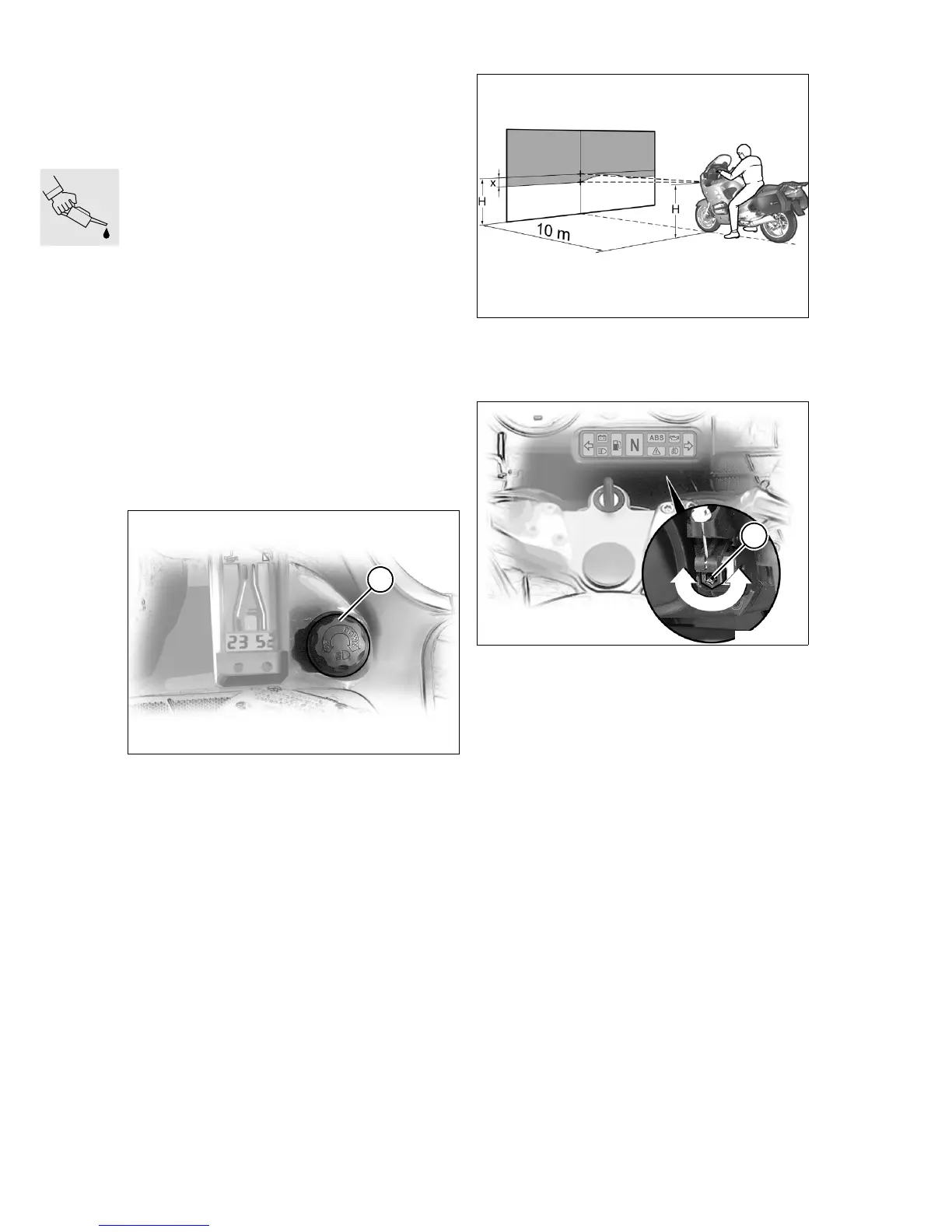

Checking headlight beam angle,
adjusting if necessary
•
Motorcycle on level surface.
•
Rider’s weight on motorcycle
(approx. 85 kg/approx. 187 lbs).
•
Turn knob (1) counter-clockwise as far as it
will go.
•
Check headlight beam throw.
Setting for headlight beam angle adjuster
X= ........-10 cm (-3.94 in) for 10 m (32.8 ft) distance
H=............................. Height to centre of headlamp
•
Turn screw (2) to adjust beam throw, if neces-
sary.
Direction of rotation, left.....................further/higher
Direction of rotation, right.................shorter/deeper
R22000090
1
R22000100
R22000110
2
