61 31 Relay positions/fuse assign-
ments (central electrical equipment
box)

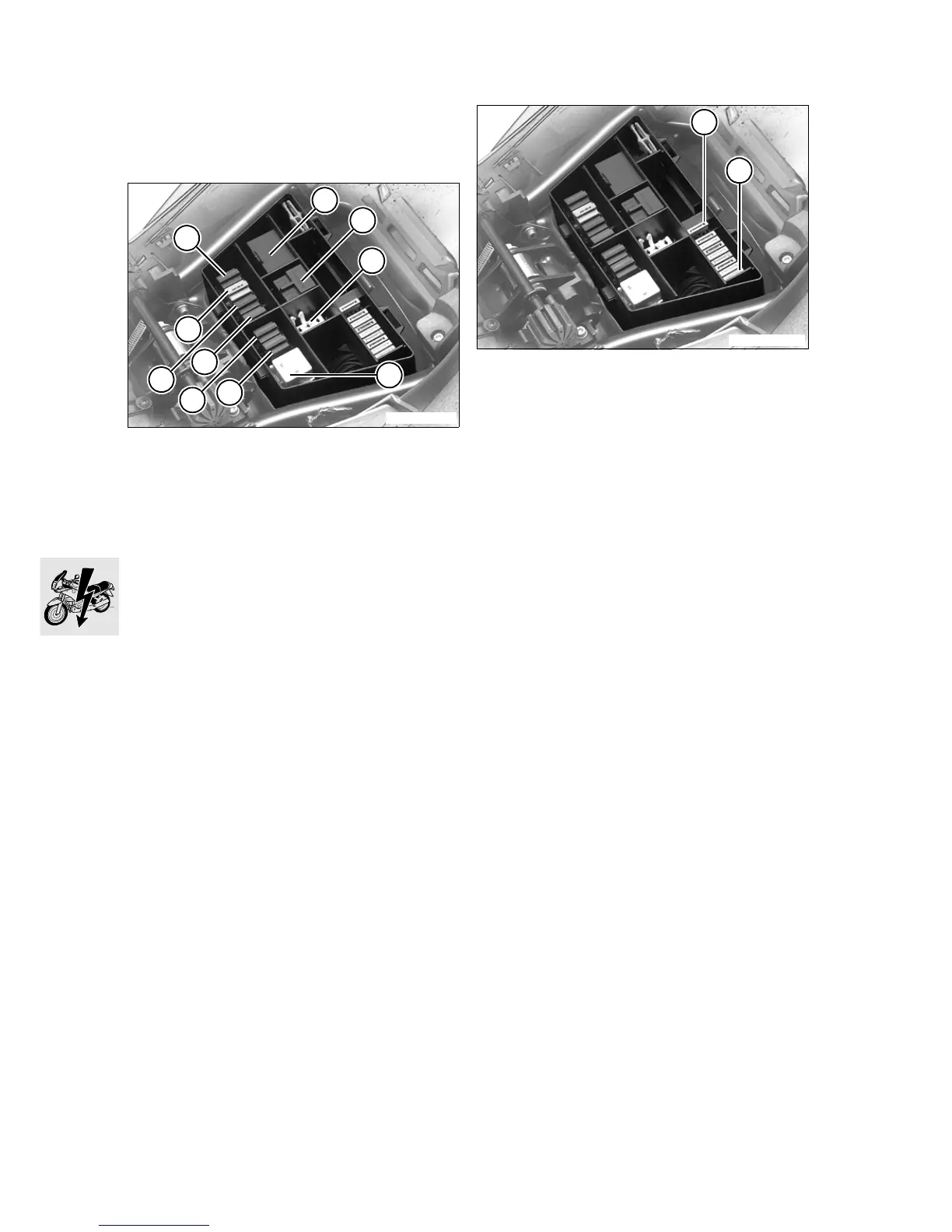

Relay positions
1. Flasher unit
2. Indicator damping
3. Coded plug for Motronic (not used)
4. Starter motor relay
5. Relief relay
6. Horn relay
7. Fuel pump relay
8. Motronic relay
9. ABS warning relay
10.Lighting relay
Fuse assignments
(No. 1 on left, looking forwards)
1. Instrument cluster (telltale lights, revolution
counter), indicator damping, windscreen
adjuster........................................................ 4 A
2. Parking light, tail light ................................... 4 A
3. Windscreen adjuster, power sockets 1 and 2,
FID, OE socket, radio................................. 15 A
4. Horn.......................................................... 7.5 A
5. Motronic control unit, Motronic relay,
diagnosis connector................................... 10 A
6. Fuel-pump relay (injection valves,
cycle valves, oxygen sensor)...................... 10 A
7. Heated handlebar grips................................ 4 A
8. Radio ........................................................... 4 A
9. Not used
10.Fog lamp relay............................................ 15 A
