BMW R 1150 RT Repair Manual

23.16

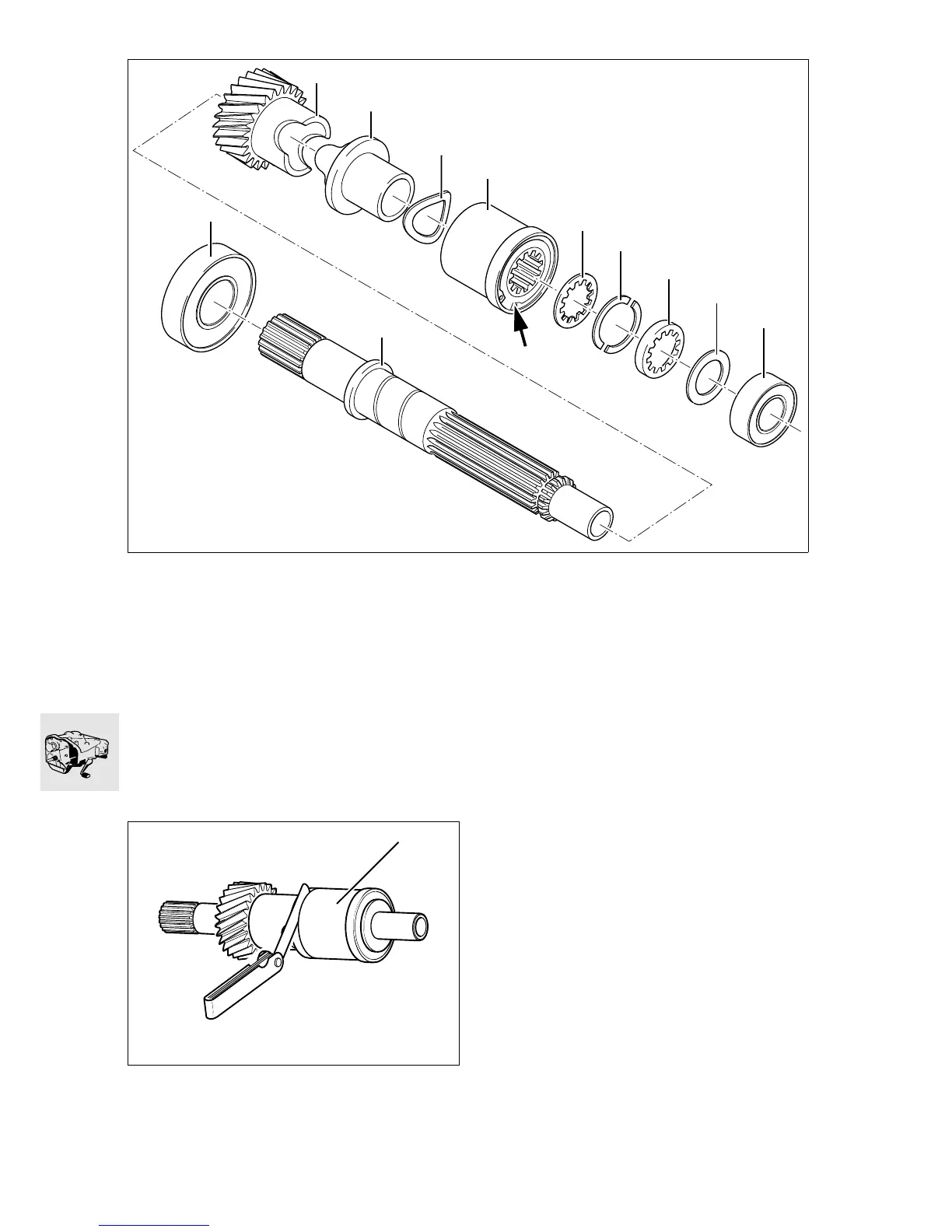

Assembling input shaft/checking and adjusting
end float of spring cluster
•
Lightly oil the bearing surface for constant-speed
gear (1) on input shaft (10), and install the con-
stant-speed gear.
•
Lightly oil the splines in thrust block (2) and install it.
•
Place anti-rattle disc (3) on thrust block (2).
•
Mount spring cluster (4) with locating ring (arrow)
facing upwards on anti-rattle disc (3).
•
Install spacer (5).
•
Compress spring cluster (4) and insert the keep-
ers (6) in the ring groove.
•
Install retaining ring (7) with the shoulder facing
over keepers (6).
•
Check endplay of spring cluster (4); correct if
necessary by installing spacer (5) of suitable
thickness.
•
Check the fully assembled length and adjust if
necessary (
a 23.22).
•
Place a spacing washer (8) of the correct thick-
ness in position and press grooved ball
bearing (9) into position.
Endplay:
Spring assembly on shaft
........................... 0.4…0.6 mm (0.0157...0.0236 in)
11
10
KR230081
9
8
7
6
5
4
3
2
1
R21230090
4
