11.43

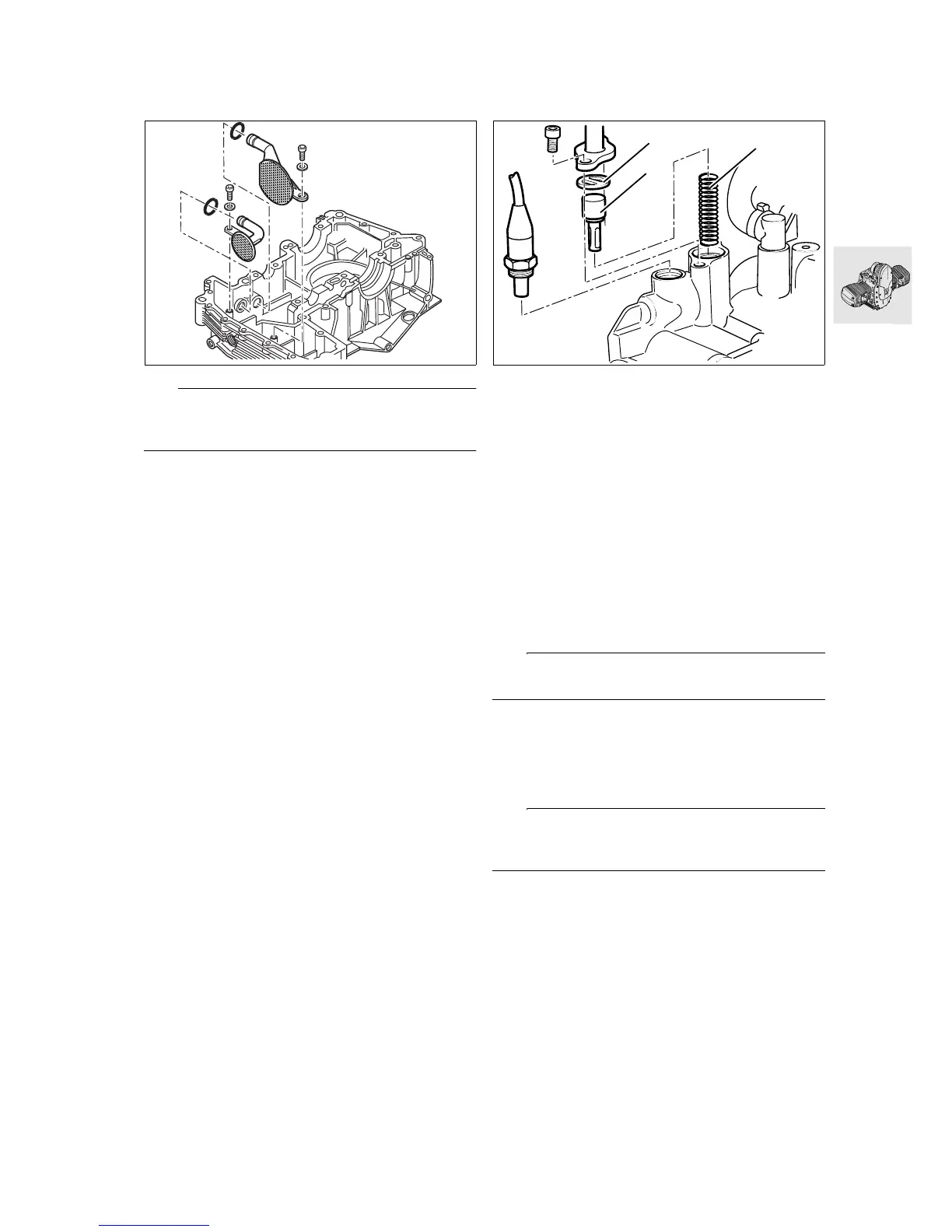

11 41 Removing and installing oil intake
strainers
e Attention:
Ensure that the O-ring is in position and that it is not
damaged.
X Tightening torque:
M 6 screw .................................................... 10 Nm
11 11 043
Replacing oil level sight glass
•
Pierce the plastic disc with a large screwdriver
and lever out the oil level sight glass.
•
Use thinners to remove all traces of oil from the
seating face of the sight glass.
•
Coat the sealing face of the new oil level sight
glass with tyre assembly paste and drive it in with
drift, BMW No. 00 5 550.
17 21
Removing and installing oil ther-
mostat
•
Remove screws securing oil cooler line to fairing
bracket.
•
Disconnect the oil cooler line fitting from the en-
gine casing.
•
Remove support plate (1), control element (2)
and spring (3).
•
Installation is the reverse of the removal proce-
dure.
X Tightening torque:
M 6 screw ...................................................... 9 Nm
11 24 043
Removing conrods
•
Clamp crankshaft in a vise with protective jaws.
e Attention:
Do not mix up the conrods.
•
Remove connecting rods.
11 24
Checking conrods
•
Check conrod dimensions (a 11.10).
e Attention:
Do not attempt to straighten the steel fracture-split
conrods – risk of breakage.
S110060 S110070
2
1
3
