21.7
Removing clutch from engine
•
Lock the clutch housing with special tool,
BMWNo.115640.
•
Remove the clutch.
21 21
Installing clutch

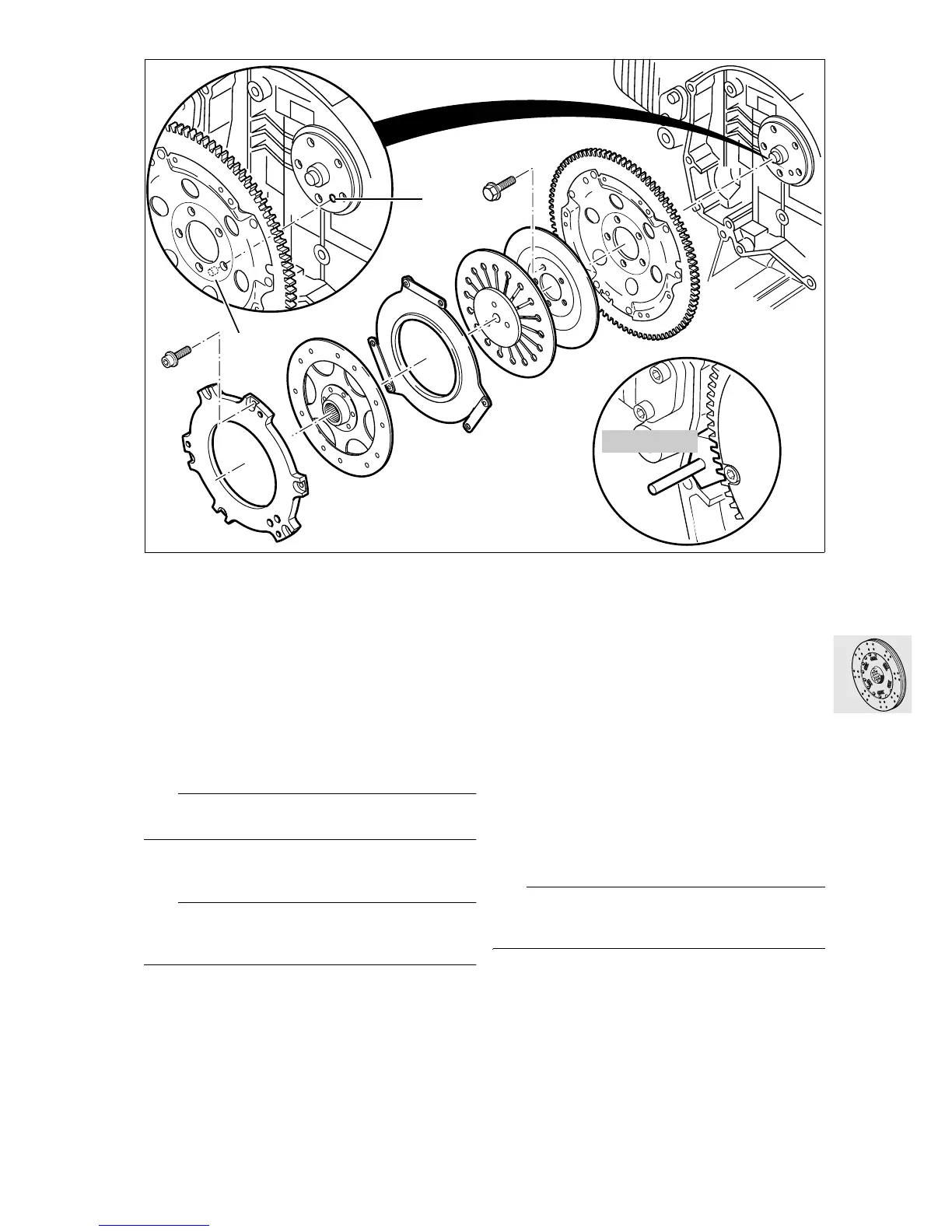

Installing clutch in engine
•
Install clutch housing with crankshaft pin (2) lo-
cated in bore (1).
•
Install locking device, BMW No. 11 5 640, to
lock clutch housing.
e Attention:
Always use new screws for housing and cover.
•
Insert all screws by hand and tighten.
•
Install clutch.
e Attention:
Make sure that colour marks on the clutch housing,
thrust plate and housing cover are offset 120°.
•
Secure the clutch with the retaining screws.
•
Centre clutch plate with centering pin,
BMWNo.212673.
•
Tighten retaining screws in diagonally opposite
sequence.
Lubrication points:
Splines on clutch plate and gearbox input shaft.
Diaphragm spring contact surface on clutch hous-
ing.
Diaphragm spring contact surface on pressure
plate.
...............................................Optimoly MP3 paste
X Tightening torque:
Clutch housing to crankshaft
(threads lightly oiled)
Initial torque ................................................. 40 Nm
Tightening angle................................................ 32°
Housing cover to flywheel ............................ 12 Nm
Installing clutch in vehicle
•
Installation is the reverse of the removal proce-
dure.
L Note:
When installing, fit a new seal on the clutch slave
cylinder.
S210011
2
1
11 5 640
