32.7

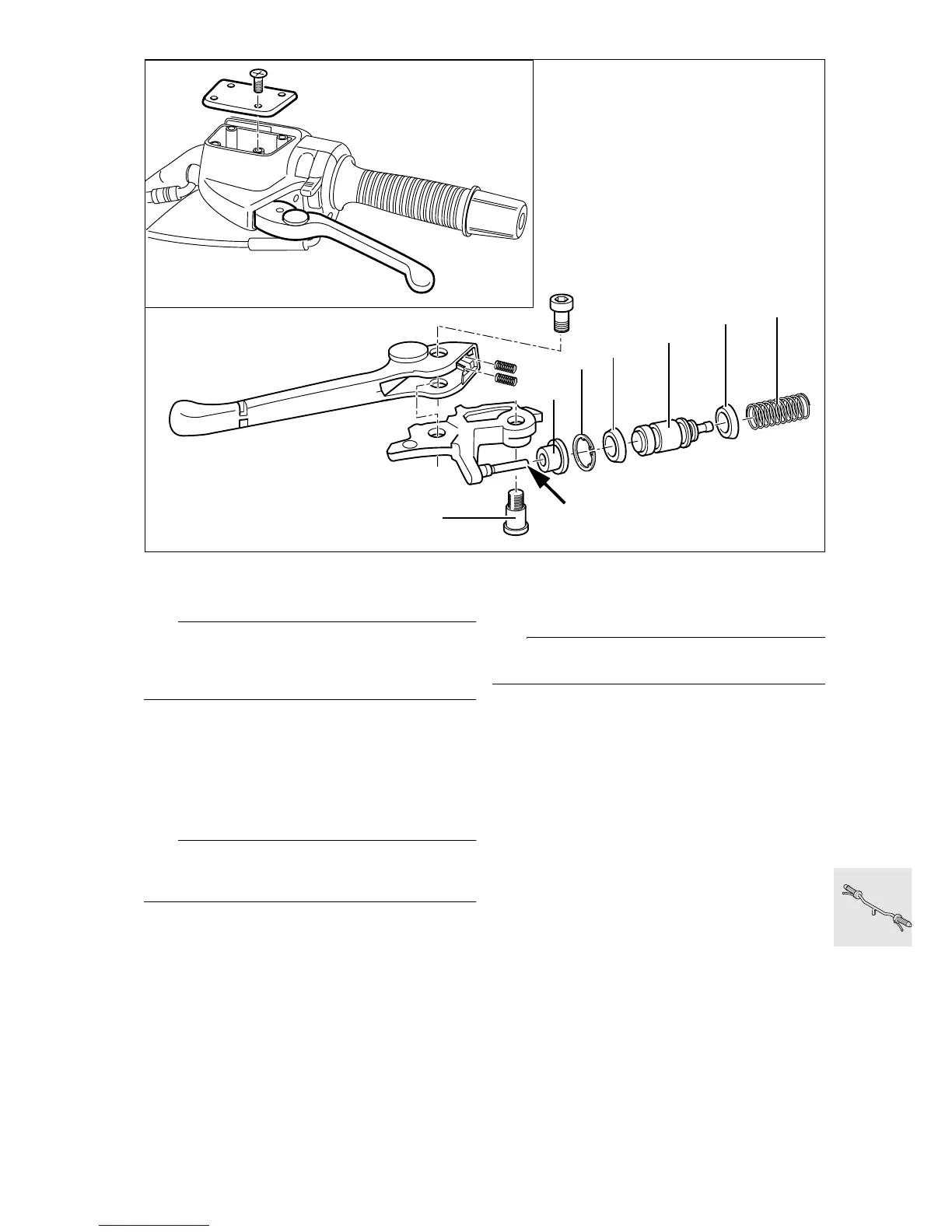

32 72 Removing and installing clutch
piston in handlebar fitting
e Attention:
Do not allow brake fluid to come into contact with
painted parts of the motorcycle - brake fluid de-
stroys paint.
•
Drain the clutch operating system (a 00.54).
•
Release the cable from the left handlebar.
•
[Radio] Release housing of handlebar remote-
control unit from grip unit.
•
Remove the lower section of the clutch lever fit-
ting.
•
Remove the handlebar weight.
e Attention:
[Heated grips] Make sure there is no tensile strain
on the cable of the heated grip.
•
[Heated grips] Release the grip and pull it slight-
ly out.
•
[Without heated grips] Remove grip.
•
Disengage Bowden cable for starting-speed in-
crease.
•
Release housing for starting speed increase from
grip unit, pull grip slightly out and turn it.
•
Remove pivot screw (1) of lever and remove the
lever.
•
Remove rubber boot (2).
e Attention:
Note that clutch piston (3) is spring-loaded.
•
Carefully press back clutch piston (3) using an
Allen key with T-bar handle, for example, and re-
move retaining ring (4).
•
Remove clutch piston (3) with spring (5).
R22320060
1
2
3
6
5
6
4
