00.20

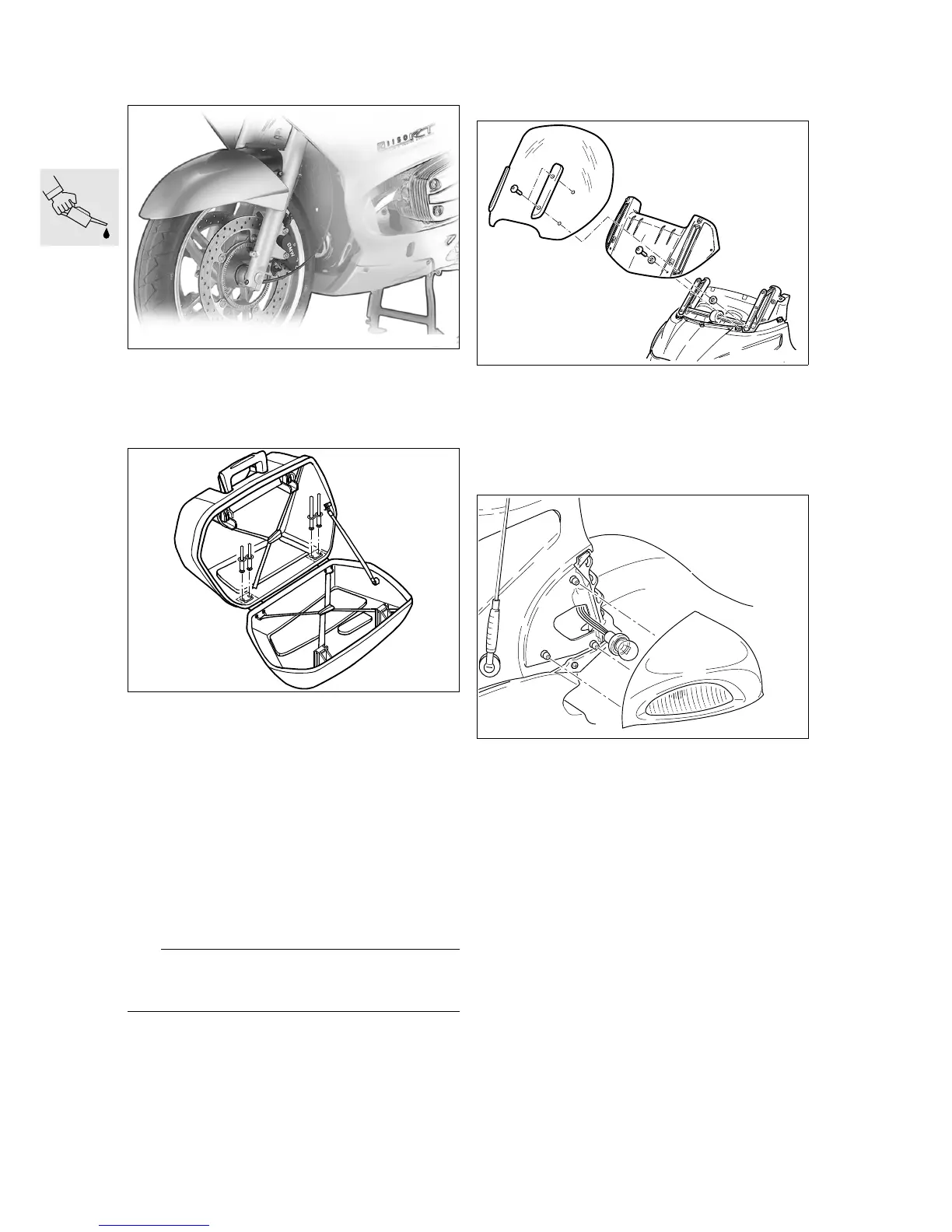

Installing front mudguard
Assembling case
•
Position the lid on the case for alignment. Open
the hinges of the lid and guide them into the base
with the guide hook.
•
From the inside, insert the pop rivets into the
base and the hinges.
– 2x long rivets in hinge at rear, as viewed in
forward direction of travel.
– 2x short rivets in hinge at front, as viewed in
forward direction of travel.
•
Engage riveting tool on rivets, hold the hinge at
the outside to keep it in position and secure all
four rivets.
•
Oil the seal in the bottom of the case, using the
sponge provided for the purpose.
e Attention:
Make sure that the seal is not squeezed out of
shape and that the lid closes without catching.
•
Carefully close the case.
•
Insert the lock cylinder into the case with the key
in the lock and turn the lock.
•
Affix the stickers.
Installing cover for windscreen
adjuster and installing windscreen
•
Install the cover for the windscreen adjuster.
•
Install windscreen with washers.
•
Install the aerial.
Installing mirrors
•
Connect the turn indicators.
•
Position the mirror at the 3 attachment points.
•
Engage by pressing at the front first, then
the rear.
R22000030
R22000070
R22000060
RT460280
