21.5
21 21 000 Removing and installing
clutch
21 21 Removing clutch
Removing clutch from vehicle
•
Remove the seat.
•
Remove side panels (a 46.8).
e Attention:
Fuel is flammable and a hazard to health. Observe all
applicable safety regulations.
•
Remove fuel tank (a 16.5).
•
Secure stand, BMW No. 00 1 520, to motorcycle
with spacers, BMWNo.001529.
•
Disconnect plug for air-temperature sensor from
air filter cover.
•
Remove air filter cover.
•
Remove the air filter element.
•
Remove the intake air pipe.
e Attention:
Disconnect the negative battery terminal first, then
the positive terminal. Connect the positive battery
terminal first, then the negative terminal.
•
Remove the battery.
•
Unfasten air filter box at front and rear.
•

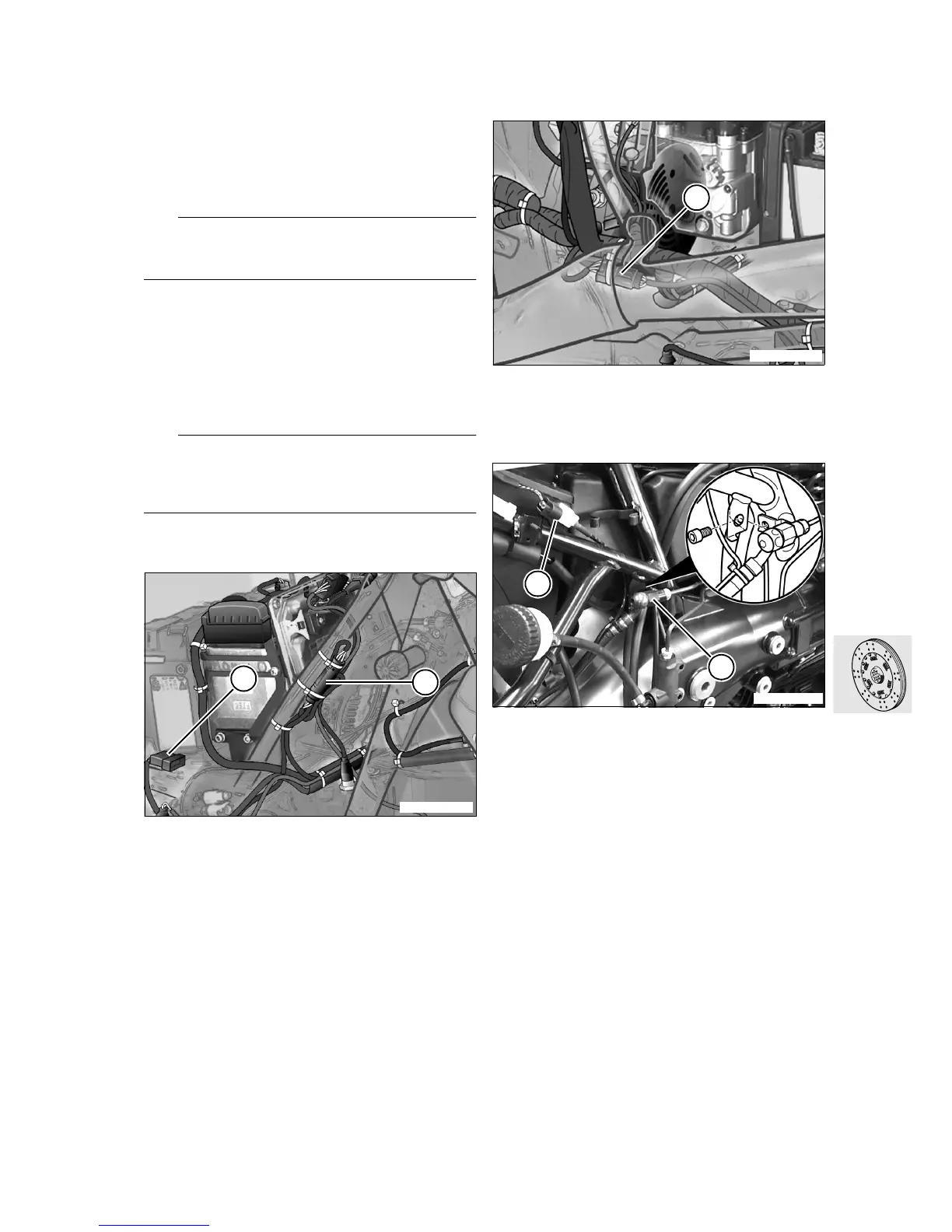

Disconnect plug for oxygen sensor (1) and re-
move cable.
•
Remove the plug/fuel pump unit (2) from the
frame.
•
Disconnect hose clamps/throttle stub pipes and
push the stubs into the air filter box.
•
Disconnect plugs of injection valves.
•
Remove holders of injection valves.
•
Remove injection valves from throttle stub pipes.
•
Remove top screw from spring strut and lower
the rear wheel drive.
•
Remove the left footrest plate (a 46.16).
•
Remove securing screws for brake master cylin-
der from footrest plate.
•
Remove the right footrest plate (a 46.17).
•
Remove rear-frame fasteners on left and right at
front, but only loosen strut fasteners.
•
Remove rear silencer.
•
Disconnect cables from starter motor.
•
Remove starter motor.
•
Disconnect gear-indicator plug (3) and remove
the cable.
•
Remove hydraulic spring adjuster.
•
Remove rear brake fluid reservoir from its holder.
•
Remove brake line (4) from the rear frame.
•
Remove brake line from swinging arm.
•
Disconnect plug (5) of the ABS sensor.
R22610030
1
2
R22210020
3
R22210030
4
5
