32.11
32 72 Removing and installing brake
piston in handlebar fitting
e Attention:
Do not allow brake fluid to come into contact with
painted parts of the motorcycle - brake fluid de-
stroys paint.
•
Integral ABS Drain front control circuit
(
a 34.19).
•
Remove throttle twistgrip cover.
•
Back off the adjuster screw for the throttle cable
and disengage the cable.
•
Remove guide of throttle cable.
•
Remove the lower section of the grip unit.
•
Release multi-function switch from grip unit.
•
Remove the handlebar weight.
•
[Heated grips] Release cable from right
handlebar.
e Attention:
[Heated grips] Make sure there is no tensile strain
on the cable of the heated grip.
•
[Heated grips] Turn throttle twistgrip all the way
forward and pull the grip slightly out.
•
[Without heated grips] Turn throttle twistgrip all
the way forward and remove.
•
Release throttle-cable relay from grip unit, pull
grip slightly out and turn it.
•

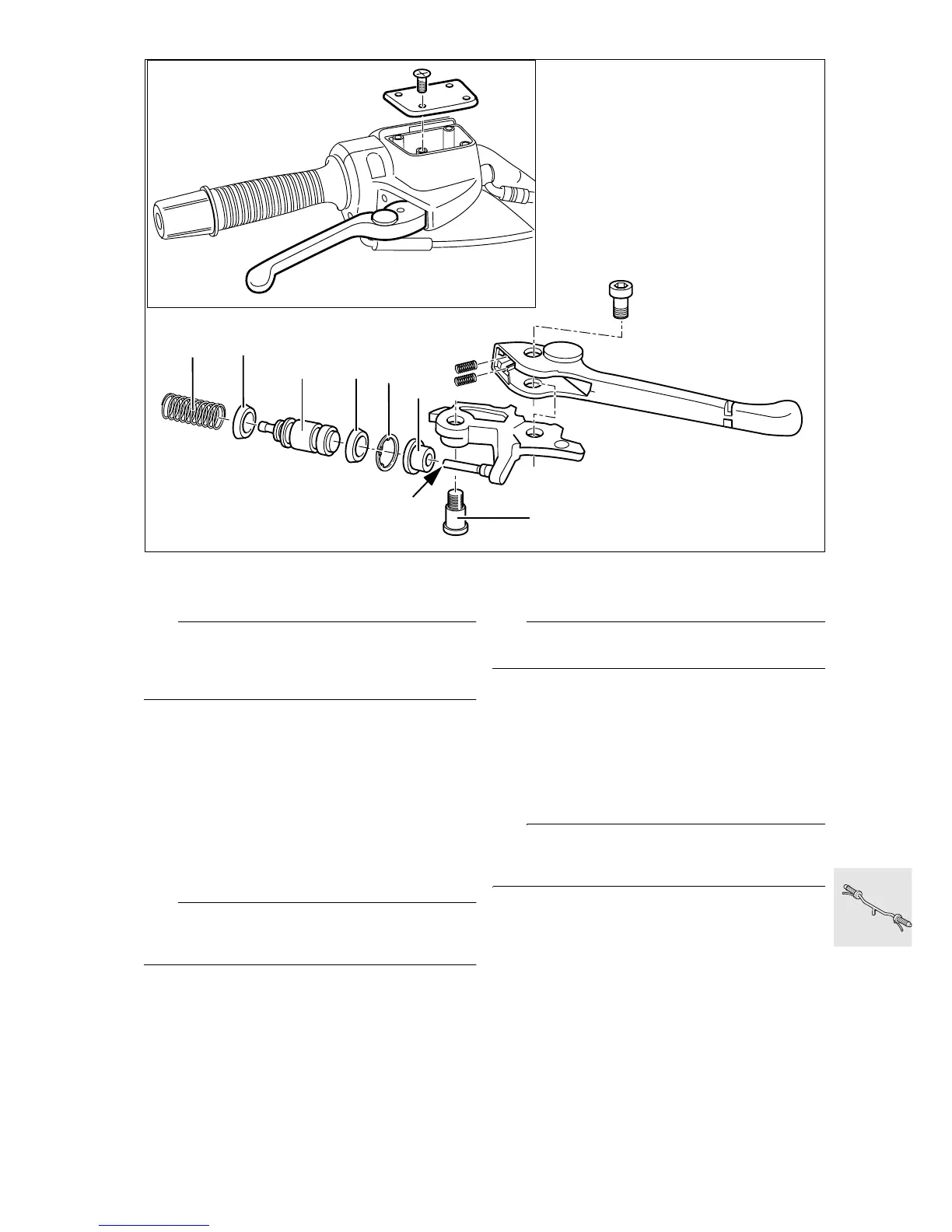

Remove pivot screw (1) for lever.
•
Remove rubber boot (2).
e Attention:
Note that brake piston (3) is spring-loaded.
•
Carefully press back brake piston (3) using an Al-
len key with T-bar handle, for example, and re-
move retaining ring (4).
•
Remove brake piston (3) with spring (5).
•
Installation is the reverse of the removal proce-
dure: pay particular attention to the following.
•
Prior to installation, coat the piston and the
boots (6) with brake fluid.
e Attention:
Sealing lips of the boots (6) toward the pressure
chamber.
R22320070
1
5
2
3
4
6
6
