Checking tightness of rear wheel
studs
(Inspection I)
•
Tighten the rear wheel studs with a torque
wrench.
X Tightening torque:
Securing screws for rear wheel .................. 105 Nm
Checking rear wheel bearing play by
tilting wheel
(Inspection III)
•
Tilt the rear wheel to and fro across its axle.
– If play is detected, fit new shims to rear wheel
drive or replace bearings (a 33.5).
Checking swinging arm bearings,
adjusting if necessary
(Inspections I and III)
•
Grip rear tyre and try to move it sideways, brac-
ing against the frame.
– If play is perceptible, remove fixed-bearing stud
and floating-bearing stud of the bearing in ques-
tion, clean the threads and reinstall (
a 33.20).
Checking function of side stand
contact switch
(Inspections I, II, III and IV)
•
Place the motorcycle on its centre stand.
•
Retract the side stand, if extended.
•
Disengage the clutch and select a gear.
•
Start the engine, without releasing the clutch le-
ver.
•
Extend the side stand.
L Note:
The side-stand switch is in correct working order if
the engine stops when the side stand is extended.
Greasing the side stand pivot
(Inspections I, II and III)
•
Check freedom of movement of side stand and
grease if necessary.
•

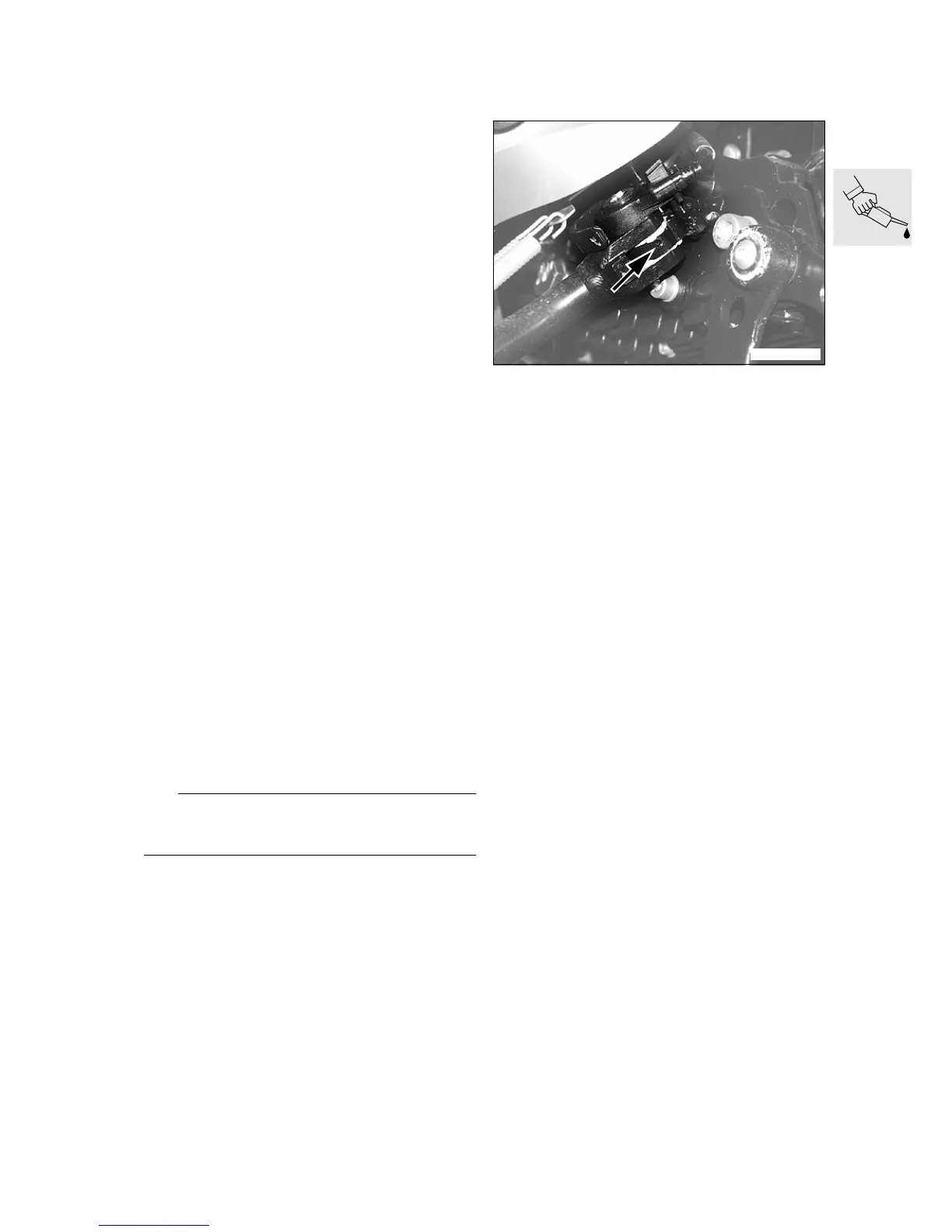

Grease pivot point (arrow).
Lubricant:
................................................... Shell Retinax EP2
R22000310
