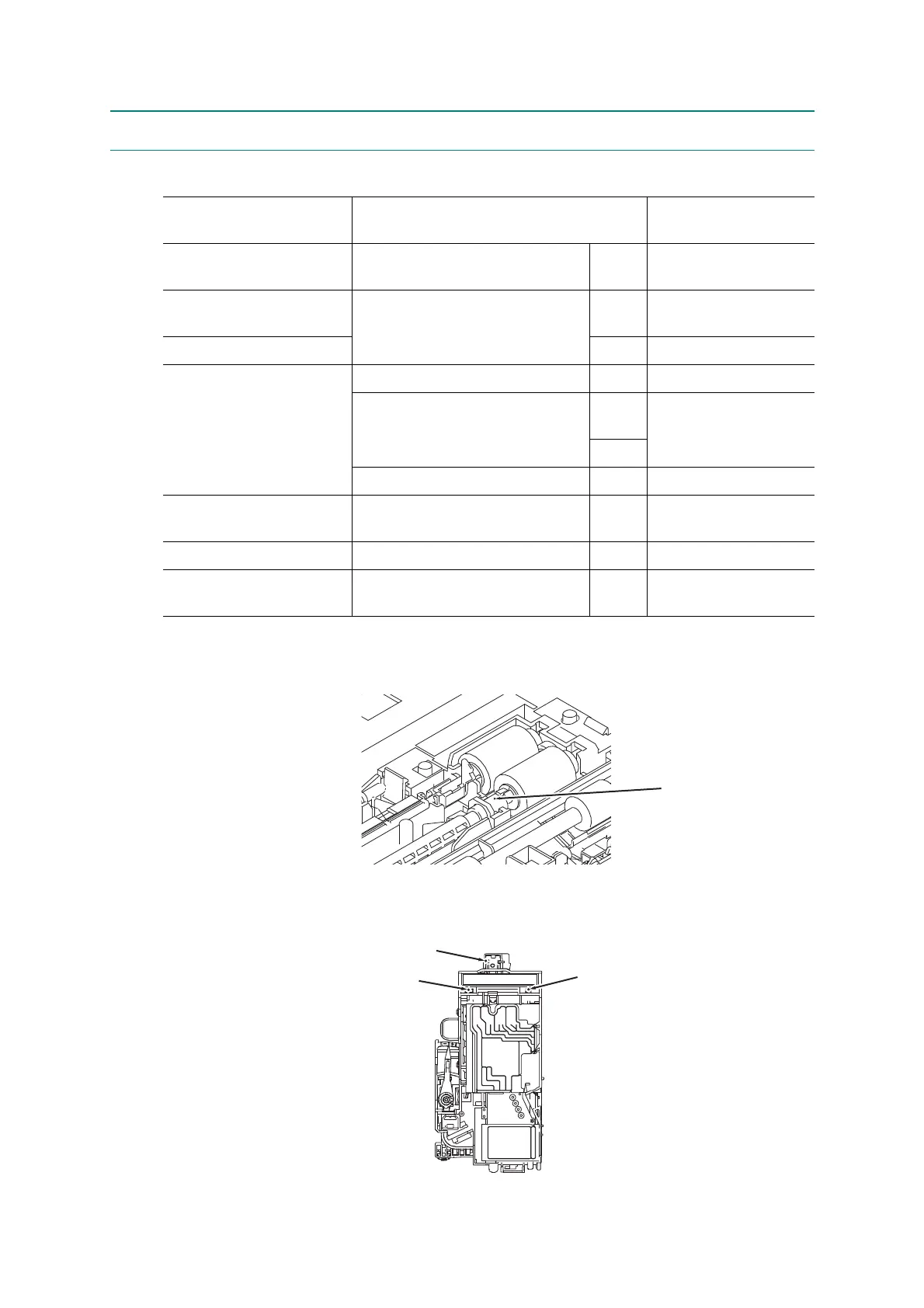

5 LUBRICATION
 Document separation roller gear
 Head/carriage unit
Lubricant type
(Manufacturer)
Lubrication points
Lubricant amount
per point
Molykote EM-30LP
(Dow Corning)
Document separation roller gear 1 2.0 mm diameter ball
FLOIL BG-1319
(Kanto Kasei)
Head/carriage unit 2 1.0 mm diameter ball
Permalub BAN-5 1 1.5 mm diameter ball
FLOIL BG1319
(Kanto Kasei)
CR frame (top face) 24 2.0 mm diameter ball
CR frame
(inner side of the rear upright edge)
30 2.0 mm diameter ball
(inner side of the front upright edge) 30
CR frame (bottom face) 2 1.0 mm diameter ball
Molykote EM-30LP
(Dow Corning)
Platen/paper ejection roller 4 1.0 mm diameter ball
Permalub BAN-5 Paper feed roller 2 2.0 mm diameter ball x 2
Molykote EM-30LP
(Dow Corning)
Paper pull-in rollers (T1/T2) 2 1.0 mm diameter ball
Apply grease here.
(3_114_E)
Apply grease here.
Apply grease here.
Apply grease here.
(3_115_E)
