3-67
Confidential

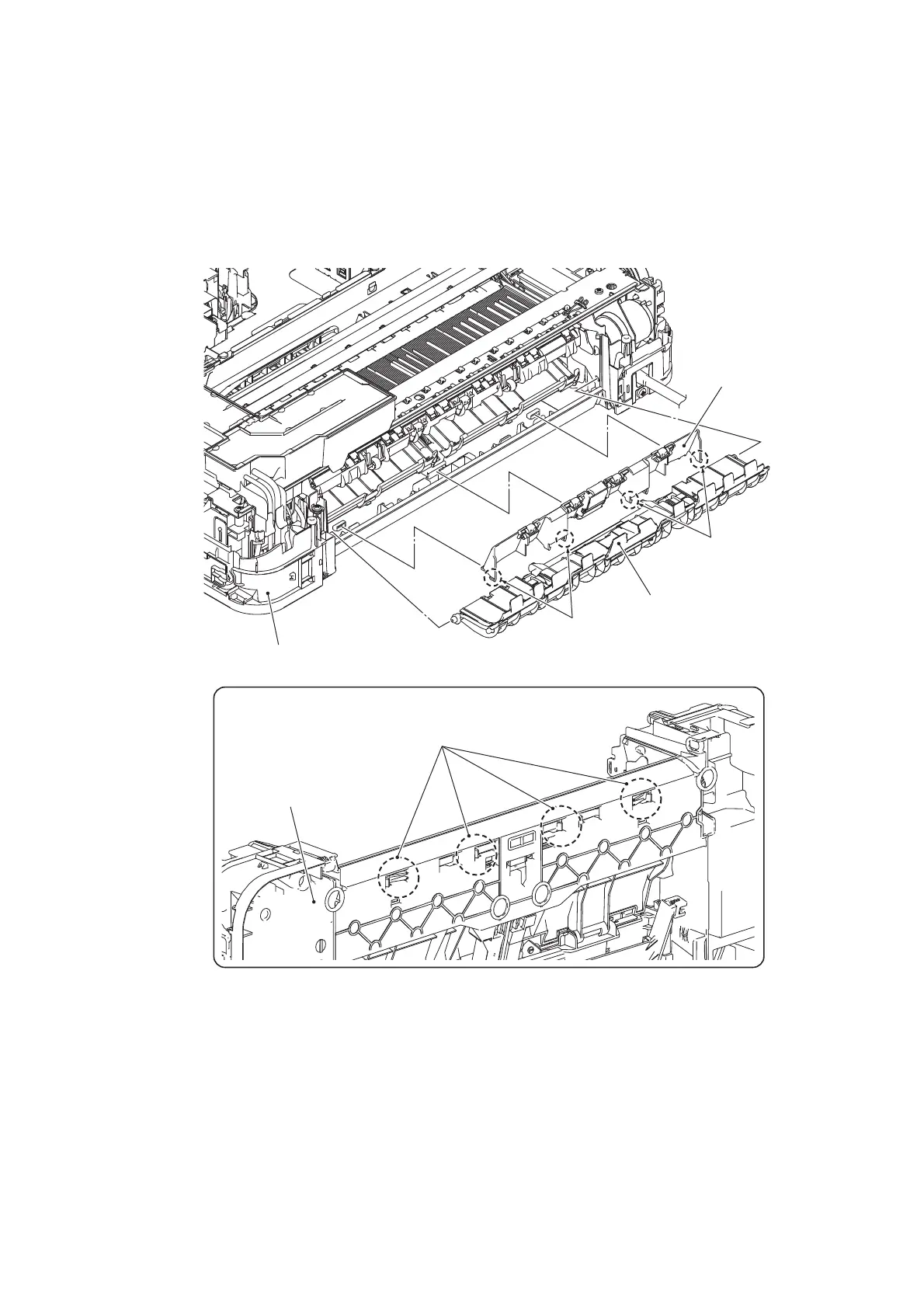

9.11 Bank ASSY
(1) Slightly warp the inside cover ASSY to release the bosses and remove the ASSY.
(2) Release the four hooks on the bottom of the bank ASSY.
(3) Slide off the bank ASSY to the rear.
Assembling Note: When mounting the bank ASSY, first insert the three front pawls and set the
four hooks into place.
Lower cover
Inside cover ASSY
Bank ASSY
Hooks
Lower cover
Hooks
Hooks
(3_043_E)
(Rear)
