3-71
Confidential
9.15 Control Panel ASSY

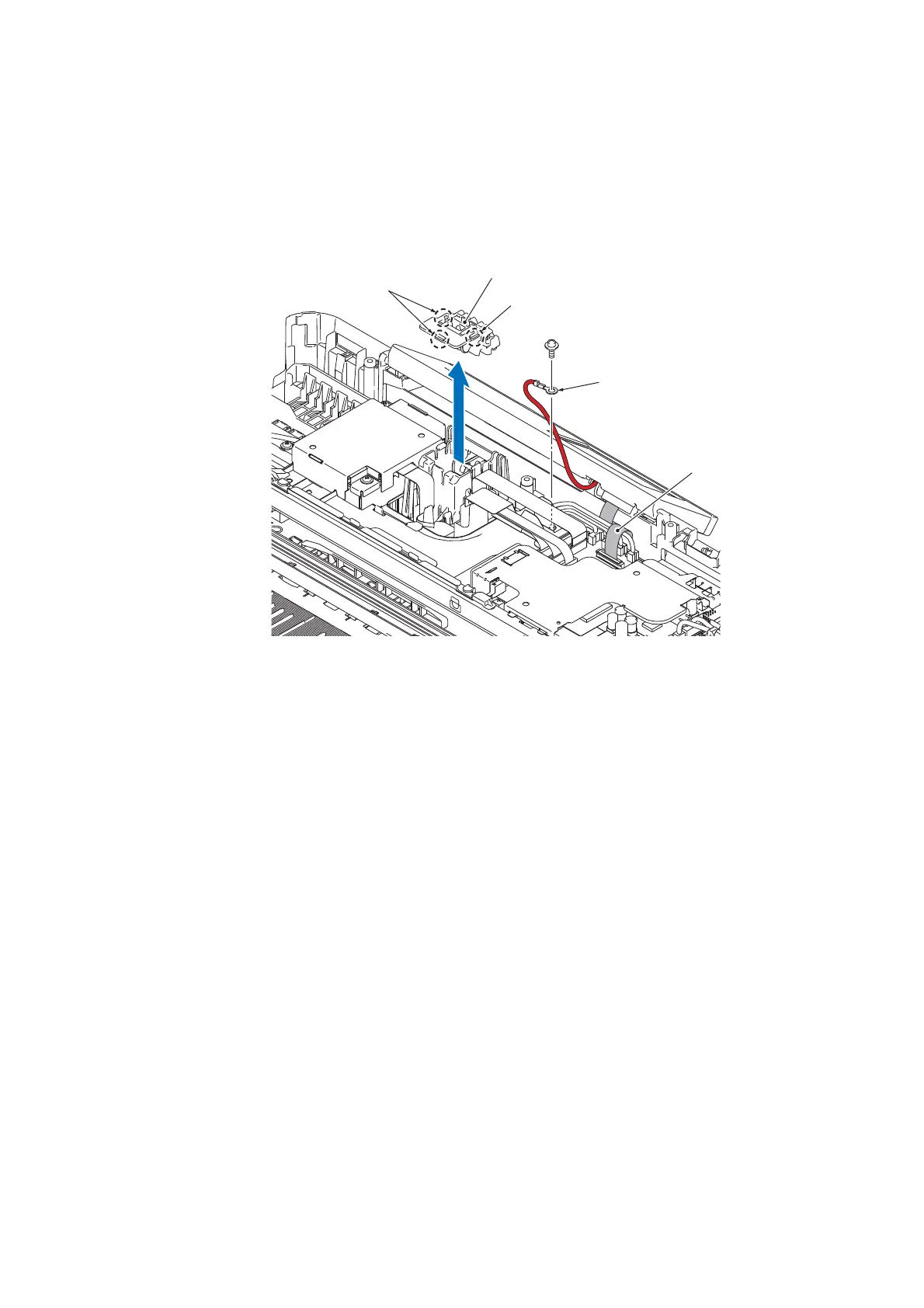

(1) Release the three hooks on the tilt hook stopper and remove the stopper.
(2) Remove the screw (TAPTITE CUP S M3x6) to release the panel grounding wire.
(3) Disconnect the panel flat cable.
TAPTITE CUP S M3 x 6
(Front)
Hooks
Hook
Tilt hook stopper
Panel flat cable
Panel grounding wire
(3_049_E)
